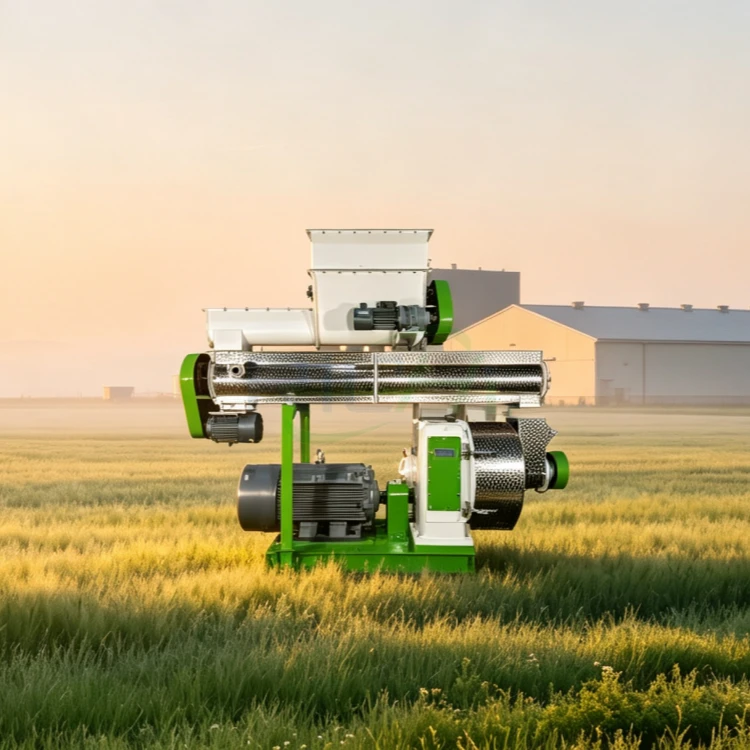

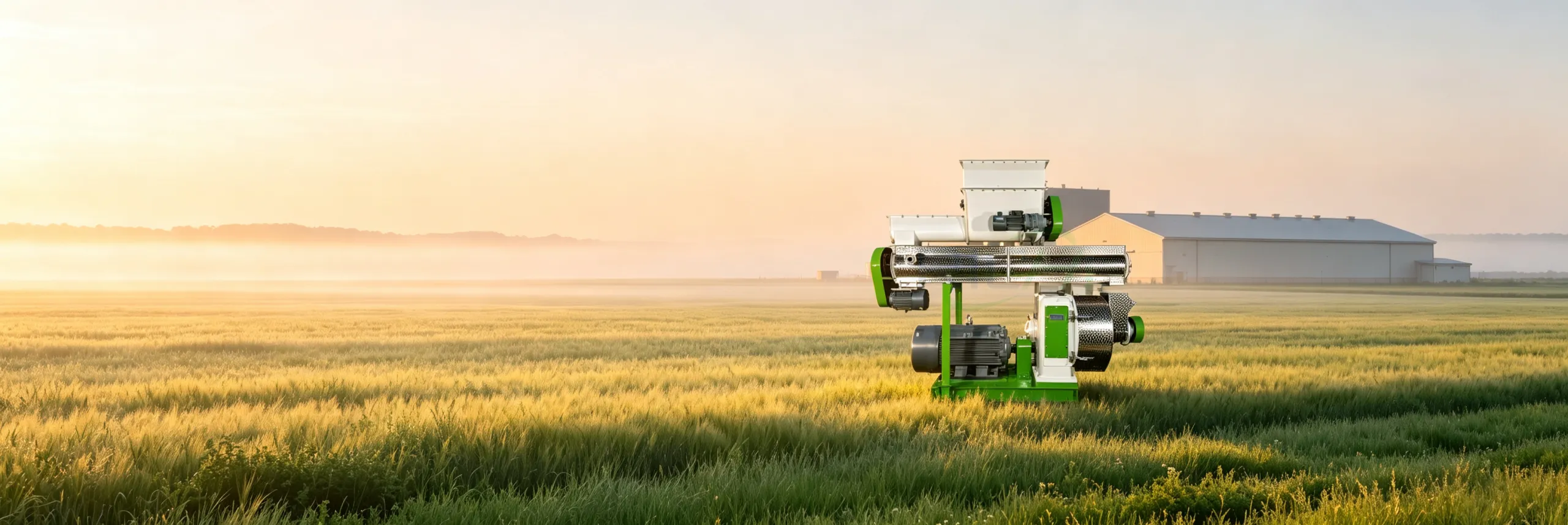

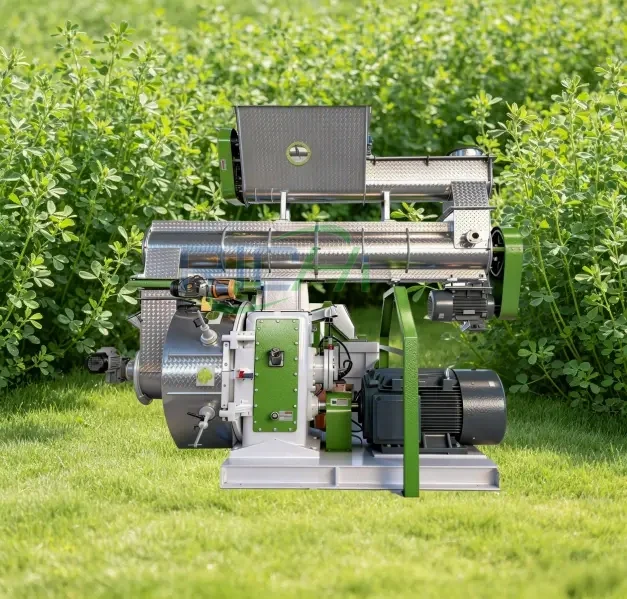

Lucerne Pellet Machine
Professional Lucerne Pelletizing Solution
Lucerne is a high-quality forage grass used in animal feed production. Conventional pelletizing often leads to equipment blockages, component wear, and unstable production capacity. Our lucerne pelletizer machine has been scientifically improved to consistently produce high-quality pellets.
This equipment can process a wide variety of lucerne materials, whether fresh or dried. With this machine, you can flexibly adjust your pelletizing formulations. It accommodates various ingredient ratios. Standard lucerne pellet sizes are 6 mm, 8 mm, and 10 mm. This lucerne pellet machine can produce lucerne pellets ranging from 4 to 12 mm.
It can produce a wide variety of feed types, including feed for livestock such as cattle, horses, and sheep, as well as specialized animal feed. If you need to produce biomass fuel or organic fertilizer pellets, this equipment is equally capable. It is suitable for farms, ranches, and feed plants of all sizes. We also provide complete lucerne pellet production equipment for the entire process, from raw material processing to pellet packaging.
lucerne pellets machine Model Selection
| Model | CZLH320 | CZLH350 | CZLH420 | CZLH520 | CZLH678 | CZLH768 |
| Main Motor Power (kW) | 22 | 37 | 90 | 132 | 200 | 250 |
| Arch-breaking Feeder Power (kW) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power (kW) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Inner Diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter (mm) | 4~12 | |||||
| Capacity (T/H) | 0.5-0.6 | 1.0-1.2 | 1.8-2.0 | 2.8-3.0 | 4-5 | 6-8 |
The above shows the standard production capacity models. We offer configurations with capacities ranging from 0.3 to 30.0 T/H to meet the needs of production operations of all scales. For higher capacity requirements, multiple lucerne pellet machines can be connected in parallel. In addition, we can provide customized equipment solutions tailored to your needs. Please feel free to contact us to obtain the optimal configuration parameters.

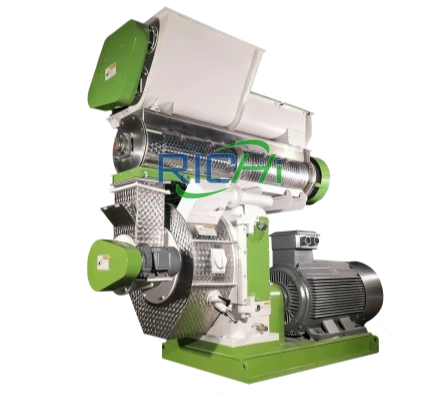

Design Highlights
This machine is equipped with anti-tangling and anti-clogging devices, which effectively improve production efficiency. Unlike biomass pellet mills, it features a conditioner that better matures the material and promotes pellet formation. It also optimizes feed digestibility.
Each lucerne pellet machine is equipped with a Siemens motor and sturdy SKF bearings, ensuring long-term, stable output. All components are made of wear-resistant materials, reducing operating costs.
Arch-Breaking Feeder
Inverter-controlled motor and multi-plate feed plate for flexible adjustment of feed speed.
conditioner
Made of 304L and featuring an embossed finish, it is suitable for high-temperature steam.
Forced Feeder
Push the accumulated material into the granulation chamber to improve pelletizing efficiency.
Pelletizing Chamber
The dual-roll system and clamp-type ring die ensure efficient compression and forming results.
ring die
Made of wear-resistant alloy steel, with a scientifically designed pore size to increase output.
Cutting Device
It adjusts the distance between the blade and the ring die to produce pellets of more lengths.
Lucerne Pellet Mill Operation
The video above shows the lucerne pelletizer during pre-commissioning and post-installation trial runs. It covers the entire process from raw material handling to the finished pellets. The machine delivers excellent pelletizing results and high efficiency. It plays a key role in various production line configurations, providing a high return on investment.
Applications of lucerne pellet machine
As an industrial-grade machine, this pellet mill offers high adaptability. It can pelletize pure lucerne or mixed forage. You can use it to produce feed pellets of various formulations or biomass fuel from mixed raw materials. It is suitable for a wide range of applications.
Processable raw Materials
In addition to lucerne, this equipment can be used to pelletize a variety of forage materials. Examples include oat straw, rye grass, timothy hay, and crop straw—all of which also have high fiber content. Beyond these common materials, it can also accommodate a wide range of high-fiber raw material formulations. It is worth noting that the optimal raw material size should be within 3–5 mm, with a moisture content between 15% and 18%. We can provide you with forage choppers and hay dryer machines.
Lucerne
Timothy Hay
Ryegrass
Fescue Grass
Clover Hay
Sudan Grass Hay
finished Pellet products
This equipment is highly flexible and easy to operate, capable of meeting independent production needs. Therefore, it can be used on ranches, farms, and other settings to produce grass feed pellets for on-site use, helping to reduce feed costs.
If you need to produce biomass pellets from alfalfa, we can provide a lucerne pellet mill without a conditioner. It also delivers powerful compression and a high formation rate. This equipment meets the needs of farms and biomass pellet plants.
Below are pellet products produced using this lucerne pellet machine. A single press can meet a variety of pelletizing needs. It is the ideal choice for your lucerne pelletizing solution.

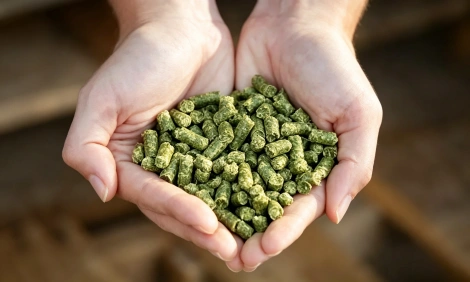

Lucerne Pellets
Oat Grass Pellets
Timothy Hay Pellets
Ryegrass Pellets
Clover Hay Pellets
Fescue Grass Pellets
Sudangrass Pellets
hemp Pellets
lucerne pellet production line
We offer not only pellet machines but also complete lucerne pellet production line. This solution can meet production capacity requirements ranging from 0.3 to 30 T/H and beyond. We provide customized equipment, tailored production processes, and turnkey solutions to meet the needs of scaled lucerne pellet production.
01
Crushing
High-fiber lucerne is difficult to pelletize directly. We offer a fine-crushing process. This process can incorporate a bale breaker and a hammer mill to crush the raw material to a particle size of 3–5 mm. This crushing process improves the pellet formation rate.
02
drying
The ideal moisture content of the raw material is approximately 15–18%. This process stage is used to dry fresh lucerne with high moisture content. We offer high-capacity hay dryer. It dries the lucerne through rotation and hot-air circulation, and the drying time is adjustable.
03
Pelletizing
The lucerne pellet machine conditions materials using high-temperature steam. It then produces dense, well-formed lucerne pellets using dual rollers and an innovative ring die. Pellet size can be adjusted by replacing the ring die or adjusting the blades.
04
Cooling
This step is used to rapidly cool the pellets in order to set their shape. Our cooling system ensures that the pellets are cooled without compromising their structural integrity. This facilitates packaging and transportation.
05
Screening
This section can screen three types of pellet product to meet requirements for different pellet sizes. The excess material removed during screening can undergo secondary pelletization, thereby reducing costs.
06
Packaging
It is suitable for rapid pellet weighing and packaging requirements. Our highly automated packaging scales will reduce your labor costs and pellet loss while ensuring consistent packaging quality.
Global CASES
We provide advanced pelletizing machines and production solutions to lucerne pellet manufacturers worldwide. Below is an overview of projects involving this machine. These include customized solutions and turnkey production line projects. We have extensive global service experience. Please feel free to share your production needs with us.

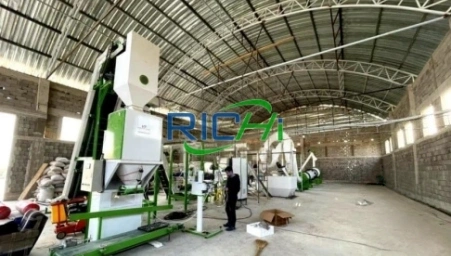

2-3 T/H lucerne pellet machine for sale Uzbekistan
We supplied feed production equipment to a large livestock farm. The solution included a pellet mill and other production units. Since the lucerne had a high moisture content, a small drying drum was installed. This lucerne grass pellet machine produces 6-8 mm lucerne pellets, reducing feed costs.

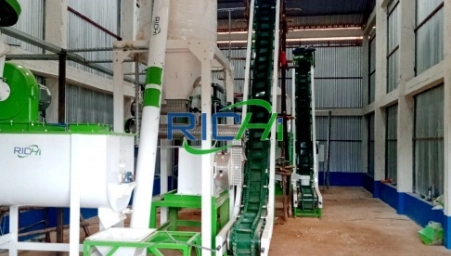

3–4 T/H lucerne pellet making machine for sale Argentina
This was a turnkey project for an lucerne pellet plant designed to produce grass pellets in multiple sizes. The mill was equipped with ring dies of two different sizes. Since the raw material consisted of baled forage, we supplied a bale breaker and a crusher. The resulting pellets are of high quality.

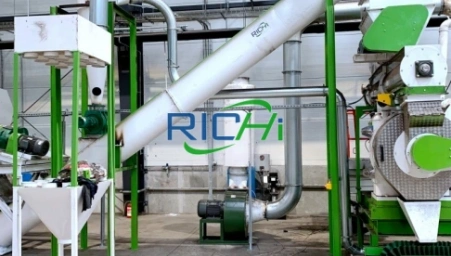

3 T/H lucerne pellet mill for sale to Saudi Arabia
As a large-scale dairy farm, the customer optimizes feeding results by importing lucerne. Due to storage difficulties and high costs, pelletizing is the optimal choice. This equipment helps the customer produce dense, palatable lucerne feed pellets, further improving their feeding outcomes.

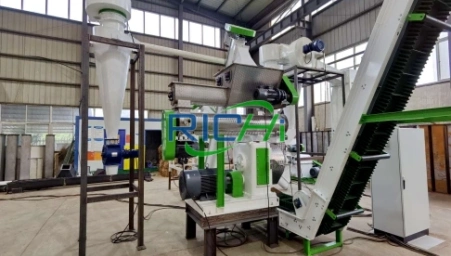

2–3 T/H lucerne pellets machine for sale to Canada
The client processes timothy grass and lucerne as raw materials. They can be crushed and pelletized to produce mixed forage pellets. This production line provides the client with a high return on investment. The resulting forage pellets are highly sought after by horse farms and ruminant farmers.

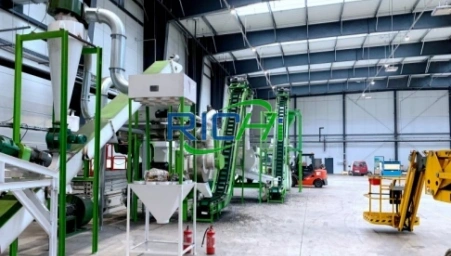

4 T/H lucerne pellet press machine for sale Australia
The client is a grass pellet plant producing high-quality lucerne pellets for export. We provided a grass pellet production line, which helps the customer optimize pellet production and increase export sales. The customer also uses it to produce other forage products, achieving comprehensive utilization.

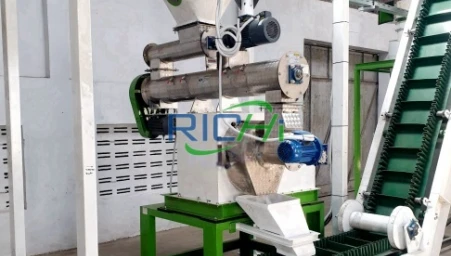

1–2 T/H lucerne pellet machine for sale New Zealand
Our client is an integrated ranch that needs to produce feed for its own dairy cows and sheep. This pelletizer is equipped with differ ring dies to meet different feeding needs. It also accommodates the client’s customized pellet formulations, enabling the production of low-cost, high-quality feed.
Other Related Equipment
We offer a complete range of lucerne pellet production equipment, including crushing, drying, mixing, pelletizing, cooling, screening, and packaging systems. These systems play a critical role in specific stages of the production line. We provide customized solutions to enable flexible production configurations. Below is a showcase of our most commonly used models.
raw material hammer mill
This machine can grind grass and straw raw materials. Using high-hardness hammer blades, it reduces the material to a powder with a particle size of 3–5 mm. It supports custom screen mesh sizes ranging from 0.5 to 20 mm.
raw material drum dryer
This dryer features a two or three layers drum design. It achieves rapid and uniform drying of materials through the supply of hot air and the rotation of the drums. The drying time is adjustable, making it suitable for raw materials with varying moisture content and different drying standards.
raw material mixing Machine
This equipment is suitable for mixing powdered, flaked, granular, and viscous materials. It is commonly used in the pre-pelleting stage to uniformly blend feed materials, ensuring that each pellet has a balanced nutritional profile.
feed pellet Cooling Machine
The principle of operation involves cooling pellets through convection with cold air. Its octagonal structure prevents pellet damage. Smooth discharge is achieved via a slide-gate discharge chute. It is typically used in conjunction with a vibrating screen.
Other pellet machines
As a leading pellet equipment manufacturer, we have extensive production experience. Similar to our lucerne pellet machine, we offer a wide range of pellet machines. These cover production areas such as biomass, feed, organic fertilizer, and animal bedding. Click below to learn more, or feel free to contact us at any time.
alfalfa pellet machine for sale
It efficiently pelletizes alfalfa to produce feed rich in dietary fiber, meeting the nutritional needs of animals.
hay pellet machine for sale
This machine can pelletize various types of hay, including grass and straw, for use as animal feed or fuel.
miscanthus pellet mill
This pelletizer uses a high-strength dual-roll system to compress sugarcane bagasse into high-quality pellets.
rice straw pellet machine
It can efficiently pelletize ground rice straw powder, producing high-quality feed or fuel pellets.
wheat straw pellet machine
This machine processes wheat straw and other straw-based materials to produce feed or fuel pellets.
corn stalk Pellet Machine
It can pelletize pure corn stalk powder or blended raw materials to produce high-calorific-value fuel or feed.
Why Choose RICHI?
We provide industrial-grade pellet production solutions and one-stop services.
RICHI Machinery established since 1995, and we have consistently dedicated ourselves to providing customers with optimal pelletizing solutions. We prioritize customer satisfaction, delivering the best possible service.
Because of extensive customer service expertise, we deeply understand your production requirements. Therefore, we offer comprehensive pre-sales and after-sales support to safeguard your lucerne pellet production operations.
The comprehensive pre-sales service includes free consultations on lucerne pellet machine. Our sales team is always available online to provide answers. We also provide attentive after-sales service, which includes the following specific services:
Long-Term Warranty
Every machine sold by RICHI comes with a one-year quality guarantee and fast shipping. For any quality issues arising during this period, you will receive prompt responses and proper resolutions.
Spare Parts Supply
We have also established a global spare parts supply network. Built upon a global system of warehouses, this network ensures the rapid shipment and timely replacement of your worn parts.
Technical Support
Beyond dedicated equipment manuals and instructional videos, we also offer installation and operational training for production line equipment, along with ongoing online technical guidance.
Frequently Asked Questions
Based on our experience serving customers worldwide, we have compiled the following answers regarding this lucerne pellet machine. These include information on the equipment’s suitability, configuration options, and selection recommendations. If you have any questions about this pelletizer, please feel free to contact us at any time.
What processing is required for lucerne before enters the lucerne pellet mill?
+
To achieve optimal pelletizing results, lucerne must meet appropriate particle size and moisture content requirements. The ideal particle size is within 3–5 mm, and the moisture content should be around 15–18%.
Lucerne that does not meet these standards is prone to issues such as difficulty in forming pellets, equipment clogging, and poor product quality. Therefore, fresh lucerne must undergo crushing and drying before pelletizing.
Why use the lucerne pellets machine to produce pellets?
+
This equipment is a ring-die pellet mill that delivers higher output per unit and reduces production costs per unit. Pelletized lucerne is easy to package, transport, and store. For livestock farmers, it reduces feed costs and optimizes feeding results. For pellet manufacturers, it increases product value, enhances product quality, and improves return on investment.
Which countries and regions is the lucerne pellet machine suitable for?
+
This equipment can be used in countries and regions worldwide, particularly those rich in lucerne and other forage resources. Customers for this equipment are primarily from Australia, New Zealand, Argentina, Canada, the United States, and other regions. They include livestock farms, forage processors, and forage pellet manufacturers.
How to make lucerne pellets?
+
Before pelletizing, lucerne must be ground to the appropriate size and dried to the correct moisture content. Properly processed lucerne powder can be compressed into uniformly sized pellets using a high-efficiency pelletizer.
The pellets emerge from the pelletizer at a high temperature. Subsequent cooling stabilizes their structure and makes them easier to store. If standardization of the pellets is a priority, it is recommended to include screening and packaging stages in the production line. These steps ensure consistent pellet specifications and enable standardized weighing and packaging. (View YouTube)
