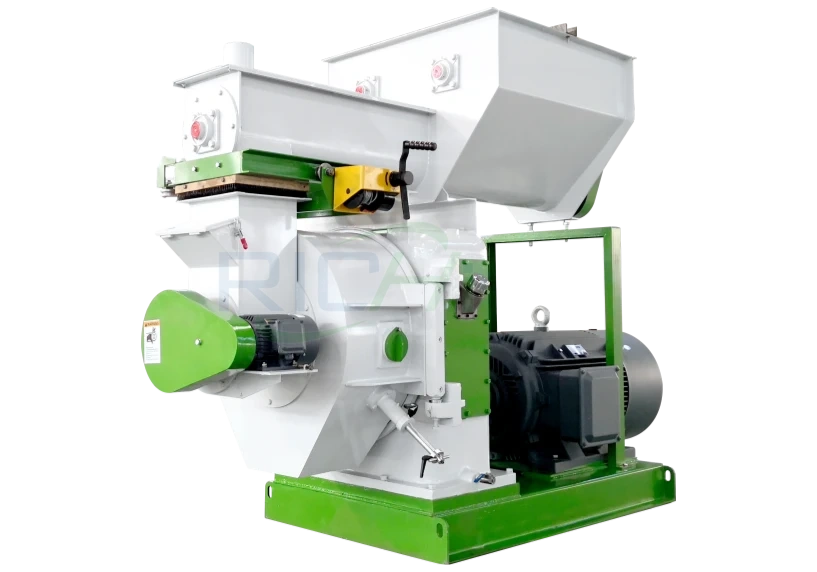

Compost Pellet Making Machine
The compost pellet making machine uses an extrusion process to convert fermented organic materials into pellets. It can handle production capacities ranging from 1 to 26 T/H and above, producing high-quality compost pellets with a consistent structure. We also offer customized pelletizers and complete production line configurations. Please feel free to contact us for a customized solution.
High-Efficiency Compost Pellet Production
Different from conventional compost pellet making machine, this unit features an innovative ring die and a high-strength extrusion system. As a result, it delivers highly efficient and energy-saving performance. Both its output per unit and pellet quality are top-notch.
This compost pellet machine offers a variety of models and configuration options to accommodate different production capacities and pellet sizes. By replacing the ring die with different pore sizes, it can produce organic fertilizer pellets ranging from 4 to 12 mm in diameter.
Our equipment offers high adaptability to raw materials. It can pelletize fermented animal manure, organic fertilizer materials, agricultural residues, and organic waste. By configuring a complete production system, it achieves efficient and stable output.
Parameters of compost pelleting machine
| Model | FZLH250 | FZLH320 | FZLH350 | FZLH420 | FZLH520 | FZLH678 | FZLH768 |
| Main Motor Power(kw) | 22 | 22 | 37 | 90 | 132 | 200 | 250 |
| Breaker Feeder Power(kw) | 2.2 | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Inner Diameter(mm) | 250 | 320 | 350 | 420 | 520 | 673 | 762 |
| Pellet Diameter(mm) | 4~12 | ||||||
| Capacity(T/H) | 1-1.5 | 2-3 | 3-5 | 6-8 | 9-12 | 18-22 | 22-26 |
The above outlines the main model classifications and production capacities of compost pellet making machine. Beyond these, we can also provide you with other customized solutions. As RICHI’s technology continues to advance, we will offer even more configuration options in the future. The final specifications will be subject to the quotation.
Structural Advantages
The compost pellet making machine features multiple innovative design elements that enable highly efficient and energy-saving production.
Each pelletizer is equipped with a Siemens industrial-grade motor to ensure efficient and stable performance. The machine is easy to operate and offers numerous production benefits.
Arch-Breaking Feeder
This device prevents the accumulation of lightweight compost material and ensures a smooth feed flow.
Forced Feeder
It forces the accumulated material into the pelletizing chamber, speeding up the pelletizing process.
Pelletizing Chamber
The dual-roll structure and clamp-type ring die achieve high-efficiency extrusion and molding results.
ring die
Made of 42CrMo alloy, it achieves high unit output through a scientifically designed combination of holes.
Cutting Device
It adjusts the gap between the internal blades and the ring die to produce more compost pellet lengths.
Lubrication Port
This device features multiple lubrication ports to facilitate the application of grease to specific areas.
Production Process of compost pellet mill
The following describes the pelletizing process for this compost pellet making machine. Since the raw materials have undergone fermentation, high-temperature steam conditioning is generally not required.
- Feeding: The optimal moisture content of the raw material should be between 15% and 25%, with particle sizes within 3–5 mm. Material that meets these requirements will flow smoothly into the pelletizer through the arch-breaking feeder.
- Compression: Under the high-pressure compression of the twin rollers, the composting material is forced into the ring die and discharged through its fine apertures.
- Forming: As material continues to be fed in and compressed, cylindrical pieces are continuously discharged.
- Cutting: Driven by the rotation of the ring die, the pellet material passes through cutting blade, transforming into compost pellets.
Applications of compost pellet making machine
As an industrial-grade pelletizer, this machine is capable of meeting a wide range of application needs. It can process various types of composting materials and produce high-quality pellets, thereby catering to a broader range of applications and production requirements.
Processable raw Materials
Our equipment is suitable for pelletizing composting materials that have undergone fermentation and grinding. We can provide a complete raw material processing system. For materials with low viscosity that are difficult to form, an appropriate amount of wood chips, straw powder, or similar materials can be added to achieve better pellet formation. Our equipment can meet pelletizing requirements for both mixed and single-ingredient materials.
Chicken Manure
Cow Manure
Compost
organic waste
Crop Stalks
municipal waste
finished Pellet products
This equipment is capable of producing organic fertilizer pellets for various applications. It meets the production needs of organic fertilizer plants, livestock farms, composting facilities, and other similar operations. The pellets are compact and well-formed, capable of meeting high-standard market demands. Depending on your specific production needs, we will provide you with the most suitable production capacity configuration or a customized solution.
With a single compost pellet machine, you’ll be able to produce multiple types of organic fertilizer. Please feel free to contact us to find the ideal equipment for your needs.
Chicken Manure Compost Pellets
Cow Manure Organic Fertilizer Pellets
Mixed Compost Pellets
Bio-organic Fertilizer Pellets
Agricultural Waste Compost Pellets
Sludge Compost Pellets
Municipal Organic Waste Pellets
Horticultural Compost Pellets
Global CASES
Our compost pellet mills have been successfully sold to more than 150 countries and regions worldwide. These include models with varying production capacities as well as custom-built equipment. As a pellet equipment supplier with over 30 years of experience, we also offer a wide range of production line solutions. Below are some typical project overviews.

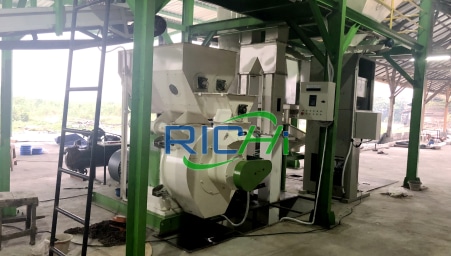

3 T/H Compost Pelletizer for Sale in India
Our client operates a compost pellet plant that uses fermented chicken manure and straw as raw materials. We have designed a production line solution for them that includes crushing, mixing, pelletizing, cooling, and packaging stages. The organic fertilizer produced is primarily used for agricultural cultivation.

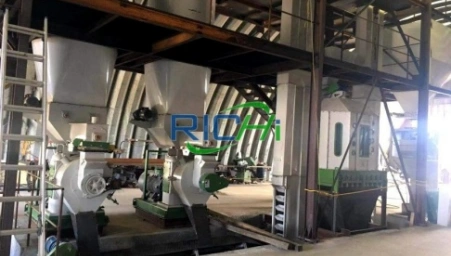

5-6 T/H Compost Pellet Production Line in Brazil
This is a turnkey project for an organic fertilizer plant that meets high standards of automated production. Since the raw material consists of various types of high-moisture animal manure mixed with sugarcane bagasse, a dryer has been installed. The final product is primarily used in agricultural crops such as corn and soybeans.

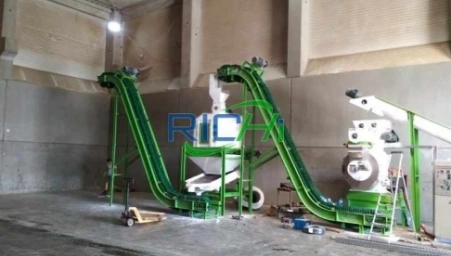

2-3 T/H Compost Pellet Mill for sale Turkey
The raw materials consist of chicken manure, sheep manure, and straw, requiring a straw shredder. The raw materials are primarily sourced from the company’s own surrounding pastures. This production line is used to produce organic fertilizer pellets that provide nutrients for fruit trees and vegetable crops.

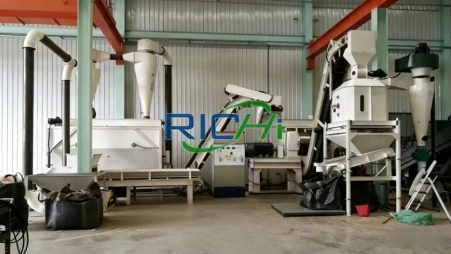

2 T/H compost pellet making machine for Sale in Indonesia
This solution combines palm waste with chicken manure to produce high-quality organic soil fertilizer. We provide our customers with a complete set of production equipment, including a wood chipper. The resulting pellets have a diameter of 5 mm and provide a sustained supply of nutrients to the soil.

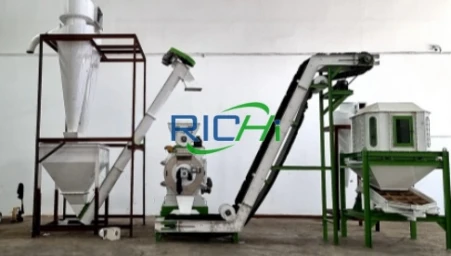

1.5–2 T/H compost pelleting machine for Sale in Philippines
The client is a poultry farm capable of providing a stable supply of raw materials for compost pellet production. The raw materials also include coconut shells. Therefore, a crushing system has been included in this project. The pellets are sized at 4–5 mm and are intended for use in fruit tree cultivation.

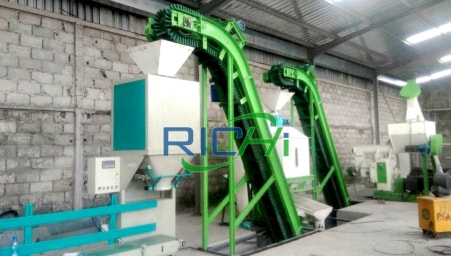

1 T/H compost fertilizer making machine for sale in Vietnam
We provided this client with a flexible production line configuration that includes crushing, pelletizing, pellet cooler, and more. The materials consist of a mixture of pig manure and agricultural waste. The compost pellet products can be used in organic farming to provide nutrients for vegetable cultivation.
Compost Pellet Production Line
We offer a complete, high-efficiency compost pellet production line, which can meet production capacity requirements ranging from 1 to 40 T/H and beyond. Below is an overview of the basic process flow for this solution. In addition, we can provide customized solutions and turnkey services tailored to your specific production needs.
01
Crushing
Some raw materials are quite large, and direct pelletization can easily cause machine jams and reduce product quality. Therefore, this process stage is specifically equipped with shredders and grinders to reduce the raw material to a particle size of 3–5 mm, facilitating pelletization.
02
drying
Excessively high moisture content in the raw material can make it difficult to form pellets. This process is used to dry composted material. Our drum dryers dry the material through rotation and hot air circulation, ultimately controlling its moisture content within the ideal range of 15%–25%.
03
Pelletizing
The compost pellet making machine plays a key role in this stage. We will provide you with a suitable configuration based on your raw material composition, target production capacity, and pellet size. If higher production capacity is required, multiple pelletizers can be operated in parallel.
04
Cooling
This step is used to rapidly cool the pellets in order to set their shape. Our cooling system ensures that the pellets are cooled without compromising their structural integrity. This facilitates packaging and transportation.
05
Screening
This section can screen three types of pellet product to meet requirements for different pellet sizes. The excess material removed during screening can undergo secondary pelletization, thereby reducing costs.
06
Packaging
It is suitable for rapid pellet weighing and packaging requirements. Our highly automated packaging scales will reduce your labor costs and pellet loss while ensuring consistent packaging quality.
Why Choose RICHI?
We provide industrial-grade pellet production solutions and one-stop services.
RICHI Machinery established since 1995, and we have consistently dedicated ourselves to providing customers with optimal pelletizing solutions. We prioritize customer satisfaction, delivering the best possible service.
Because of extensive customer service expertise, we deeply understand your production requirements. Therefore, we offer comprehensive pre-sales and after-sales support to safeguard your compost pellet production operations.
The comprehensive pre-sales service includes free consultations on compost pellet making machine. Our sales team is always available online to provide answers. We also provide attentive after-sales service, which includes the following specific services:
Long-Term Warranty
Every machine sold by RICHI comes with a one-year quality guarantee and fast shipping. For any quality issues arising during this period, you will receive prompt responses and proper resolutions.
Spare Parts Supply
We have also established a global spare parts supply network. Built upon a global system of warehouses, this network ensures the rapid shipment and timely replacement of your worn parts.
Technical Support
Beyond dedicated equipment manuals and instructional videos, we also offer installation and operational training for production line equipment, along with ongoing online technical guidance.
Other Related Production Equipment
A complete system configuration includes not only a compost pellet making machine but also other convenient auxiliary systems. The following are common types of auxiliary equipment. They can handle tasks such as crushing, drying, cooling, and packaging. As a professional supplier, we can provide you with customized solutions for the following equipment.
hammer mill
This machine can grind raw materials smaller than 5 cm. Using high-hardness hammer blades, it reduces the material to a powder with a particle size of 3–5 mm. It supports custom screen mesh sizes ranging from 0.5 to 20 mm.
drum dryer
This dryer features a two or three layers drum design. It achieves rapid and uniform drying of materials through the supply of hot air and the rotation of the drums. The drying time is adjustable, making it suitable for raw materials with varying moisture content and different drying standards.
Cooling Machine
The principle of operation involves cooling pellets through convection with cold air. Its octagonal structure prevents pellet damage. Smooth discharge is achieved via a slide-gate discharge chute. It is typically used in conjunction with a vibrating screen.
Packaging Scale
This machine is capable of bagging materials in 10-50 kg bags. It provides fully automated weighing and uniform packaging. You may select thermoplastic, stitching, or hybrid sealing methods.
Other pellet making machines
Besides advanced compost pellet making machine, we design and manufacture other industrial pellet mills. These machines also offer high efficiency and energy savings. They can manufacture pellets for high-quality fuel, animal feed, bedding, organic fertilizer and more.
wood pellet machine
It can compress wood chips and sawdust into compact, uniform pellets, meeting the demand for longer pellets.
paper Pellet Machine
This pelletizer features a powerful pelletizing system that makes it easier to form waste paper scraps into pellets.
bagasse pellet machine
This pelletizer uses a high-strength dual-roll system to compress sugarcane bagasse into high-quality pellets.
organic fertilizer pellet machine
This machine can pelletize various raw materials, transforming them into high-quality organic fertilizer pellets.
alfalfa pellet machine
Our alfalfa pellet machine is ideal for meeting your high-standard feed requirements.
Corn stalk pellet machine
We offer efficient corn stalk pellet machines that produce high calorific fuel pellets.
Frequently Asked Questions
We offer free pre-sales consultation to every customer. Below are answers to frequently asked questions about this organic fertilizer pelletizer. Additionally, you are welcome to contact us anytime with your specific production requirements. We will provide you with the most suitable compost pellet production solution.
–
Should a compost pellet making machine only process pre-fermented materials?
Common raw materials for compost production include animal manure, agricultural waste, and municipal solid waste. These materials tend to be highly viscous, which can lead to the risk of machine blockages. They also contain high levels of bacteria and are not suitable for direct use in production. Therefore, it is recommended that the raw materials undergo standard composting treatment to ensure higher pellet quality and efficient production.
–
Is it necessary to set up a complete production line for compost pellet production?
This primarily depends on your raw material characteristics and production scale. For small-scale production, provided the raw material moisture content and particle size are appropriate, a standalone pelletizer can be used for production.
If the raw material size exceeds 3–5 mm and the moisture content exceeds 25%, a crushing and drying system is required. Additionally, if your production capacity is large, we recommend setting up a complete production line system. This helps ensure consistent product quality and improves production efficiency.
–
Does a compost pellet making machine require a steam system?
Compost materials typically undergo fermentation and do not require additional high-temperature steam conditioning. The production process for these pellets primarily involves high-intensity compression. The internal temperature of the pelletizer can reach 60–90 degrees Celsius, which also aids in the shaping of the material.
Additionally, if the material is relatively dry, an appropriate amount of moisture can be added. This helps improve the pellet formation rate. (View YouTube)
–
What are the uses of compost pellets?
As a type of organic fertilizer pellet, compost pellets can also be used in various crop cultivation applications. For example, they are suitable for corn, soybeans, fruit trees, horticulture, and soil improvement. Their granular form makes them easier to transport and store, and helps prolong the release of nutrients.
