Straw Pellet Production Line
RICHI straw pellet production line solution is designed for the efficient processing of post-harvest crop residues, including rice straw, corn stalks, wheat straw and cotton stalks. The main stages include raw material crushing, mixing, pelletizing, cooling, and packaging. This process produces structurally stable, compact straw pellets suitable for animal feed and biomass fuel, facilitating transportation and long-term storage.
Premium Straw Pellet Production Line
Compared to traditional straw pellet production lines, our equipment offers higher automation, stable output, and extended service life. The line consistently produces perfect straw pellets with diameters ranging from 4 to 12 millimeters and lengths 4 to 5 times their diameter.
Our straw pellet production line is distinguished by its strong adaptability and broad compatibility, so it can meet a wide range of output requirements and other production demands. We are committed to delivering optimal production results at the most competitive prices.
Through innovative research by our professional engineering team, RICHI have designed straw pellet production lines with more specialized division of labor. Each section is equipped with stable, powerful main machinery and flexible, convenient auxiliary equipment. The coordinated operation of all components ensures the production of more stable, high-quality straw pellets.
Additionally, we offer exclusive customization and turnkey solutions. Our dedicated R&D team can provide the most ideal solution tailored to your raw materials, production requirements, output capacity, and production site.
Straw Pellet Production Process
We also provide clients with customised production processes.
Crushing
Drying
Pelletizing
Cooling
Screening
Packaging
application of Straw Pellet Production Line
The widespread application of straw pellets is due to the efficient operation of production lines. The straw pellet production lines we provide are good for both the environment and economy. They recycle agricultural waste and make a profit. Many countries and regions have supportive policies, which are used in various industries.
Biomass Fuel
Our straw pellet production line produces denser pellets. These pellets serve as a high-quality fuel with greater calorific value and enhanced cost-effectiveness.
All production line equipment is designed to be energy-efficient and environmentally friendly, delivering superior production outcomes while reducing energy consumption costs.
Therefore, our production line is the perfect solution for supplying fuel to a variety of heating systems. They can be used to heat residential, commercial and educational buildings.
Boiler Fuel
District Heating
Biomass Power Generation
Biogas Energy
livestock Feed
Our straw pellet production line is also capable of producing high-quality animal feed pellets from straw, grass and grain. These pellets have a stable structure, making them easy to transport and store.
Processed on a specialised production line, the straw pellets retain their original nutritional value and offer excellent palatability and superior feeding performance.
Consequently, our straw pellet production line is widely used across farms and feed processing plants.
Basic Roughage
Mixed Feed
Fermented Feed
Alternative Concentrate Feed
Crop-Based Substrate
This straw pellet production line produces pelletised feedstock for agricultural ecosystems. For example, our efficient pelletising equipment produces denser pellets with superior water absorption, making them highly suitable for animal bedding.
Additionally, these pellets can be used for organic fertiliser fermentation to improve soil quality. Our production line is energy-efficient and eco-friendly, maximising raw material utilisation to deliver superior ecological benefits.
Fermented Organic Fertilizer
Livestock Bedding
Edible Mushroom Culture Medium
Rice Seedling Substrate

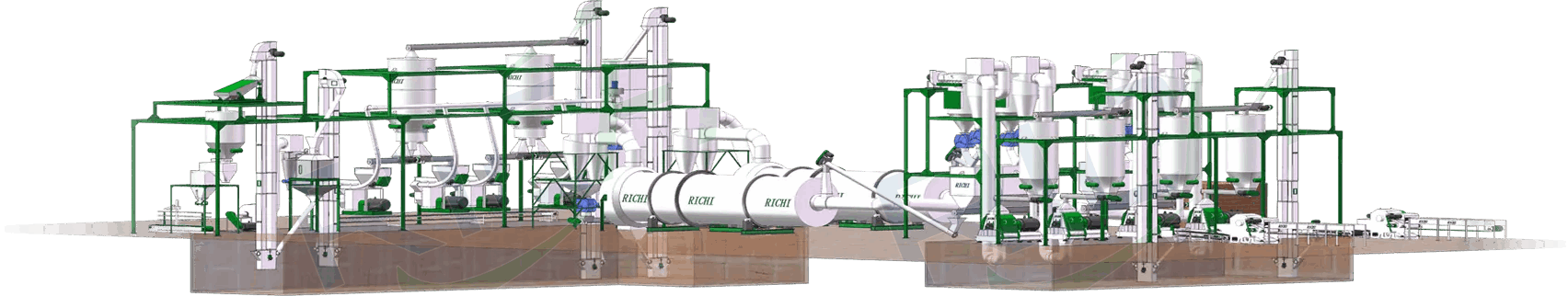

How does straw pellet production line work?
Through field investigations and repeated experiments, we have refined the straw pellet production line into specialized segments, enabling more efficient and orderly pellet production. This better meets customers’ strict pellet production requirements.
01

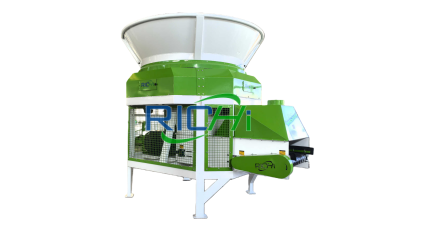

Bale Breaking Process
This section handles production materials with specialized packaging. Straw pellets typically use straw-based materials. Many wheat and rice straws being baled by specialized machinery for transport. To facilitate processing, the bales need to be broken up.
02
Raw Material Crushing Process
Straw-based materials possess long fibers unsuitable for direct mixing and pelletization. This section employs specialized high-efficiency crushers to process the material. The crushed output typically consists of 3-5mm fluffy particles.
03
Raw Material Mixing Process
This process can mix straw materials of different moisture content and textures, making pelletisation easier. It can also mix raw materials in different amounts, which makes sure that the final pellets always have the same high quality.
04
Raw Material Drying Process
High moisture content in straw feedstock leads to loose pellet structure, poor formation, and significantly reduced output. Therefore, we have designed specialized drying equipment to reduce moisture content to the ideal pelletizing range of 15%-18%.
05
High-Efficiency Pelletizing Process
This section serves as the core component of the straw pellet production line. Using our highly efficient and energy-saving straw pellet machine, you can subject pre-processed raw materials to high-temperature compression. This process yields straw pellets characterized by stable structure, smooth surface, and uniform texture.
06

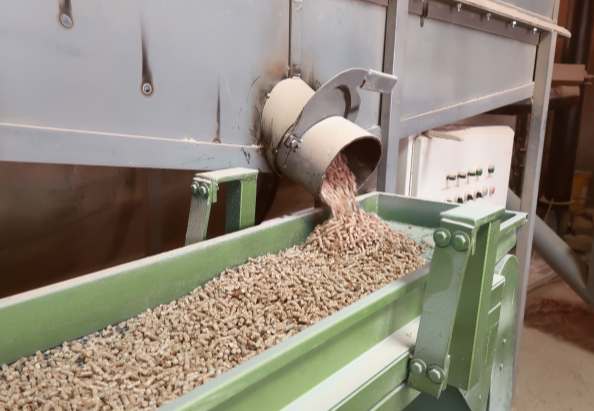

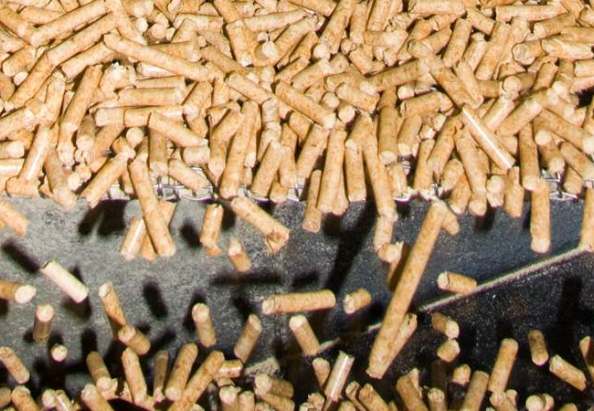

Pellet Cooling Process
After high-temperature steam compression processing, pellets remain hot and soft in texture. This makes them difficult to package and transport, and poses a burn hazard to workers. Therefore, a cooling stage is required to cool the straw pellets.
07

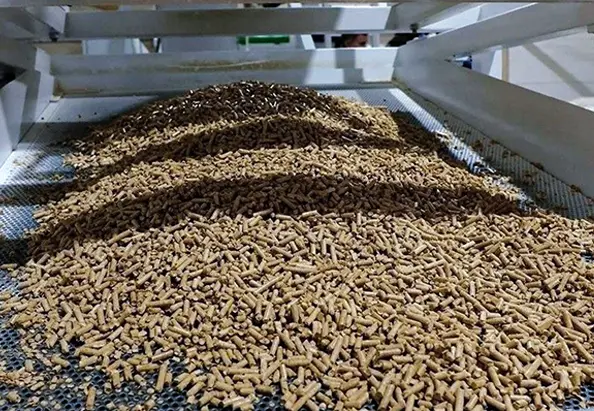

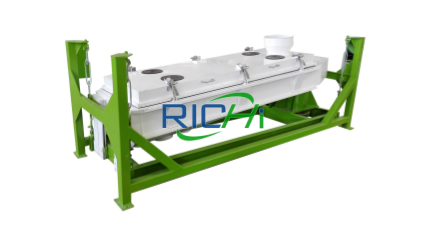

Pellet Screening Process
To ensure uniform specifications of finished pellets, we have designed a screening process. This allows for the separation of compliant products while sifting out smaller materials for re-pelletization. This approach not only maintains production output but also maximizes utilization of raw material costs.
08
Product Packaging Process
This section serves as the final stage of the entire production line. Its purpose is to package straw pellets that meet production requirements. Utilizing highly automated packaging equipment, it helps you save on labor costs.
The above outlines all the basic sections of the RICHI straw pellet production line. If you have any questions about our production line sections or wish to learn more about our production line equipment, please feel free to inquire at any time.
High-quality Straw Pellets Showcase
Below are some examples of finished straw pellets. Our production line equipment can produce high-quality straw pellets that are compact and glossy. Through the following images, you will see the actual products manufactured by our straw pellet production line. Whether for combustion or animal feed, we guarantee consistently perfect pellet size. Using our pelletizing equipment, you can also produce straw pellets of such exceptional quality.

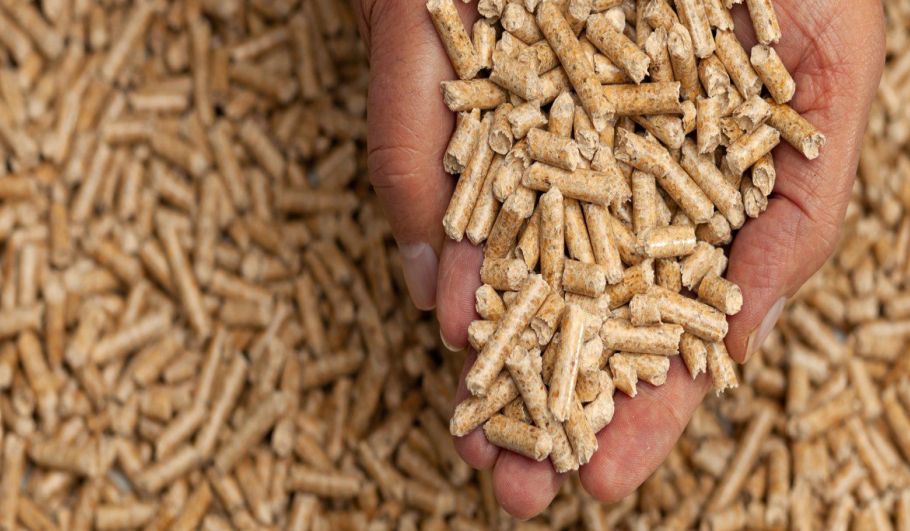

Corn straw pellets
Corn stalks have thicker, longer fibres, which makes them difficult to pelletise directly. Therefore, we designed a high-powered straw crusher to efficiently address raw material size issues. The resulting pellets have a uniform texture and smooth surface, without any coarse fibres or protrusions.
Wheat straw pellets
Wheat straw is economical and has a low fibre content, making it an ideal pelletizing material. The pellets produced by RICHI equipment are uniform in size, have a dense structure, absorb water well, and have an extended storage life. They can be used for combustion, as animal feed and natural bedding.

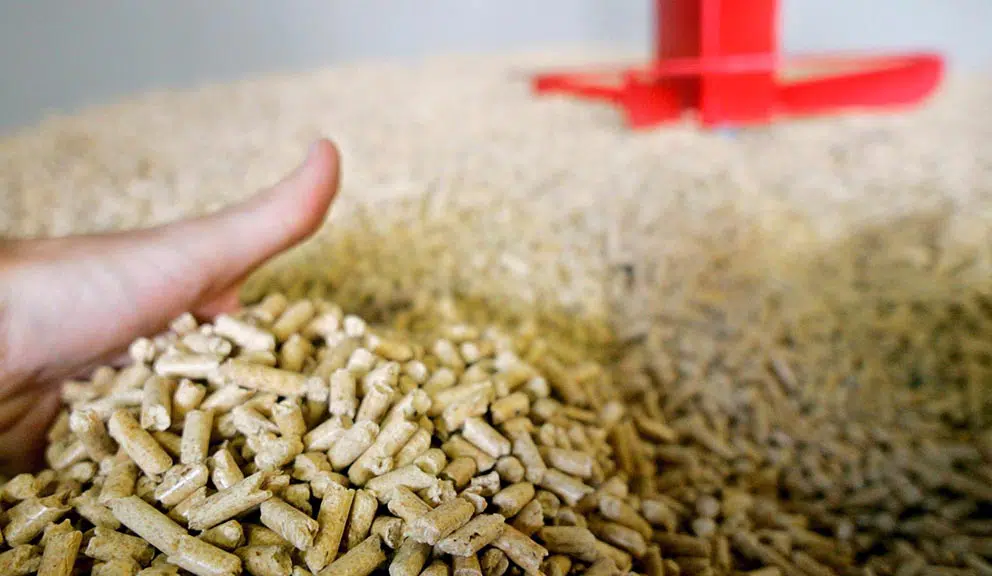

Rice straw pellets
Rice straw has a loose structure and can easily be pulverised for pelletisation. However, its pellet formation rate is low. Our equipment can produce more compact rice straw pellets. It can also accommodate mixed raw materials for pelletisation, releasing greater heat during combustion.
Straw Feed Pellets
These straw pellets can also be used for animal feed. Our straw pellet production line can process a mixture of straw, grains and grass into pellets. The material undergoes high-temperature treatment and compression to produce animal feed pellets. This makes them easier to consume and digest.
What raw materials are suitable?
The primary raw materials for straw pellets are crop straws and husks. Regardless of the raw material formulation used, our straw pellet production line consistently produces high-quality pellets. Our equipment is not only capable of producing straw pellets but is equally suitable for grass pellets.
Corn Stalks
wheat straw
Oat Straw
Rice Straw
Corn Cobs
Straw Bales
Wheat Ears
Hay Straw
Chopped Straw
Grass Bales
The above list shows some of the raw materials that are compatible with RICHI straw pellet production line. Our equipment is highly efficient, energy-saving and versatile. It also helps to reduce raw material costs, thereby maximising your return on investment. If your production materials meet these criteria, or if you are seeking a high-quality straw pellet production line solution, please feel free to contact us.
Customization of straw Pellet Production Line Capacity
Our straw pellet production line, powered by stable and efficient equipment working in tandem, accommodates diverse production capacity requirements. For diverse customer production requirements, we offers multiple capacity configurations. We can customise the equipment settings based on your specific output needs, ensuring optimal production levels and providing the perfect solution for your operations.
0.5-1.5 T/H
Straw Pellet Production Line
This production line is highly flexible and designed for small-to-medium-scale straw pellet production, typically used for small-scale heating applications, small farms, and livestock operations.
1-2 T/H
2-3 T/H
3-4 T/H
5-6 T/H
7-8 T/H
8-11 T/H
12-20 T/H
20-30 T/H
30-40 T/H
Main Equipment on Straw Pellet Production Line
Our straw pellet production line features a series of robust key equipment, such as crushers, dryers and packaging scales, which are also compatible with other biomass pellet production lines. They maximize cost reduction and minimize material loss. We can provide you with customized equipment solutions.

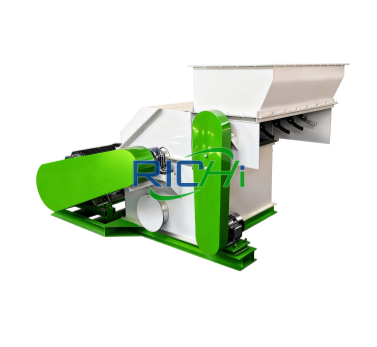

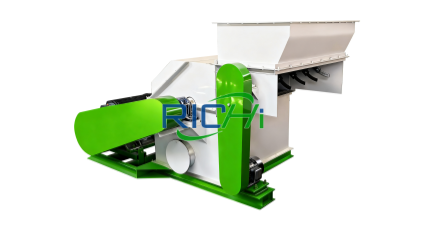

Straw Crusher
With large capacity, it is ideal for crushing straw. Featuring exceptionally durable blade materials and construction, it can pulverize fibrous material into 3-5mm particles, facilitating subsequent pelletization. If your feedstock are rice husks or other flake-like materials, no crushing is required.

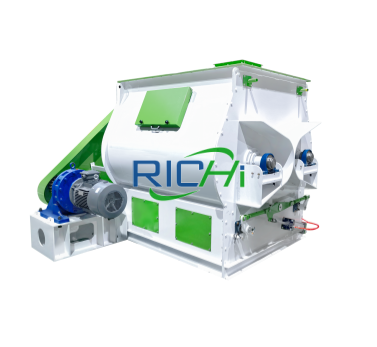

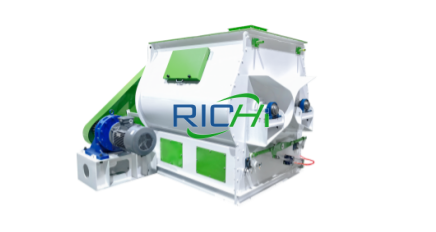

Raw Material Mixer
It ensures thorough and uniform blending of mixed materials. Typically installed upstream of the straw pellet machine, it features an air cannon mounted externally on the mixing chamber to effectively prevent material buildup. This helps to produce finished pellets that have a more consistent texture.

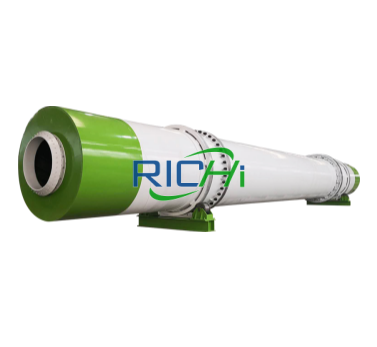

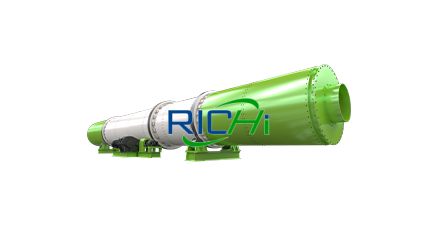

Drum Dryer
RICHI drum dryer features a dual-cylinder design. Straw feedstock rotates within the drum driven by air conveying, enabling more uniform drying. An external thermometer allows real-time monitoring of drying temperatures. Adjust the variable frequency drive as needed to achieve optimal drying results.

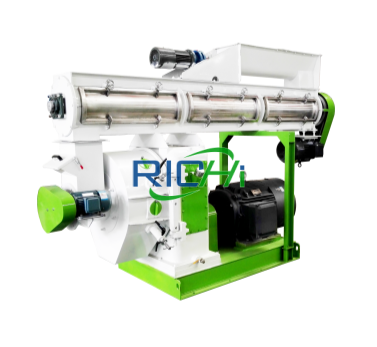

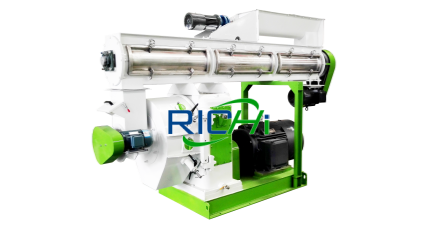

Straw Pellet Machine
Anti-clogging design ensures smoother pelletization. The pellet chamber’s ring die is crafted from 42CrMo alloy steel, offering extended service life. The ring die compression ratio can be adjusted as needed. For producing straw pellets for animal feed, we incorporate a conditioner to enhance material conditioning.

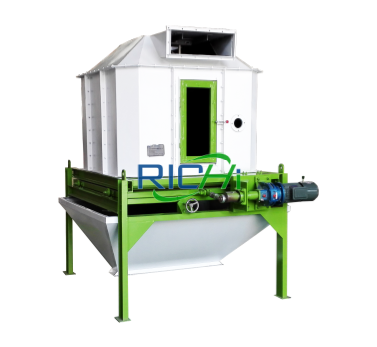

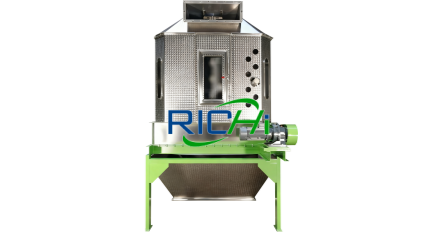

Counterflow Cooler
RICHI cooler features an enlarged capacity to accommodate straw feedstock. This device employs a convection method between particles and air to achieve rapid cooling. Additionally, our machine boasts low energy consumption, helping reduce your production costs.

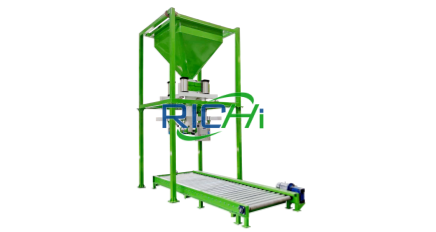

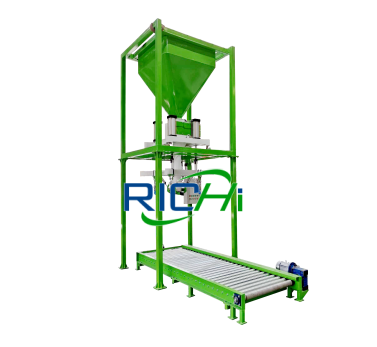

Packaging System
This system incorporates a vibrating screen and an automatic packaging scale, enabling material screening and rapid packaging. You can choose different levels of automation and packaging methods to suit your needs. Fully automated equipment maximises savings on material and labour costs.
The efficient operation of a straw pellet production line depends on the main equipment functioning well. However, it also relies on the coordinated support of auxiliary equipment. Our automated auxiliary equipment not only delivers high operational efficiency but also saves time and labor costs. They feature strong adaptability, can flexible installation across various production stages. Their high efficiency and energy savings help you achieve optimal production outcomes. Contact us for convenient and efficient straw pellet production line.
Click to chat with us online

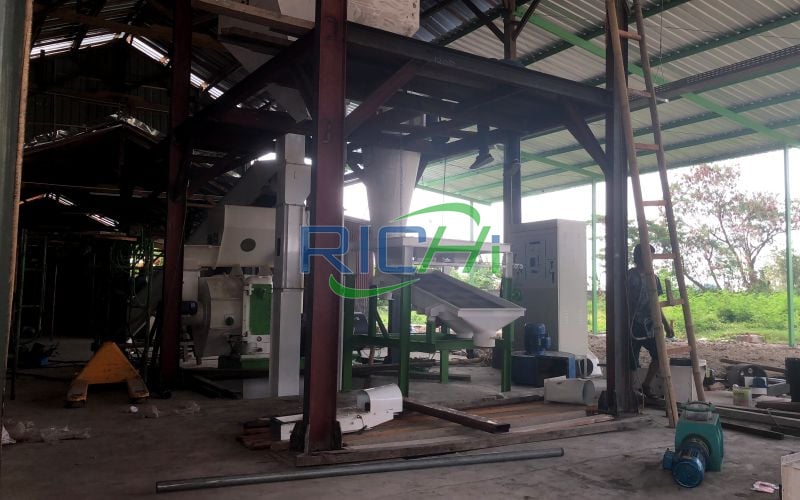

Global Cases
With over three decades of industry expertise, RICHI Machinery delivers straw pellet production lines tailored to diverse output requirements. Each solution is customized to meet client specifications. These case studies showcase our perfect production solutions for customers.
CUSTOMER REVIEWS
Following years of market validation, our straw pellet production line solutions have earned widespread praise across the particle processing industry. We deliver high-performance machinery and provide expert service, ensuring a worry-free investment experience. Your satisfaction motivates us to continuously improve.
I highly recommend RICHI Machinery’s straw pellet production line! It produces perfect straw pellets. After just six months of using it, our sales increased by 30%. They provided extensive installation services and after-sales support. I’m thrilled with this partnership!
Raw materials:
Discarded wheat straw from surrounding farms
We initially had an expensive pelletizer, but it couldn’t handle corn stalks. Luckily, a colleague recommended RICHI’s machine, so we purchased it. Now, we can easily process large quantities of corn stalks. It offers excellent value for its price. Thank you, RICHI.
Raw materials:
Farm-grown corn straw
With RICHI’s equipment helping us produce straw pellets for sale, the profits are quite substantial. Even small-scale production yields significant income. Plus, its automated system is easy to operate, saving me a lot of labor.
Raw materials:
Wheat straw, cotton straw, corn straw
We started with one production line, but its capacity was completely insufficient to meet our sales demands. Thanks to RICHI for optimizing our equipment, we now have ample and stable output. It’s exactly as described—excellent and fully meets our expectations.
Raw materials:
Cotton straw, Wheat straw
I’m extremely grateful for RICHI’s excellent service, they even delivered the equipment to my hometown! The machine is excellent, offering a balance of cost and power. It efficiently processes all our excess straw and rice husks. Pellet quality is outstanding and they burn exceptionally well.
Raw materials:
Farm-grown straw and rice husks
Click to chat with us online
Operation Videos of Straw Pellet Production Line
Our straw pellet production line solutions have earned the favor of customers in numerous countries worldwide. With high production efficiency and impeccable service, they have received consistent praise from clients. Below are actual operation demonstrations of some projects. You can gain a more tangible understanding of our straw pellet production lines through these videos.

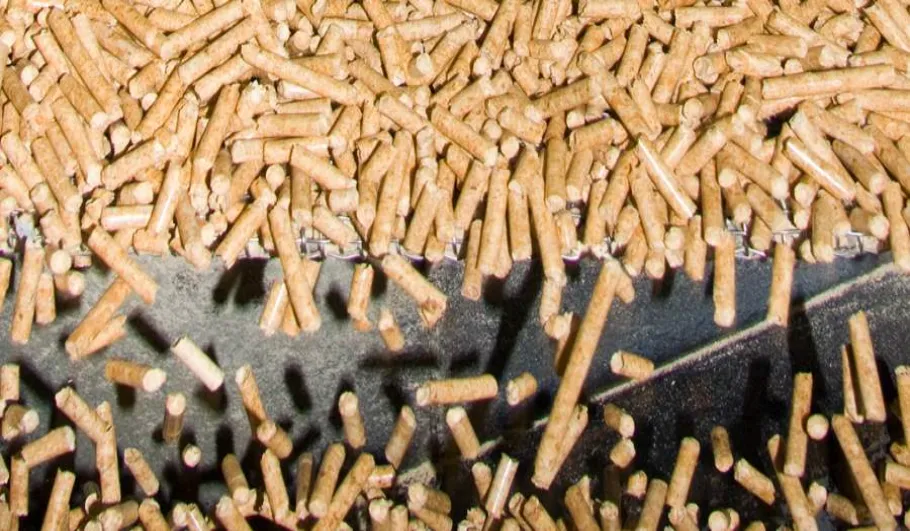

Straw Pellets In Production Line
4 T/H Straw Pellet Production Line Trial Run
Straw Pellet Production Line Trial Operation
Frequently Asked Questions
In order to address the most frequently asked questions from our pre-sales enquiries and post-purchase operations, we have compiled detailed answers about straw pellet production line. Should you have any concerns in these areas, you will find solutions in the following text.
How many operators are required for a straw pellet production line?
+
The number of operators required is dependent on the automation level of the equipment. A straw pellet production line generally comprises core processes such as feeding, monitoring and packaging, typically requiring 2-3 operators. For high-capacity, high-specification production lines, the requirement is for five to six operators.
When equipping a highly automated production line, it is possible to achieve one-button operation, real-time monitoring of current and equipment temperature, efficient material transfer, and safety alarm systems. These automated designs significantly reduce reliance on workers during production.
The key benefits of this technology include minimising equipment failures, enhancing stability and output capacity, facilitating further production efficiency improvements, and reducing labour costs.
What are the key benefits of investing in a complete straw pellet production line?
+
Whilst a single straw pellet machine ensures rapid production, it lacks effective raw material processing and timely cooling, which makes consistent product quality difficult to guarantee. The process is also heavily reliant on manual labour, which results in higher labour costs.
An automated production line, equipped with systematic integration, full-process monitoring and efficient conveying equipment, enables stable and high-efficiency production. This approach has been shown to lead to significant cost reductions and enhanced return on investment. It facilitates the achievement of scale, industrialisation, and the maximisation of economic benefits.
How to control dust and noise during production?
+
It should be noted that dust generation is unavoidable in the process of producing particles. In order to prevent dust pollution, it is recommended that pulse dust collectors be installed on equipment such as crushers and mixers. This will ensure the effective removal of the vast majority of dust.
In addition to concerns regarding dust pollution, noise pollution represents another key production issue. This necessitates elevated standards in machine design, therefore we advise prioritising precision-engineered equipment.
Our straw pellet production line is engineered for low noise and equipped with vibration damping devices. This approach is in accordance with environmental standards and ensures the safety of the operators.
What specific services are included in our “Turnkey Solution”?
+
RICHI “turnkey solution” encompasses the entire process from design to production launch of straw pellet production line. The process of initiating production is straightforward: simply “turn the key”. The following services are available:
Designing solutions tailored to your production needs and actual conditions.
Providing detailed equipment introductions and selection guidance.
Equipment shipping and transportation.
Arranging on-site installation and commissioning by engineers.
Operator training.
Post-sales maintenance and technical support.
This comprehensive service flow ensures your project runs smoothly from start to finish, significantly reducing project management complexity and potential risks.
What is the function of a dryer? How to select an appropriate heat source?
+
Straw feedstock characteristically possesses a high moisture content, frequently ranging from 30% to 50%. However, the ideal moisture level for pelletisation is 15%-18%, which necessitates the use of drying equipment to process the raw material. At this moisture level, the feedstock exhibits excellent binding properties and pellet formation rate, contributing to increased production.
The selection of heat source for a dryer is primarily determined by investment costs. We recommend selecting from the following options: coal-fired hot air furnace, gas-fired hot air furnace, or biomass burner.
The initial option is the most cost-effective, but it generates higher levels of pollutants. The second option offers the advantages of easy cleaning and convenient temperature control, but is priced at a premium.
The most suitable heat source for this purpose is the biomass burner. Our straw pellet production line also accommodates this drying method. This meets environmental requirements and provides heating by burning waste materials, resulting in the lowest economic cost.
