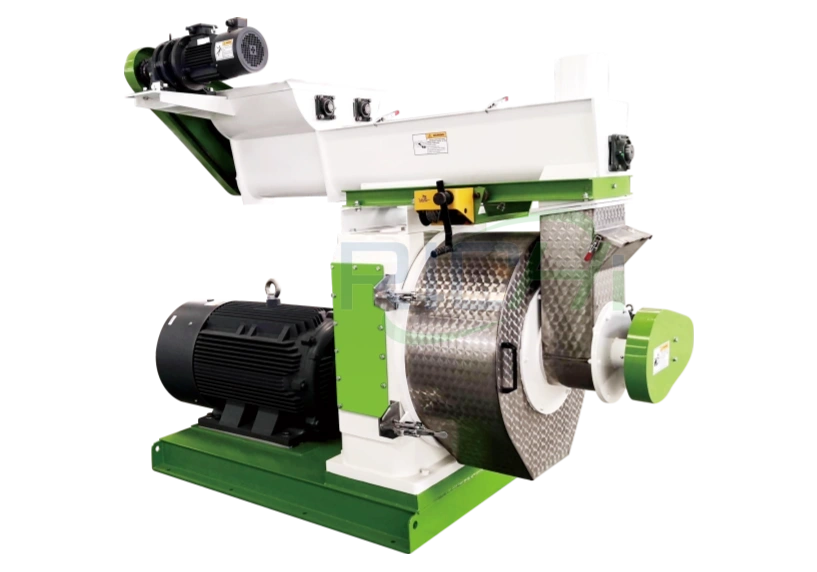

Animal Bedding Pellet Machine
The animal bedding pellet machine meets the bedding needs of livestock, poultry, and pets. It features high operational efficiency and supports bedding production for various raw materials at a capacity range of 0.2–40 T/H. For broader customer needs, we offer customized bedding pellet machines and complete production line solutions.
High-Quality Bedding Pellet Production
Clean, comfortable, and dust-free bedding is essential for animal health. Our animal bedding pellet machine is perfectly designed to meet these needs. It produces high-quality bedding pellets that ensure animal comfort.
For enhanced water absorption and softness of the pellets, our equipment has been specifically upgraded. Unlike standard wood chip pellet machine, the compression ratio has been adjusted to produce relatively soft pellets with superior water absorption. The sterilization process using high-temperature steam ensures the product’s cleanliness.
This device accommodates various raw material formulations. You can use materials such as wood shavings, wood chips, straw, rice husks, hay, and paper scraps. It transforms these materials into dust-free bedding pellets, which are more beneficial for animal health. As a result, it is widely used in farms, breeding facilities, ranches, and animal bedding production plants.
Raw Materials of bedding Pellets
As an industrial animal bedding pellet machine, this unit offers excellent adaptability to a wide range of raw materials. It is capable of producing bedding from various raw materials, including various types of biomass, minerals, pulp, and more.
Investing in a single machine allows for the production of a wide range of bedding products. Each raw material can be processed into high-quality, clean bedding pellets.
• Rice Husks
• Wood shavings
• sawdust
• straw
• bentonite
• paper pulp
• fibers
• soybean residue
Different Types of Animal Bedding Pellet Machines
For the diverse needs of various animals, we have designed different types of bedding pellet machines. The pellets they produce are clean, highly absorbent, and contribute to a healthy living environment for animals. They come in a variety of models with different production capacities. We also offer customized pellet machine for animal bedding.

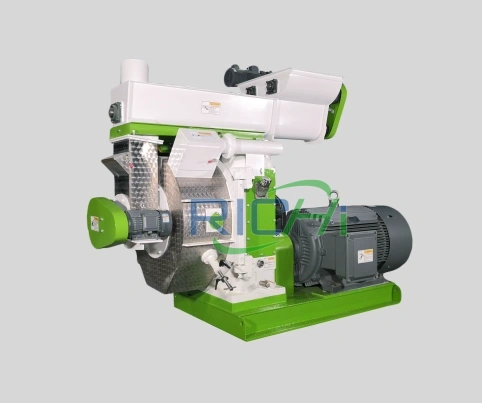

Horse Bedding Pellet Machine

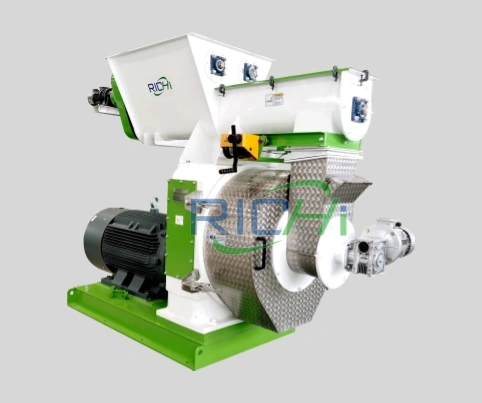

Cattle Bedding Pellet Machine

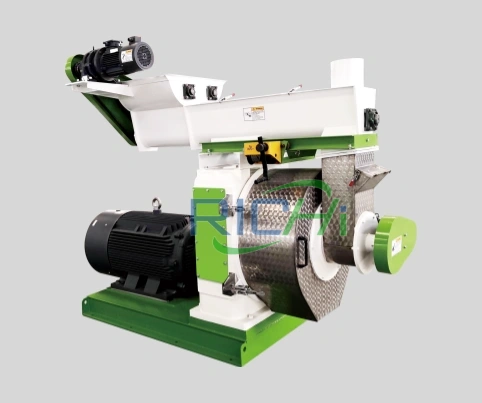

Poultry Bedding Pellet Machine

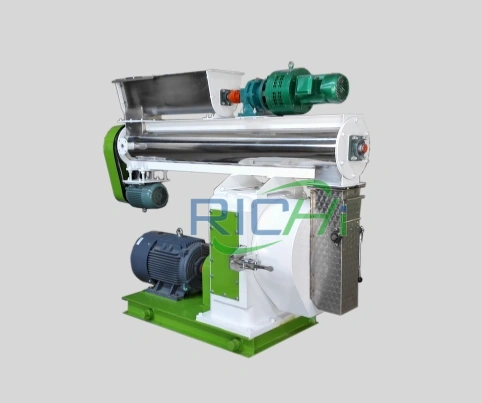

Cat litter pellet machine

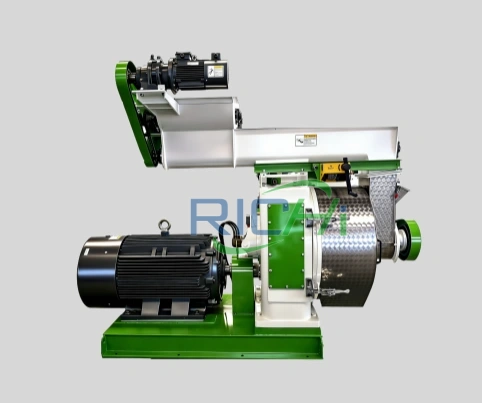

Rabbit Bedding Pellet Machine

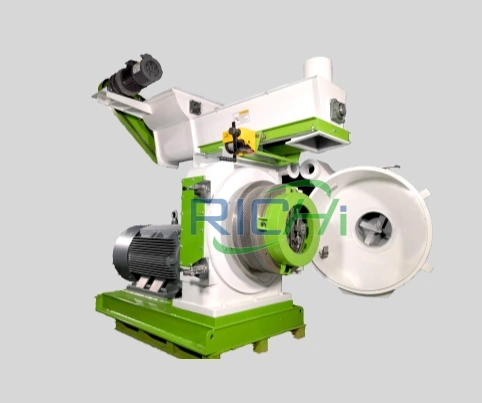

Sheep Bedding Pellet Machine
Parameters of animal bedding pellet machine
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 |
| Main Motor Power(kw) | 22 | 37 | 90 | 132 | 200 | 250 |
| Breaker Feeder Power(kw) | 2.2 | 2.2 | 3 | 3 | 3 | 4 |
| Forced Feeder Power(kw) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Die Inner Diameter(mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Pellet Diameter(mm) | 4-12 | |||||
| Capacity(T/H) | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
| Model | MSZLH250 | MSZLH320 | MSZLH350 | MSZLH420 | MSZLH508 | MSZLH558 | MSZLH678 | MSZLH768 |
| Main Motor Power (kw) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeder Power (kW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Power (kW) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Ring Die Inner Diameter (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Finished Pellet Diameter (mm) | 2~12 | |||||||
| Capacity (T/H) | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
According to the diverse needs of different animals, we offer a wide range of bedding pellet machines. These machines are capable of producing bedding pellets in various sizes, using different raw materials, and at varying production capacities. Below are the specific technical specifications and production capacities for your reference. We can also provide more extensive specifications to meet your customized needs.

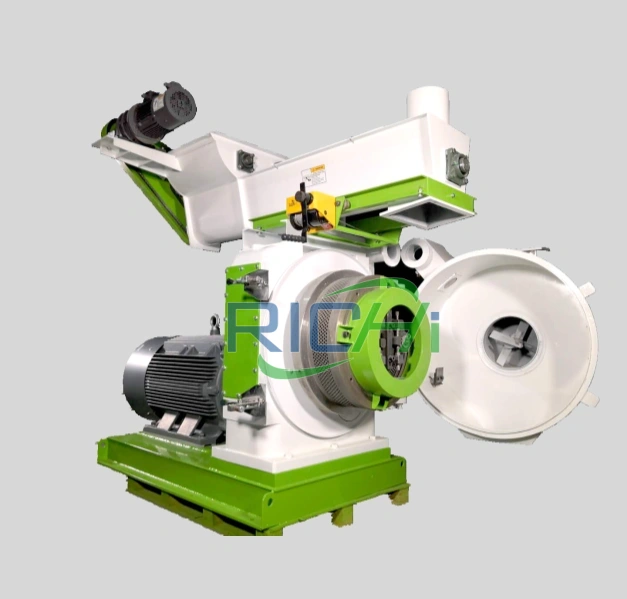

Structural Advantages
Our equipment features multiple innovative design elements that enable highly efficient and energy-saving production. This pelletizer has a simple design, making it easy to operate and maintain.
The following outlines the key structural advantages of the animal bedding pellet machine. For the production of fine-grained cat litter, the machine is equipped with a conditioning unit. We provide a fast spare parts shipping system for every client to ensure stable production.
Arch-Breaking Feeder
Some wood-based or husk materials are relatively lightweight and tend to clump together. This design ensures a smooth feed.
Main Motor
Each bedding pelletizer is equipped with a Siemens industrial-grade motor, providing a stable power source for operation.
Pelletizing Chamber
The alloy double-roll housing provides stronger compression, while offering enhanced durability and wear resistance.
ring die
The hole arrangement of the alloy ring die has been scientifically optimized, enhancing wear resistance while increasing output per unit.
Cutting Device
This device adjusts the gap between the cutting blades and the ring die to produce pellets of varying lengths. It can be configured with one or two sets.
exhaust port
This port discharges high-temperature steam from the interior to protect the production environment. A fan and cyclone can be installed here.
Operational Videos of Bedding Pellet Machines
Below are videos showcasing the production processes of various types of animal bedding pelletizers. These pellet products include livestock bedding made from wood shavings and straw, as well as cat litter made from bentonite. We will provide equipment solutions with different configurations based on your production needs.
Animal Bedding Pellet mill on the Production Line
Animal Bedding Pellet Machine in Operation
Cat Litter Pellet Machine Trial Run
Global CASES
Our pelletizer projects span over 150 countries and regions worldwide. This success is due to our advanced production equipment and premium service. These projects cover individual bagasse pellet mill for sale and complete production line installations. Each one delivers optimal outcomes for pellet production and high return on investment.

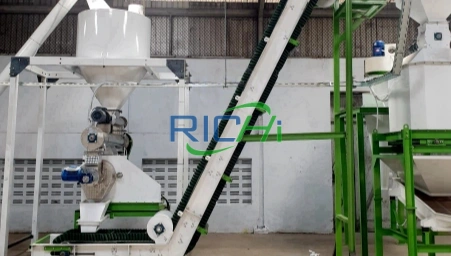

1 T/H Animal Bedding Pellet machine for Sale in Thailand
This client uses soybean residue as the primary raw material to produce 1.5–3 mm long tofu cat litter for sale. We provided the mixing, pelletizing, cooling, and packaging sections. The project has generated excellent profits for the client.

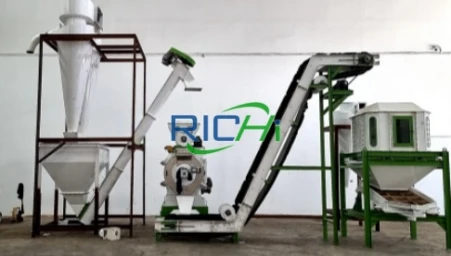

0.5–1 T/H Animal Bedding pellet making machine for Sale in Indonesia
This project produces wood pellet bedding for use in horse stables. The primary raw materials include rubber sawdust and wood chips, so we installed a wood chip hammer mill. This pelletizer is well-suited for highly absorbent bedding.

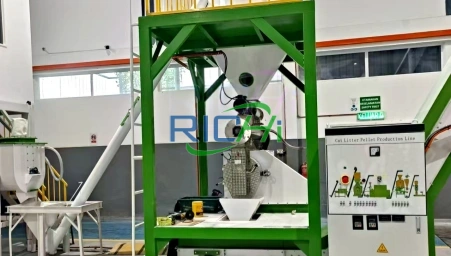

2-3 T/H Animal litter pellet machine for sale in Malaysia
Our client is a pet product manufacturer in need of high-efficiency cat litter pellet production equipment. We provided them with a highly flexible equipment solution capable of producing both tofu-based and bentonite cat litter pellets.

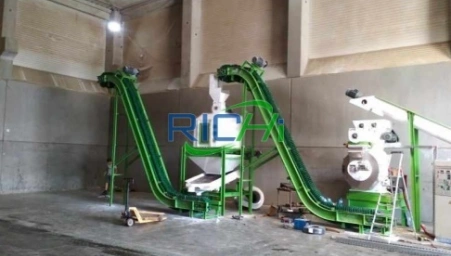

2 T/H Animal Bedding Pellet Mill for Sale in Poland
The client uses wheat straw as raw material to produce bedding pellets for sale. Therefore, we supplied a straw shredder, a pellet mill, and other equipment. The bedding products are primarily used in cattle farms, poultry farms, and similar facilities.

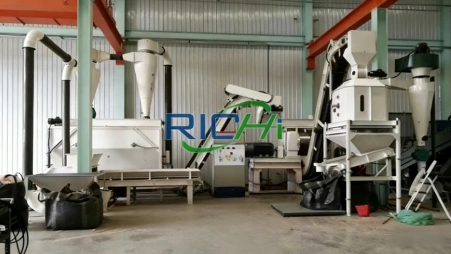

3 T/H Animal Bedding Production Equipment for Sale in Canada
This project uses wood chips and straw to produce dairy cow bedding. Therefore, the pellets must meet high standards for thermal insulation and comfort. We provided a customized solution to produce pellets with excellent softness and water absorption.

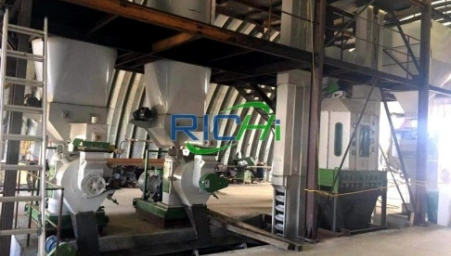

5-6 T/H automatic bedding pellet machine for Sale in USA
This is a poultry bedding pellet production project. It uses wood shavings and peanut shells as raw materials. The customer requires automated production and high-quality pellets. The design includes a PLC system and multiple machines operating in parallel to meet these needs.
animal bedding Pellet Production Line
We offer complete animal bedding pellet production line equipment, capable of meeting production capacities ranging from 0.5 to 10 T/H and beyond. The processing methods and pelletizing processes vary significantly depending on the raw materials used. We will provide a tailored process configuration based on your specific production needs.
01
Crushing
Some large-sized raw materials cannot be pelletized directly and must first be crushed. Therefore, this process stage is specifically equipped with shredders and grinders to reduce the raw material to a particle size of 3–5 millimeters, facilitating pelletization.
02
drying
This section is used to dry materials with high moisture content, located after the crushing section. Our drum dryer features a high-capacity design. It dries the material through rotation and hot air circulation, achieving an ideal moisture content of 15%–18%.
03
Pelletizing
The animal bedding pellet machine plays a key role in this stage. We will provide you with a suitable configuration based on your raw material, target production capacity, and pellet size. If higher production capacity is required, multiple pelletizers can be operated in parallel.
04
Cooling
To ensure rapid pellet setting, you can choose to configure this section. This cooling system enables the pellet structure to set quickly without losing integrity, making it easier to package.
05
Screening
This section can screen three types of pellet product to meet requirements for different pellet sizes. The excess material removed during screening can undergo secondary pelletization, thereby reducing costs.
06
Packaging
It is suitable for rapid pellet weighing and packaging requirements. Our highly automated packaging scales will reduce your labor costs and pellet loss while ensuring consistent packaging quality.
Why Choose RICHI?
We provide industrial-grade pellet production solutions and one-stop services.
RICHI Machinery established since 1995, and we have consistently dedicated ourselves to providing customers with optimal pelletizing solutions. We prioritize customer satisfaction, delivering the best possible service.
Because of extensive customer service expertise, we deeply understand your production requirements. Therefore, we offer comprehensive pre-sales and after-sales support to safeguard your animal bedding pellet production operations.
The comprehensive pre-sales service includes free consultations on animal bedding pellet machine. Our sales team is always available online to provide answers. We also provide attentive after-sales service, which includes the following specific services:
Long-Term Warranty
Every machine sold by RICHI comes with a one-year quality guarantee and fast shipping. For any quality issues arising during this period, you will receive prompt responses and proper resolutions.
Spare Parts Supply
We have also established a global spare parts supply network. Built upon a global system of warehouses, this network ensures the rapid shipment and timely replacement of your worn parts.
Technical Support
Beyond dedicated equipment manuals and instructional videos, we also offer installation and operational training for production line equipment, along with ongoing online technical guidance.
Other Related Production Equipment
The following are auxiliary machines commonly used in the production of animal bedding. Like animal bedding pellet machine, they offer high-efficiency, energy-saving performance. In addition to these, we have designed other similar machines for same production stages to meet various production needs.
hammer mill
This crusher is specifically designed for processing small-sized materials. It can crush wood chips and agricultural waste smaller than 5 cm into an ideal size of 3–5 mm. It supports custom screens with mesh sizes ranging from 0.5 to 20 mm.
drum dryer
This dryer features a two or three layers drum design. It achieves rapid and uniform drying of materials through the supply of hot air and the rotation of the drums. The drying time is adjustable, making it suitable for raw materials with varying moisture content and different drying standards.
Cooling Machine
The principle of operation involves cooling pellets through convection with cold air. Its octagonal structure prevents pellet damage. Smooth discharge is achieved via a slide-gate discharge chute. It is typically used in conjunction with a vibrating screen.
Packaging Scale
This machine is capable of bagging materials in 10-50 kg bags. It provides fully automated weighing and uniform packaging. You may select thermoplastic, stitching, or hybrid sealing methods.
Frequently Asked Questions
As a supplier of pelletizing equipment with over 30 years of experience in customer service, we can answer any questions you may have about animal bedding equipment. In addition to the frequently asked questions below, we also offer free consultations on equipment solutions. Please feel free to contact us at any time with your specific production needs.
–

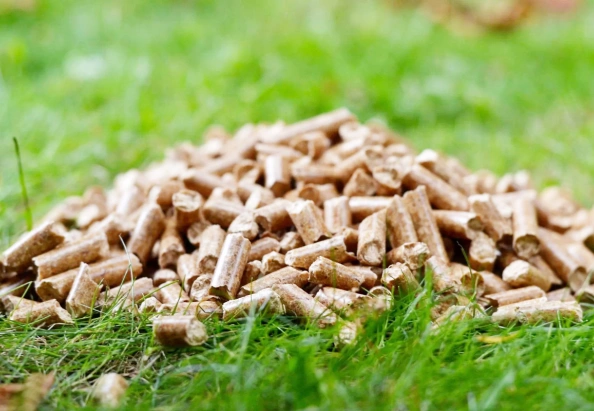

What is the diameter of the pellets produced by this animal bedding pellet machine?
Common animal bedding pellets range in diameter from 4 to 10 mm. The specific size depends on the type of animal. For large animals such as cattle and horses, 8 mm diameter pellets are commonly used. This size is particularly in demand at many ranches and cattle farms.
For small animals, such as guinea pigs, hamsters, and rabbits, we recommend producing bedding pellets in 4mm and 6mm sizes. These sizes are better suited to the needs of small animals. Different pellet diameters can be achieved by replacing the ring die with one of a different aperture size.
–
Does wood chip raw material need to be dried before being pelletized into animal bedding?
This primarily depends on the actual moisture content of the raw material. Not only wood, but any raw material with a moisture content higher than 15% is unsuitable for direct pelletization. This can affect the pellet formation rate and product quality. Therefore, we have designed high-efficiency wood chip dryer and mesh belt dryer for drying different types of raw materials.
–
Is this animal bedding pellet machine the same as a biomass pelletizer?
The pelletizing principles for both types of equipment are similar; they both use high-temperature compression to shape the material. However, their specific technical specifications differ. Since pellet fuel requires greater density and higher calorific value, the compression ratio of the pelletizer is higher. Examples include wood chip pellet machine, sawdust pellet mill, and rice husk pelletizer.
In contrast, animal bedding requires low-dust pellets that offer comfort and absorbency. Therefore, the compression force of the pelletizer used for animal bedding is relatively lower. The resulting pellets better meet the needs of animals. Using a specialized animal bedding pelletizer is more conducive to product quality. (View YouTube)
–
What equipment is required for a complete animal bedding pellet production line?
Common raw materials for animal bedding pellets include wood shavings, straw, paper pulp, and other similar materials, so a comprehensive raw material processing system is necessary. In addition to the basic pellet mill, this includes equipment such as a sawdust hammer mill and a sawdust dryer. Furthermore, a mixer is required for processing mixed raw materials.
For high-quality pellet production requirements, we also provide pellet coolers, screeners, bagging scales, and dust collection systems. These devices work together to ensure the production of high-quality animal bedding pellets.
