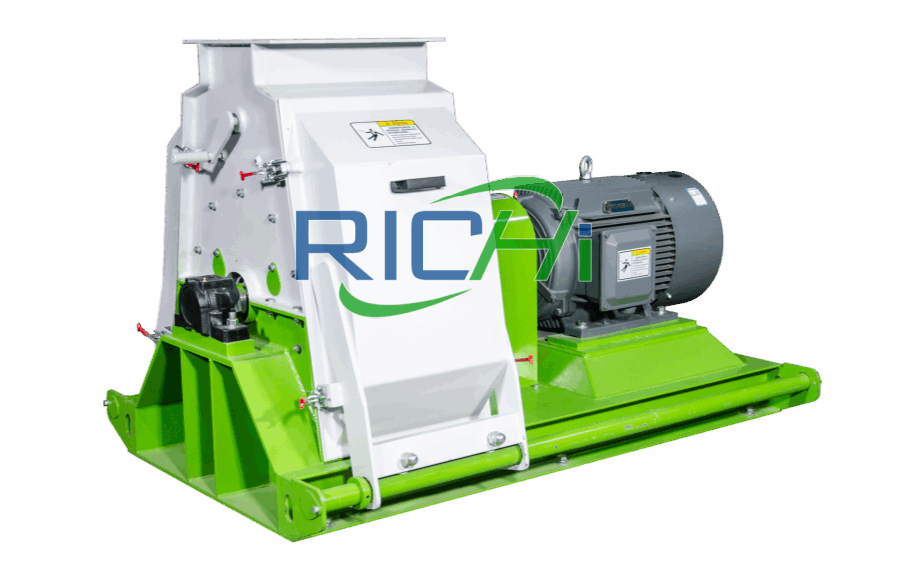

wood chip Hammer Mill
Our wood chip hammer mill is designed to crush various types of wood up to 5 cm in size, including wood chips, shavings and other coarse wood materials. It features multiple capacity models to accommodate wood pellet lines of varying scales. This energy-efficient equipment delivers high performance and lower long-term operating costs.
Crushing Result : 0.5-20 mm
power : 37-220 kW
Hammer Mill Operation Video

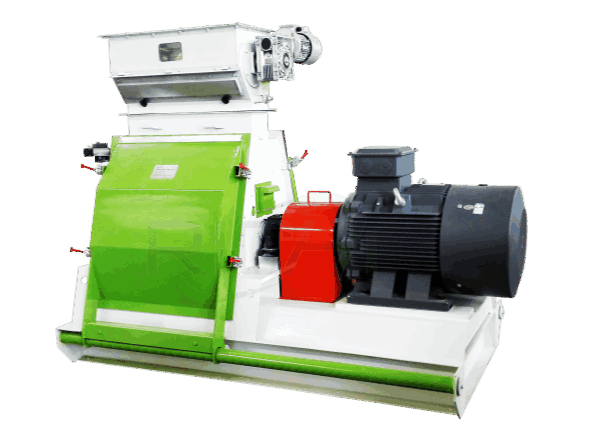

This wood chip hammer mill is highly adaptable, ideal for wood chip pellet production lines with capacities ranging from 0.5 to 40 T/H. When paired with wood chip pellet machine or sawdust pellet mill, it enhances fuel pellet quality . We also provide customized equipment and complete production lines to meet your diverse production needs.
Parameters of wood chip Hammer Mill
We have designed multiple capacity models for this crusher, each delivering equally outstanding crushing performance. The larger models (2.0-2.5 T/H and above) feature a segmented screen design, which makes replacement easier and reduces maintenance costs. For special parameter requirements, we offer dedicated customization services.
| Model | SFSP56*40 | SFSP66*60 | SFSP66*80 | SFSP66*100 | SFSP66*120 | SFSP66*150 |
|---|---|---|---|---|---|---|
| Rotor Diameter （mm） | 560 | 660 | 660 | 660 | 660 | 660 |
| Crushing Chamber Width （mm） | 400 | 600 | 800 | 1000 | 1200 | 1500 |
| Rotating Speed (rpm) | 2980 | 2980 | 2980 | 2980 | 2980 | 2980 |
| Line Speed of Hammers (m/s) | 88 | 103 | 103 | 103 | 103 | 103 |
| Power (kw) | 37 | 55, 75 | 75, 90, 110 | 110, 132, 160 | 160, 185, 220 | 220 |
| Production Capacity (T/H) | 0.5-0.6 | 1.0-1.2 | 2.0-2.5 | 3.0-4.0 | 4.0-6.0 | 7.0-8.0 |
This shredding equipment reduces wood chips to an optimal size of 3–5 mm, enabling your wood pellet machine to produce pellets more efficiently. The pellet quality also depends on the moisture content of the raw material. To achieve the ideal moisture level of 15%-18%, we also provide high-efficiency dryers.
What raw materials can it process?
This wood chip hammer mill can process any biomass material with a maximum size of 5 cm. This includes not only wood chips and shavings, but also pre-crushed logs, branches, boards, and blocks. Its reinforced screen mesh accommodates both hardwoods and softwoods, minimizing the risk of damage.
wood chip Hammer Mill Applications
This equipment boasts exceptional crushing capabilities, making it ideal for various applications requiring fine wood crushing. We offer multiple solutions to meet your needs for high-quality wood pellet.
Comprehensive Service
Besides advanced crusher, we also provide complete wood pellet production line equipment. For large-scale wood pellet plants and biomass pellet plants, we offer one-stop turnkey solutions.
wood chip crushing
The most common application is for wood chip crushing, reducing small wood chips to the optimal size for efficient pellet production.
wood pellet plant
This hammer mill can process a wide range of wood materials, delivering consistent and efficient crushing performance.
biomass Pellet plant
Its high adaptability makes it suitable for integrated pellet plants, achieving fine crushing from 0.5 to 20 mm to maximize utilization.
Advantages of wood chip hammer mill machine
To accommodate the characteristics of wood raw materials, we have optimized the structure and key components of this equipment. By reducing unnecessary parts and adjusting the motor power, it can achieve rapid and uniform crushing. Additionally, the screen mesh construction varies significantly across different capacities. These features enhance the convenience of your wood chip crushing process.
Crushing Chamber
Crushing Chamber
The water-drop style crushing chamber features a rational design that can simultaneously process more wood chips. This design increases unit capacity by 25%.
Motor
Motor
For wood chip crushing, this equipment is equipped with a Siemens two-stage motor. Compared to feed grinding, it consumes less energy, thereby reducing production costs.
Rotor
Rotor
Each rotor undergoes professional dynamic balancing testing, achieving a centrifugal error of less than 5 g. Regularly adjusting the orientation of the rotor and feed guide plates can promote more uniform wear angles on the hammer plates, extending their service life.
Hammer Blades
Hammer Blades
Our hammer blades are crafted from 45 steel for enhanced durability. The hammer heads feature wear-resistant tungsten carbide material, extending their service life.
Screen Mesh
Screen Mesh
The screen mesh of this equipment has been thickened to reduce wear risks. For large models such as SFSP66*80 and above, the screen mesh features a sectional design for easier replacement and lower maintenance costs.
Inspection Door
Inspection Door
It features a pulley design at the bottom for easy operation. The safety mechanism ensures power is only activated after the door is fully closed. This significantly reduces the risk of accidents.
Service Programs
Personalized Services
We provide a range of specialized services for wood chip hammer mill. Through a combination of pre-sales and after-sales support, both online and offline, we ensure you have the best possible production experience.
Fast Shipping
We have set up a dedicated shipping system. Each crusher is shipped directly from the factory, which significantly reduces transit time.
Installation Guidance
Each shipment includes a specialized user manual and video tutorials, which help you quickly master the equipment.
Free Consultation
We offer free equipment consultation. Tell us your target production capacity and actual crushing requirements, for tailored solutions and quotations.
Long-Term Warranty
Each wood hammer mill for sawdust comes with a one-year warranty, ensuring prompt and effective resolution for any quality issues.
Customized Solutions
For specialized materials and sizing needs, we deliver bespoke equipment customization to ensure optimal production outcomes.
Spare Parts Supply
We have established a global spare parts network system. Leveraging a national warehouse system, it enables rapid component delivery to minimize downtime risks.
Frequently Asked Questions
To help you select a wood crusher hammer mill more smoothly, we’ve compiled answers to frequently asked questions. These cover equipment usage precautions and how to obtain an accurate quote. If you have any further questions about this hammer mill, feel free to ask anytime.
Can the industrial wood chip hammer mill directly crush raw timber?
+
This hammer mill for wood chips processing cannot directly crush timber raw materials exceeding 5 cm in size. Oversized material impairs crushing efficiency and increases unnecessary energy consumption. This equipment is a precision crusher designed for processing small wood chips. It produces sawdust-like particles ranging from 0.5-20 mm.
We also offer other types of wood crusher machine for sale, such as sawdust hammer mill. For large-diameter wood materials, preliminary crushing is required. We provide efficient crushers for this step. Examples include panel crushers for boards, wood shredders for large-diameter logs, and wood chipper machines for initial slicing, among others.
What role does the wood hammer mill for biomass play in wood pellet production?
+
Directly pelletizing conventional wood chips causes wear on pellet mill components and significantly reduces pellet quality. However, using this wood crusher hammer mill prepares the raw material to meet optimal pelletizing conditions. Its 3-5 mm sawdust-like material ensures the best pellet quality while reducing pellet mill energy consumption and wear rates.
Does the hammer mill have requirements for raw material moisture content?
+
For wood chips requiring crushing, the optimal moisture level is around 10%-20%. This prevents screen clogging caused by excessive moisture. It also reduces dust generation during drying, protecting the production environment.
For moisture control of raw materials, we offer highly efficient wood chip dryers. This equipment can process wood chips with varying moisture levels. It features variable frequency control to optimally adjust drying duration.
How to obtain an accurate wood chip hammer mill price?
+
If you wish to obtain an accurate wood chip hammer mill cost, please provide the following information. First, specify the raw material type, as materials of different sizes and moisture levels have distinct equipment requirements. We will provide a suitable solution based on your raw material characteristics.
Second, indicate your required production capacity range. Equipment prices vary significantly across different capacity models. This helps us determine the price range for the equipment, thereby reducing your time investment. (View YouTube)
