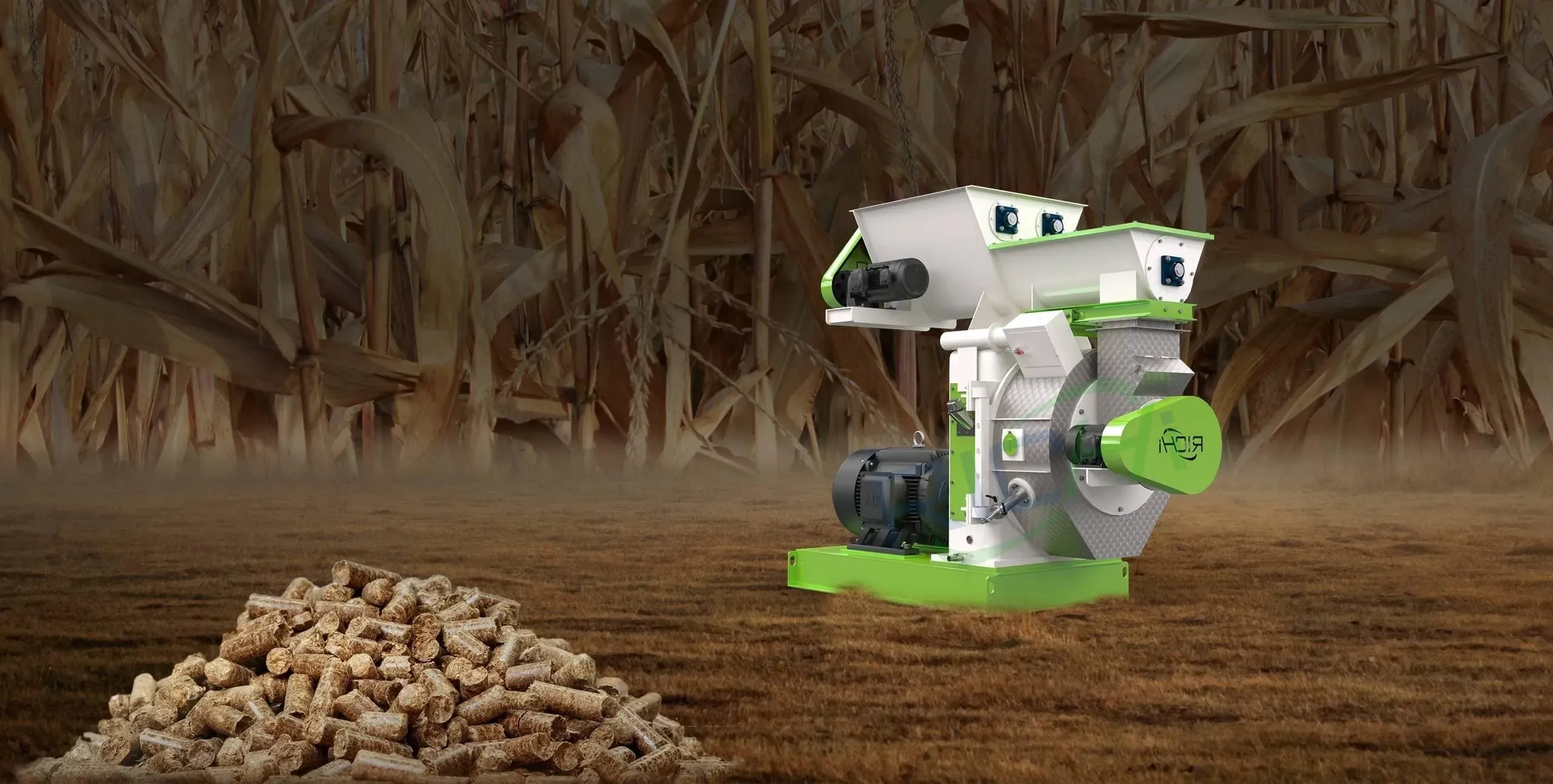

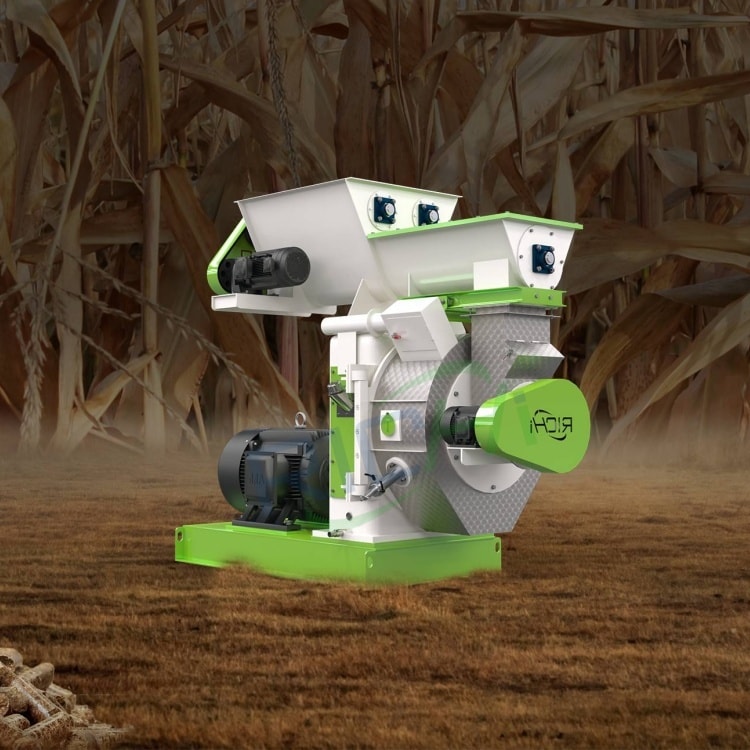

Straw Pellet Machine
Professional Straw pellet Machine
As a professional manufacturer of pelletizing equipment, our straw pellet machine features an optimized compression ratio design to produce denser pellets. Beyond processing various types of straw material, they are also ideal for producing straw pellets from grass and grain. With exceptional pelletising capabilities, they can produce biomass fuel, along with feed pellets, cat litter and organic fertilisers.
Compared to traditional pelletising equipment, RICHI straw pellet machines are more efficient and energy-saving. They help reduce raw material costs and deliver significant economic benefits.
Design Highlights of Straw Pellet Machine
Through scientific design, our straw pellet machine can process various raw materials into pellets and adapt to complex operating environments. If you require straw pellets for animal feed, we can add a conditioner to meet the high conditioning requirements of feed.
Exhaust Fan
Removes high-temperature steam from the pelletizing chamber, preventing burns.

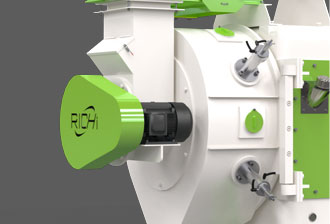

Pelletizing Chamber
Features a forced feeder design to prevent material buildup and enhance pelletizing efficiency.

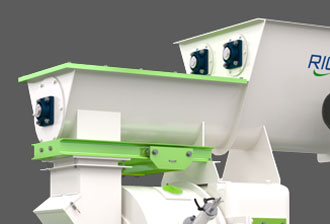

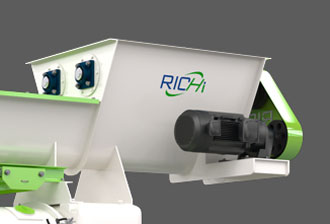

Feed Inlet
Equipped with an arch-breaking feeder and counter-rotating paddles for smoother material flow.

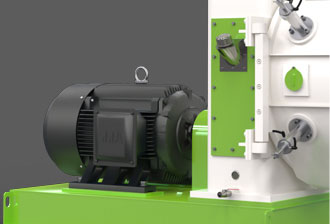

Siemens Motor
Industrial-grade high-efficiency motor delivers continuous, stable power to the equipment.
Straw Pellet Machine Customized Services
We are committed to providing professional pellet machines and excellent customer service. To help you better understand and operate our equipment smoothly, we offer the following tailored services.
Online Consultation
Our professional sales team provides 24/7 online support. We respond to all your questions about equipment and production. Feel free to ask any questions about straw pellet machines at any time.
Customized Solutions
For specific requirements regarding straw pellet machines, our dedicated service team and engineering specialists can develop tailored solutions based on your raw materials, production capacity needs, and local conditions.
One-Stop Solutions
As a large-scale pellet equipment manufacturer, we offer complete biomass pellet production lines. If you require integration with existing production equipment, feel free to inquire at any time.
Features of Straw Pellet Machine
Straw pellet machine is a critical piece of equipment in the production line, and its performance directly impacts the quality of the final product. Our machines feature excellent design, stable structure, and long service life, providing you with long-term, reliable, and high-quality service.
High Forming Rate
+
Our equipment is meticulously designed and optimized based on real-world production conditions. It is equipped with multiple anti-clogging devices and has a specially designed dual-roller structure within the pelletizing chamber. This ensures uniform force distribution on the material, promoting efficient forming. These designs can significantly enhance your production efficiency.
Optimal Compression Ratio
+
To meet diverse raw material production needs and achieve the mold’s optimal compression ratio, our rollers and flat dies undergo extensive experimental testing and optimization. This facilitates easy formula ratio adjustments, ensuring ideal production outcomes regardless of the straw feedstock used.
Stable Operation
+
RICHI straw pellet machine employs a high-precision gear transmission system, delivering approximately 15% higher efficiency than belt-driven models. It incorporates robust SKF bearings. This design ensures smoother operation while effectively reducing equipment wear and maintenance costs.
Environment friendly
+
Each machine features exhaust ports and fans above the granulation chamber. This facilitates the timely removal of high-temperature steam from the chamber, achieving effective cooling. It significantly protects the working environment for operators while preventing the dispersion of particulate matter.
Safe operation
+
Every equipment is equipped with safety pins to ensure stable operation and prevent adverse consequences from overload conditions. Additionally, for your convenience, we offer flat dies with various apertures to accommodate different raw materials.
Extended Service Life
+
To prolong the machine’s lifespan, the internal ring dies are crafted from 42CrMo alloy steel. Compared to stainless steel, this material offers higher hardness and superior wear resistance. This design reduces wear-related costs and ensures long-term stable operation of the equipment.
Types of Straw Pellet Machine
We deeply understand customer needs and have specifically launched multiple models of straw pellet machines for sale. RICHI CZLH series products are suitable for various large, medium, and small production lines. You can select equipment that fits your production needs based on the following descriptions. Alternatively, inquire with us for customized solutions.

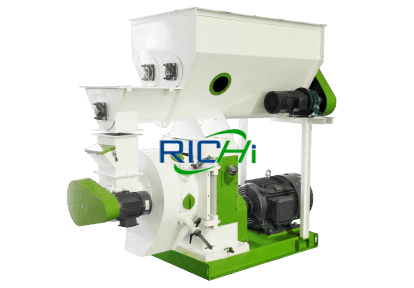

CZLH320 Straw Pellet Machine For Sale
Production: 0.5-0.6T/H
Power: 22 kW
This equipment has a standard production capacity and high flexibility, so it is ideal for small-scale straw pellet production. Its versatility also extends to grass and wood pellet production lines.
CZLH350 Straw Pellet Machine For Sale
Production: 1.0-1.2T/H
Power: 37 kW
As a small-scale production device, it allows for the mixing and pelletising of raw materials in various proportions and combinations. It is suitable for producing all-purpose straw pellets.

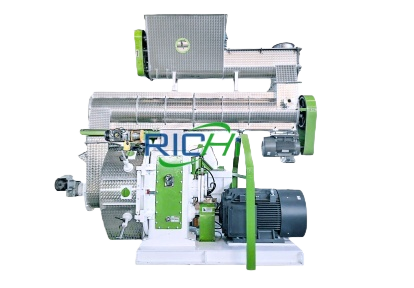

CZLH420 Straw Pellet Machine For Sale
Production: 1.8-2.0T/H
Power: 90 kW
This machine boasts higher output and enhanced stability. Designed for various common biomass pellet production lines, it ensures more consistent and efficient pellet production.

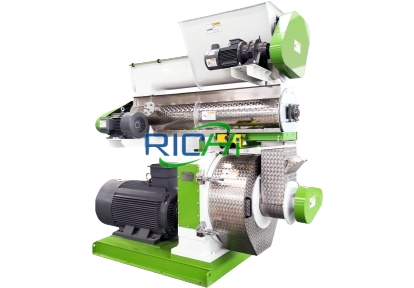

CZLH520 Straw Pellet Machine For Sale
Production: 2.8-3.0T/H
Power: 132 kW
As a popular choice for medium-to-large production lines, this machine offers high efficiency, flexibility and excellent eco-friendly performance. It can reduce your production energy consumption by up to 20%.

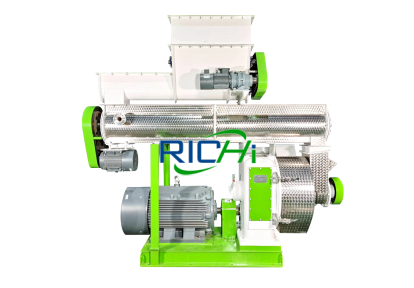

CZLH678 Straw Pellet Machine For Sale
Production: 4.0-5.0T/H
Power: 185 KW
This pellet machine usually comes as a customised solution. Due to the enhanced adaptability and longer operating time, it is suitable for various large-scale biomass pellet production lines.

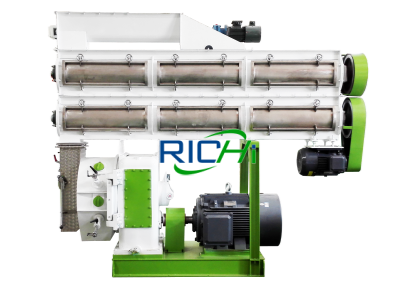

CZLH768 Straw Pellet Machine For Sale
Production: 6.0-8.0T/H
Power: 250 kW
As a fully customisable machine, it delivers exceptionally high output, adapting to diverse, complex materials and operating environments. It guarantees both quantity and quality.

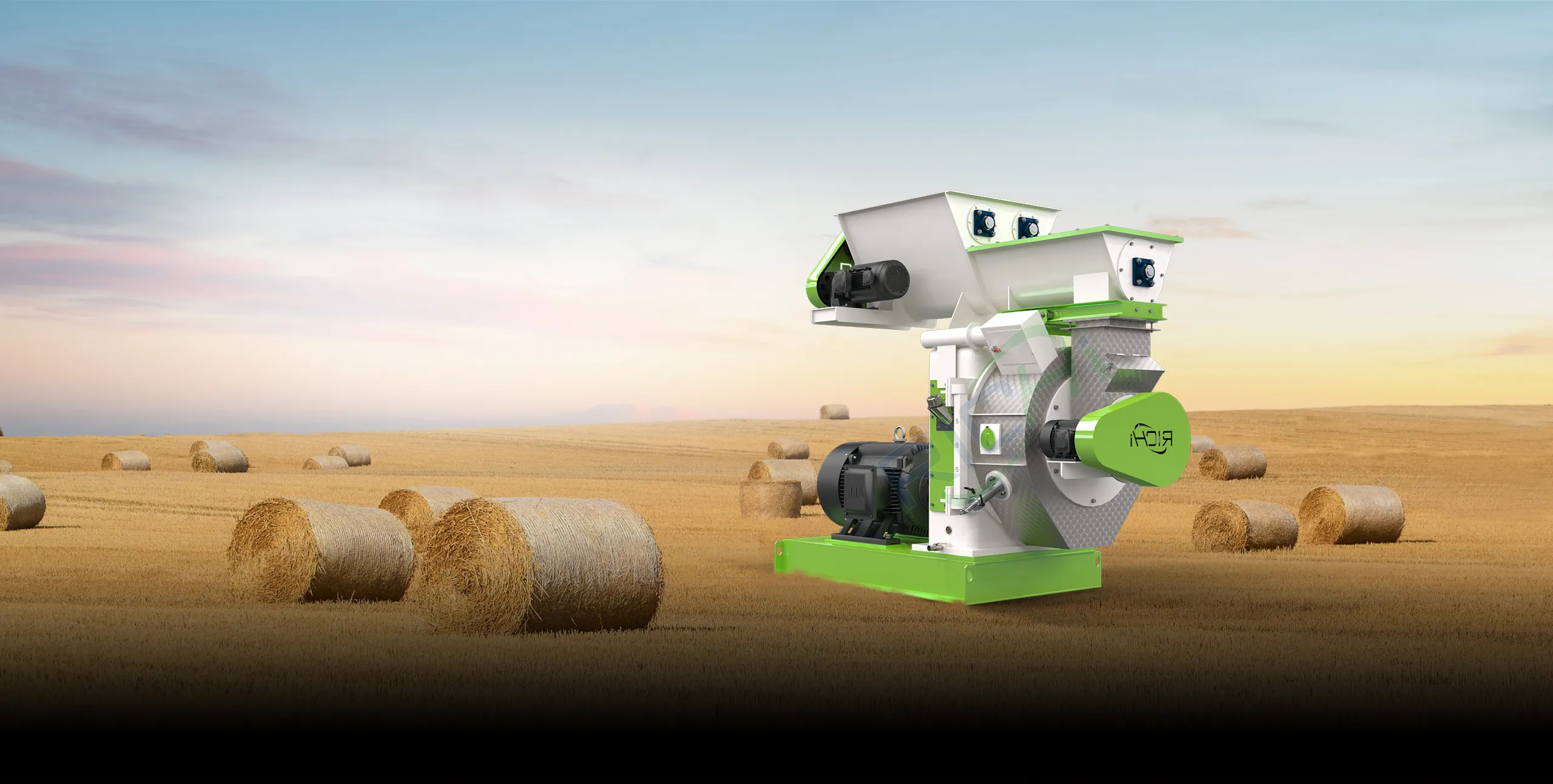

Straw Pellet Machine Display
Following years of R&D and customer service, RICHI has created a meticulously designed and upgraded straw pellet machine. It can produce straw or grass pellets with diameters ranging from 4mm to 12mm. Every component and structure undergoes rigorous testing and adjustment. This ensures you get the best possible production experience.
Materials for Straw Pellets
Straw pellets can be produced from a variety of raw materials, and our machines are designed to accommodate diverse production inputs for global customers. They feature numerous convenient parameter adjustments, allowing customization based on your specific raw material formulations and ratios. Regardless of your chosen production materials, optimal results are achievable.
If you have any specialised customisation needs, we can design and manufacture tailored solutions for your specific requirements.
• Cotton stalks
• Wheat straw
• Corn stalks
• Oat straws
• Rice straw
• Rapeseed straw
• Hay
• Soybean straws
• Corn
• Corn cobs
• Rice husk
• Alfalfa
Service Achievements
We have accumulated extensive service experience through years of providing customers with efficient straw pellet machines and production lines. By incorporating customer feedback into continuous research and development, we optimize and upgrade our equipment and service to meet increasingly sophisticated production demands.
100+
Regions
We have successfully partnered with numerous countries and regions worldwide, designing and implementing multiple straw pellet machines that are now operational.
1000+
Clients
RICHI has served thousands of clients, delivering timely responses and expert straw pellet production solutions. Client satisfaction remains our unwavering commitment.
2000+
Projects
Our team has extensive experience in successfully designing and delivering numerous projects, which meet clients needs and maximise straw pellet production efficiency.
Global Cases
Our straw pellet machines for sale have been successfully exported to countries such as India, Germany, Australia, Canada and Malaysia, and have received positive feedback from customers. Below are details of projects from worldwide locations that have delivered outstanding production results for our clients.
1-2 t/H Straw Pellet Machine for Sale Uzbekistan
The client for this project possesses substantial quantities of corn stalks raw material and requires the production of straw feed pellets with a diameter of 6mm. We supplied highly efficient and flexible straw pelletizer, successfully fulfilling their production requirements.

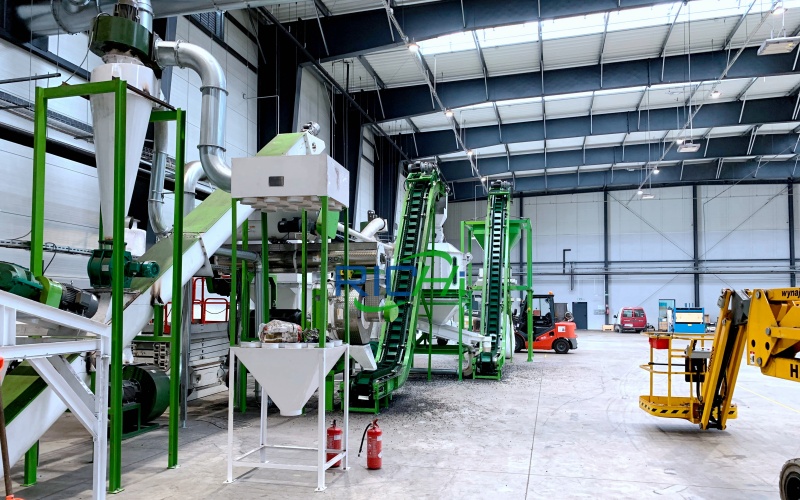

3 T/H Straw Pellet Machine for Sale Argentina
The supply of raw materials is substantial, and the customer requires high-capacity straw pellet mill to produce rice straw feed pellets with a diameter of 6-8mm. Therefore, we provided on-site guidance and successfully assisted the customer in establishing production operations.
4 T/H Straw Pellet Machine for Sale South Africa
The customer for this project possesses ample raw materials for producing straw feed pellets sized 6-8mm. However, they lacked formal factory facilities for actual operation. Our engineers provided on-site guidance, resulting in a successful project for the customer and achieving favourable economic returns.

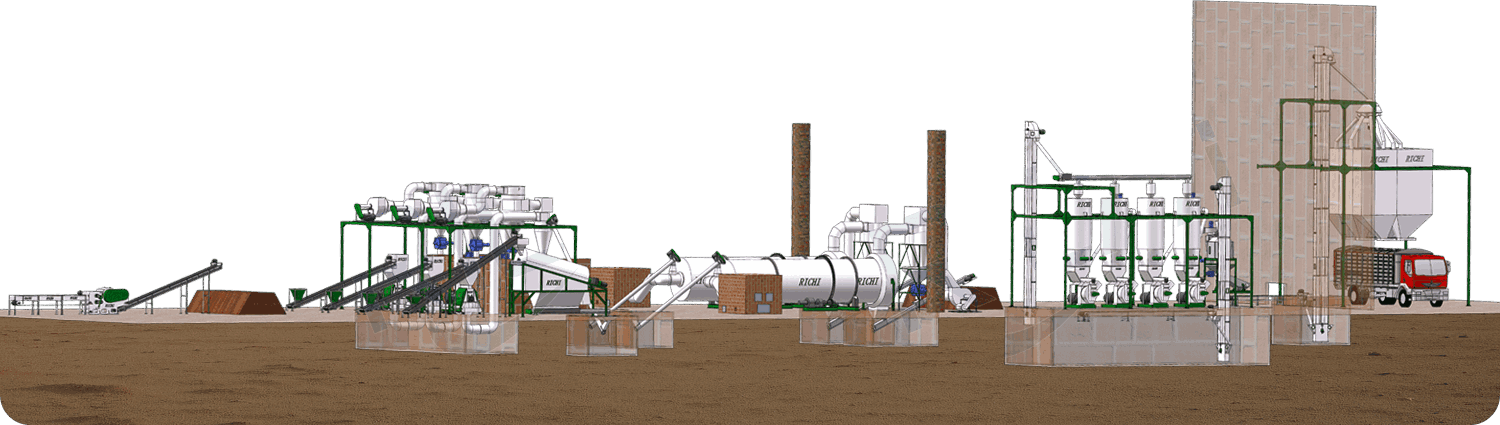

straw Pellet Production Line
In addition to professional straw pellet machines, we provide straw pellet production line ranging from 500 KG/T to 100 T/H. It is suitable for producing straw pellets of various specifications and raw materials. Choosing RICHI turnkey solution enables your project to start production at the fastest pace with complete peace of mind.
The above represents our standard production line design for regular output levels. Should you require higher production capacity, we can provide customized solutions tailored to your specific needs. Feel free to inquire at any time.
Turnkey solution
Based on years of customer service experience, we have developed a comprehensive project service system. This system can design production line layouts tailored to your manufacturing needs and operational demands, while providing efficient straw pellet machine, project construction, and full after-sales support. Our turnkey solutions deliver production lines that are fully operational and ready for action.
Production Line Design
According to your needs, raw materials, and site conditions, our engineers will develop a total production line plan. This will lay the foundation for high investment returns.
Equipment Matching
We will match the entire set of production equipment,such as straw pellet machine to your project specifications. These include raw material processing, granulation, cooling, and packaging.
Smart System Integration
Considering your production line’s level of automation and capacity, our technicians will connect all process stages to ensure they remain under system monitoring.
Construction on Site
Once the initial preparations are complete, our engineering team will arrive at your site to assist with on-site construction, ensuring the plant layout is optimized.
Installation and Commissioning
Once the equipment have arrived on site via our rapid delivery system, our operators will install them and commission the circuits to ensure optimal performance.
Training Program
RICHI machines are designed for user-friendly operation, and our experts will provide your operators with systematic training, facilitating your subsequent production.
Production Trials
Before delivering the project, we will conduct operational testing of the production line. The parameters and details will be refined to ensure perfect production outcomes.
Project Delivery
Following the test run of the production line, we will invite you to conduct a final acceptance inspection. Upon this, you can start high-quality pellet production.
Full-Process Service
All RICHI products carry a one-year warranty. If you experience any quality issues or production problems, we will respond quickly and offer solutions.
Long-Term Support
In addition to one-stop service, we also provide ongoing online technical assistance. Feel free to get in touch with any technical enquiries at any time.
ABOUT RICHI
RICHI Machinery, established in 1995, is a leading brand in the pellet machinery industry. For years, we have been dedicated to the research, development, and manufacturing of straw pellet machine. Prioritizing our customers’ interests, we have successfully delivered premium straw pellet production solutions to clients worldwide.
Customized Solutions
We operate a professional large-scale pellet machinery manufacturing facility. Our straw pellet machines for sale can meet all your production needs. Additionally, our dedicated sales and engineering teams provide real-time guidance and customized solutions tailored to your requirements.
Premium After-Sales Service
Every straw pellet machine we sell comes with a one-year warranty. Our dedicated team provides comprehensive support from equipment consultation to operational implementation. Should any issues arise during use, feel free to contact us anytime for practical solutions.
Online and Offline Services
As a professional manufacturer of granulation machinery, we provide multi-tiered technical suppor, as well as detailed installation drawings and video manuals. For the installation and adjustment of production lines, we dispatch professional engineers to provide on-site guidance and training.
Rapid Spare Parts Supply
Our straw pellet machine components are built for durability. Additionally, we’ve established a global spare parts supply system. Leveraging warehouses across multiple countries, this system ensures swift delivery of wear-prone components, preventing production downtime.
In addition to providing superior-quality equipment and attentive service, we also offer competitive prices. Contact us now to arrange a free consultation and equipment trial.
Frequently Asked Questions
RICHI straw pellet machines have successfully provided high-quality production services to customers worldwide. Our FAQs cover common questions about raw materials, equipment operation, and after-sales service. If you have concerns in these areas, you can find the answers below.
–
How does a straw pellet machine work?
The straw pellet machine is the core equipment for resource utilization of straw.
The general working principle involves mechanically compressing pre-treated straw feedstock into pellets. Our rollers and dies are made of high-hardness alloy steel, enabling the compression of feedstock into higher-density pellets.
During high-temperature compression, the straw releases lignin, which is a natural adhesive that enhances pellet formation rates. Pellets produced this way deliver higher calorific value and offer improved transportability and storage. They are commonly used for combustion heating, power generation plants, industrial boilers, and similar applications.
–
What advantages do straw pellets offer compared to traditional fuels?
Straw pellets are formed by compressing large quantities of straw under high temperatures. Consequently, they possess a higher calorific value than traditional fuels. Their heat value ranges from about 3500 to 4200 kcal/kg, exceeding the combustion heat of firewood.
Additionally, they produce lower pollution emissions, qualifying as a low-carbon, environmentally friendly clean energy source. Straw pellets burn with nearly zero carbon dioxide emissions and very low sulfur content. When used with specialized combustion stoves, their thermal efficiency can exceed 85%.
Thus, straw pellet energy offers both economic benefits and environmental protection, making it an ideal substitute for coal and other wood-based fuels.
–
What pretreatment is required for raw materials used in straw pellet production?
High-quality straw pellet production is inseparable from efficient raw material processing. First, it is essential to understand that straw materials suitable for pelletization must meet appropriate moisture content, fine particle size, and reasonable formulation ratios. How are these conditions achieved? Through three steps: crushing, drying, and conditioning.
Due to the long fibers in straw, a straw crusher is first used to break the straw into 3-5 cm pieces. If the moisture content exceeds 18%, a dryer is required to reduce it to 15%-18%. If the material is too dry and has low binding strength, a small amount of water should be added to improve the forming rate.
The pre-treatment stage directly impacts the hardness and output of the final pellets. Additionally, incorrect raw material handling can lead to equipment wear. We recommend equipping your facility with high-efficiency raw material processing equipment. We can provide complete production line equipment, including high efficient straw pellet machine, automated conveying systems, to enhance your production efficiency.
–
How to choose the right straw pellet machine model for your needs?
We recommend considering the following three aspects:
Raw Materials and Production Capacity
Select based on the features of your raw materials and required output. For instance, corn stalks, wheat straw, and rice straw have longer fibers than rice husks or cottonseed hulls, necessitating a high-strength pellet machine. Next, consider production capacity. Small flat-die pelletizers suitable for individual farmers and small workshops. Ring-die pelletizers better suited for medium to large-scale industrial production.
Equipment Advantages
Beyond raw material and output requirements, prioritizing energy-efficient production equipment is crucial. Our straw pellet machines are manufactured using cutting-edge technology. They guarantee optimal ring die compression ratios. Rotors undergo professional dynamic balancing tests for verification and optimization, ensuring peak rotational speeds.
After-Sales Support
Superior after-sales service safeguards your production operations. Therefore, we recommend selecting manufacturers offering technical support to minimize maintenance costs. RICHI Manufacturing possesses years of service experience, providing you with the best after-sales assurance and long-term online support.
–
How should finished straw pellets be stored effectively to prevent moisture?
Straw pellets are formed by high-temperature steam compression in straw pellet machine and thus contain some moisture. They should ideally be stored in a cool, dry environment away from direct sunlight. The storage humidity should be kept below 60%.
Additionally, we recommend using double-layer laminated woven bags for sealed packaging. If pellets become damp or moldy, secondary drying can partially restore their properties, though calorific value will decrease by 5%-10%. If budget permits, consider constructing dedicated moisture-proof storage facilities.
