Sawdust Dryer Machine For Sale
Our sawdust dryer machine for sale can dry powdered materials with high moisture content to ideal standards. This industrial-scale equipment is suitable for sawdust pellet production lines, wood chip pellet plants, and biomass pellet plants with capacities ranging from 0.5 to 40 T/H. We also offer custom-made dryers and turnkey production line solutions.
Drying Temperature : 500-700 °C
Drum Speed: 3–12 rpm
sawdust dryer Operation Video
We offer versatile sawdust dryer machine for sale. This unit is positioned at the pre-processing stage of wood pellet production line, typically installed horizontally. We have designed a control system, which enables you to monitor internal temperatures and adjust drying levels in real time. This stage requires a hot air furnace to supply heated air.
Parameters of sawdust dryer machine for sale
In order to meet the needs of as many customers as possible, we have designed multiple model variants of this equipment. The structural designs of the different models vary slightly. For example, while the standard production capacity features a single drying cylinder, we can provide a customized three-layer configuration. For other special parameter requirements, we can provide dedicated customization.
| Model | φ0.6*6 | φ0.8*8 | φ1.2*12 | φ1.5*15 | φ1.8*18 | φ1.8*20 | φ1.8*36 | φ1.8*12*3C | φ1.8*24*3C |
|---|---|---|---|---|---|---|---|---|---|
| Diameter (m) | 0.6 | 0.8 | 1.2 | 1.5 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Length (m) | 6 | 8 | 12 | 15 | 18 | 20 | 36 | 12 | 24 |
| Number of Layers | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 3 | 3 |
| Drum Rotation Speed (rpm) | 3~12 | 3~12 | 3~12 | 3~12 | 3~12 | 3~12 | 3~12 | 3~12 | 3~12 |
| Inlet Air Temperature (°C) | 400~500 | 400~500 | 400~500 | 400~500 | 400~500 | 400~500 | 400~500 | 400~500 | 400~500 |
| Outlet Air Temperature (°C) | 70~80 | 70~80 | 70~80 | 70~80 | 70~80 | 70~80 | 70~80 | 70~80 | 70~80 |
For wood pellet plants, a complete process configuration is better for achieving long-term stable production. Therefore, in addition to dryers, we also provide a range of other raw material processing equipment. This includes sawdust hammer mill, sawdust pellet mill, coolers, screener, bagging scales and more.
What raw materials can it process?
Wood pellet production utilizes diverse raw materials, including various types of raw timber, wood processing waste, discarded boards, and more. However, some shredded wood contains excessively high moisture content, rendering it unsuitable for direct pelletization. This sawdust dryer machine for sale effectively dries crushed wood and other organic materials, meeting various drying standards.
Advantages of the sawdust dryer machine for sale
This dryer has a scientifically designed structure that ensures rapid, uniform drying. Constructed entirely from cast steel, it is highly durable and resistant to wear, extending its service life. Its robust material enables wood chip drying temperatures of 500–700°C, ensuring highly efficient performance.
Support Rollers
Support Rollers
Since the drying drum is usually installed horizontally, it needs to be fastened securely. This cast steel assembly firmly anchors the drying drum in place. During operation, the central roller rotates with the dryer.
Drive Gear Ring
Drive Gear Ring
This roller ring is made of cast steel, offering enhanced hardness and wear resistance. It not only secures the drum but also provides extended service life.
Drying Drum
Drying Drum

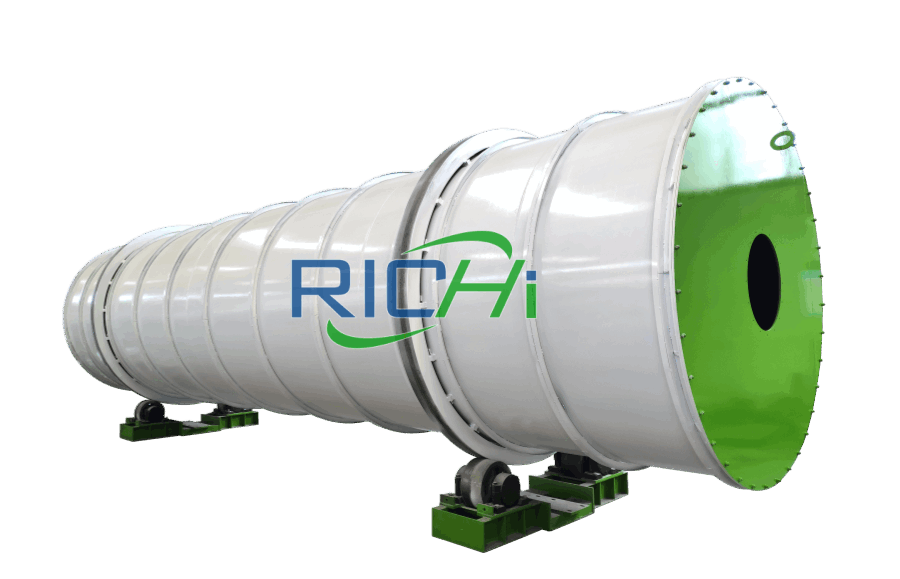

The drum wall is rigid and heat-resistant, with a thickness of 15 mm. It dries materials through rotation. We offer single-layer and triple-layer configurations. The triple-layer drying drum saves floor space and reduces site construction costs.
Baffle Plate
Baffle Plate
Each layer of the drying cylinder is equipped with baffle plates on the inner side to facilitate efficient drying. With a thickness of 6 mm, they offer enhanced wear resistance, reducing replacement costs.
Fan
Fan
Installed behind the drying cylinder, it provides airflow to lift the material. Working in conjunction with the cylinder and scraper blades, it achieves more effective drying. It also extracts the dried material. Notably, the fan for the three-cylinder dryer is larger.
Hot Air Furnace
Hot Air Furnace
It connects to the dryer via ductwork, supplying hot air to the dryer. The structure typically consists of refractory bricks and steel reinforcement. With its simple design, it can be self-built to reduce costs. The furnace can burn wood, fuel oil, gas, pellets, and other materials.
sawdust dryer Applications
Our sawdust dryer machine for sale is an industrial-grade drying equipment. It is not only suitable for various wood drying applications but can also dry straw, hay, rice husks, feed, and more. Our customized solutions meet your diverse drying needs.
Comprehensive Service
In addition to high-efficiency drum dryers, we also offer other types of drying equipment. For example, mesh belt dryers for extruded feed production, belt dryers for food applications, and more. We offer a wide range of pellet production line solutions.
Sawdust Drying
As highly efficient dryer, it is commonly used in sawdust pellet production lines. This stage is positioned between crushing and pelletizing, drying crushed sawdust to an ideal moisture content of 15%-18% to enhance pellet formation.
wood pellet plant
This large-scale dryer is suitable for pellet plants and integrated production solutions. Its high-efficiency drying capacity enable simultaneous drying of larger volumes of sawdust and wood chips, boosting production efficiency.
biomass Pellet plant
Its versatile performance also extends to drying other biomass materials. Whether processing straw, forage, rice husks, or feed pellet production lines, it adapts seamlessly. In such scenarios, it significantly increases operational utilization.
Global CASES
Our drum dryers serve customers in over 150 countries and regions worldwide. Below is an overview of projects incorporating dryer equipment, including both individual dryer sales and complete pellet production line solutions.

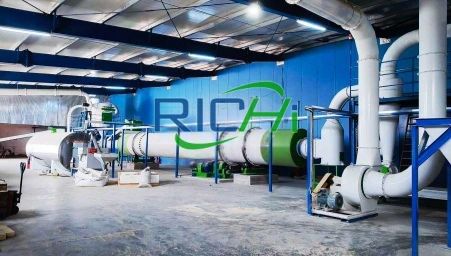

Sawdust Dryer Machine for Sale in Romania
The customer’s wood pellet plant has a production capacity of 2 T/H. We provided a single-layer drum dryer. Its large capacity and high-efficiency drying capability perfectly match their production line.

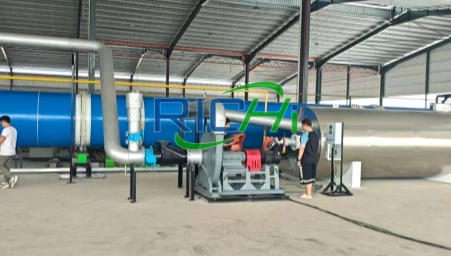

Wood Pellet Production Line Project in Malaysia
This single-layer dryer is designed for drying wood chips and empty fruit bunch (EFB) fibers. The project also includes a drum chipper and EFB pellet machine, constituting a customized production line.

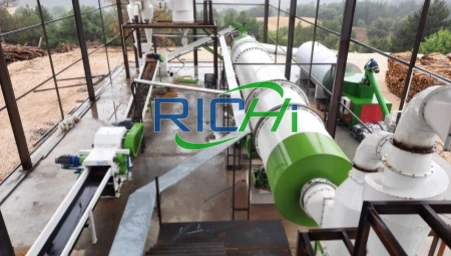

Industrial Sawdust Dryer for Sale in South Africa
Our client operates a 2 T/H wood pellet plant processing high-moisture waste wood, needing a complete raw material processing section. This project includes wood chipper, drying drum, wood pellet machine, and more.

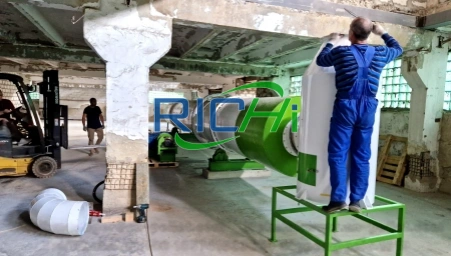

Rotary Sawdust Dryer Machine for Sale in Moldova
In this project, our client utilized a self-built hot air furnace to reduce time and investment costs. We supplied a rotary dryer and burner, fueled by waste materials. This project also including a wood chip pellet machine.

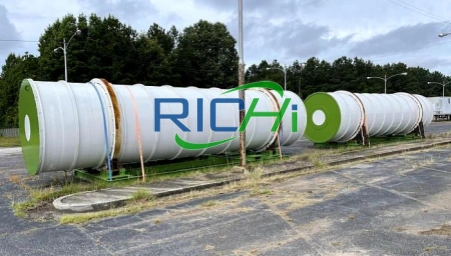

10 T/H Wood Pellet Plant in the United States
This project is a turnkey wood pellet plant solution. We provided the client with two drying drums, each configured with three layers. Additionally, the configuration includes sections for crushing, pelletizing, and packaging.

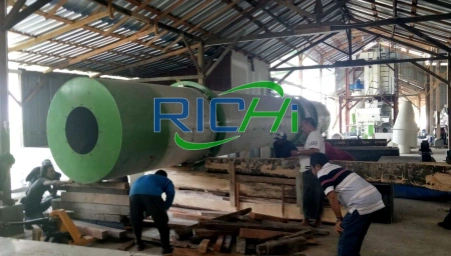

Large Capacity Sawdust Dryer for Sale in Indonesia
Given the client’s large site area, a single-layer drying drum and wood chip hammer mill was selected. Heat is supplied via a self-built hot air furnace. This production line solution included on-site installation by our team.
Service Programs
Personalized Services
About the sawdust dryer machine for sale, we provide a range of specialized services. Through a combination of pre-sales and after-sales support, both online and offline, we ensure you have the best possible production experience.
Fast Shipping
We have set up a dedicated shipping system. Each chipper is shipped directly from the factory, which significantly reduces transit time.
Installation Guidance
Each shipment includes a specialized user manual and video tutorials, which help you quickly master the equipment.
Free Consultation
We offer free equipment consultation. Tell us your target production capacity and actual crushing requirements, for tailored solutions and quotations.
Long-Term Warranty
Each biomass sawdust drying machine comes with a one-year warranty, ensuring prompt and effective resolution for any quality issues.
Customized Solutions
For specialized materials and sizing needs, we deliver bespoke equipment customization to ensure optimal production outcomes.
Spare Parts Supply
We have established a global spare parts network system. Leveraging a national warehouse system, it enables rapid component delivery to minimize downtime risks.
Frequently Asked Questions
We understand your concerns when selecting a dryer, including equipment selection, configuration, and applicable scenarios. The detailed answers below will help you gain a deeper understanding of this equipment. We provide comprehensive pre-sales and after-sales service, so you can choose with confidence.
What other biomass materials can the sawdust dryer machine handle?
+
Our equipment can process any biomass material requiring drying. This includes not only various wood materials but also forage grass, hay, straw, various crop husks and fruit shells, and even feed ingredients.
What moisture content can the wood sawdust dryer achieve?
+
For wood pellet production, the ideal moisture content is 15%-18%. Therefore, this equipment can dry wood with moisture levels above this range to the desired level. For other material drying requirements, adjustments can be made via the controller. The dryer is equipped with a variable frequency drive for convenient adjustment of drying time.
What heat sources can be used with this sawdust dryer machine for sale?
+
Common heat sources for this dryer include biomass, fuel oil, natural gas, and steam boilers. Among these, biomass combustion heating is the most economical and environmentally friendly option. We can also provide biomass burners. These units generate heat for the drying drum by burning waste wood, straw, and similar materials. They automatically adjust flame intensity to ensure stable heat supply.
