Pellet Cooling Machine
The pellet cooling machine is specifically designed for cooling pellets. It achieves rapid and uniform cooling through convection between cold air and the pellets. We offer customized solutions and a variety of discharge options. It delivers gentle cooling for feed pellets while ensuring effective shaping of biomass pellets. The temperature of the cooled pellets is 3-5°C higher than room temperature.
Cooling Time: 6–15 minutes
Production capacity: 1-40 T/H
Pellet Cooler Operation
In production lines, pellet cooling machine often pairs with vibrating screen to save space and improve efficiency. This octagonal unit features a sliding valve discharge system. This design ensures gentle discharge and smooth material flow, minimizing pellet breakage. We also offer impeller-type and flip-valve discharge options.
Parameters of pellet cooling machine
We have designed this counterflow pellet cooler in a range of models with different production capacities. Thanks to its high level of automation, it is suitable for feed plants, biomass pellet plants, fertilizer plants and other facilities of various sizes. The following are the basic specifications and production capacities. For other technical requirements, we can provide customized solutions.
| Model | SKLF11*11 | SKLF14*14 | SKLF17*17 | SKLF20*20 | SKLF24*24 | SKLF28*28 | SKLF32*32 |
|---|---|---|---|---|---|---|---|
| Output (T/H) | 1-3 | 3-5 | 6-8 | 8-13 | 13-20 | 25-30 | 30-40 |
| Power (kW) | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 |
| Cooling time (Minutes) | 6–15 | 6–15 | 6–15 | 6–15 | 6–15 | 6–15 | 6–15 |
| Cooling results | Room Temperature +3–5°C | Room Temperature +3–5°C | Room Temperature +3–5°C | Room Temperature +3–5°C | Room Temperature +3–5°C | Room Temperature +3–5°C | Room Temperature +3–5°C |
We also offer two drive options for specialized requirements: pneumatic and hydraulic. Additionally, larger models of the cooler are available with an electric rotating discharge plate. This feature ensures consistent material levels inside, resulting in more uniform cooling and higher production efficiency.
Global CASES
Our pellet cooling equipment is exported to more than 150 countries and regions worldwide. This cooling system is used in a wide range of projects, including wood chip, straw, and other biomass pellet projects, as well as grass pellet and animal feed projects.These series of projects play a vital role in ensuring the quality of the pellets, delivering strong returns on investment to our customers.
2-2.5 T/H Pellet Cooler for Sale in Romania
This project features a flexible wood pellet production line, including a high-efficiency wood pelletizer and a cooling system. The cooler is integrated with a vibrating screen, saving space and improving production efficiency.
20 T/H Wood Pellet Cooler for Sale in Bangladesh
The customer is a large wood pellet plant that has adopted a three-stage vertical production line, and multiple wood chip pelletizers. This cooler is a high-capacity model equipped with a high level of automation and a pellet screening system.

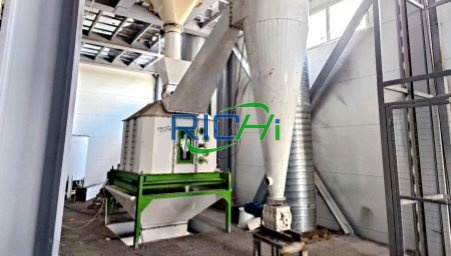

5-6 T/H Fish Feed Cooler machine for Sale in Russia
This is a fish feed production project, for which we provided a customized production line solution. The production line features a multi-stage design, with the feed cooler located at the end of the line to ensure feed quality.

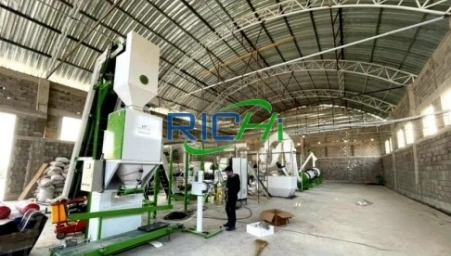

2-3 T/H Grass Pellet Cooler for Sale in Argentina
This is a turnkey grass pellet plant project, primarily designed to produce ruminant feed for sale. The project includes an alfalfa pellet machine equipped with a conditioner, as well as a cooler with screening capabilities.
5 T/H Sunflower Seed Shell husk Project in Kazakhstan
We provided our client with a sunflower seed shell pellet production line. The project also includes highly efficient cooler and husk pellet machine. With a simple and efficient process layout, this project offers a high return on investment.

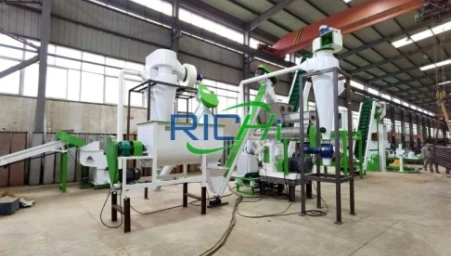

3-4 T/H Straw Pellet Cooling machine for Sale in USA
For this project, we provided the customer with a complete straw pellet production line for making animal feed. The line includes a slide-gate counter-current cooler equipped with a vibrating screen, as well as a wheat straw pellet mill.
What types of pellets can it cool?
This pellet cooling machine can be used to cool various types of pellets. In addition to common biomass pellets and animal feed pellets, it can also be used for organic fertilizer pellets, chemical pellets, food pellets, and more. We can provide customized cooling machines to meet your diverse production needs.
Advantages of counterflow pellet cooler
This counter-flow cooler features an innovative structural design and offers multiple technical advantages. It helps pellets set quickly, achieving rapid and uniform cooling. The pellet cooling machine is highly energy-efficient, and its octagonal design and curved discharge hopper minimize material residue.
Cooling Chamber
Cooling Chamber
This chamber features an enlarged design to increase production capacity. Compared to the standard four-corner structure of conventional coolers, this octagonal design ensures more uniform pellet dispersion, enhances cooling efficiency, and minimizes material residue.
Feed Inlet
Feed Inlet
The feeder of this equipment is made of high-temperature-resistant material, capable of handling high-temperature pellets immediately after granulation. A dedicated micro-motor is installed inside to ensure stable operation of the feeder and facilitate smoother material feeding.
Spreader Plate
Spreader Plate
This device is located at the feed inlet. As it rotates, it evenly disperses the incoming pellet material throughout the interior of the cooler, thereby enhancing the cooling effect. It is commonly used in large-scale coolers to improve production efficiency.
Discharge Gate
Discharge Gate
This discharge mechanism features a flip-type gate located at the bottom of the hopper. Driven by a motor, it can flip open to ensure rapid and even discharge. We also offer a paddle-type discharge option. For larger-sized equipment and feed pellets, we can configure a slide-valve type discharge gate.
Motor
Motor
This cooler is equipped with a Siemens three-phase asynchronous motor, ensuring more stable operation. In addition to the main motor, the unit includes other specialized small motors located at the feeder and discharge outlet, respectively, to enhance feeding and discharge efficiency.
Viewing Ports
Viewing Ports
Unlike conventional coolers, this unit features multiple viewing ports integrated into its housing. These allow you to monitor internal operations at any time and facilitate subsequent cleaning and maintenance tasks.
pellet cooling machine Applications
This pellet cooler is a high-efficiency, industrial-grade machine. Its versatility in handling pellets makes it suitable for a wide range of pellet processing applications, including biomass pellets, feed, cat litter, and organic fertilizer, meeting the demands of large-scale production.
Comprehensive Service
We not only provide pellet coolers but also design other types of processing equipment, such as mixers, crushers, dryers, screeners, and packaging scales. We offer customization services to meet a wide range of production needs.
Feed Pellet Cooling
The eight-sided design of this machine is ideally suited for feed pellet cooling. As a feed cooler, it is typically equipped with a slide-gate discharge plate to ensure gentle unloading.
Biomass Pellet Cooling
In our many biomass pellet production projects, this cooler often plays a crucial role. It ensures the pellets maintain optimal structural integrity, facilitating long-term storage.
Cat Litter Pellet Cooling
It is also frequently used in cat litter production lines. Its rational structural design and gentle discharge method ensure efficient cooling while preventing damage to the cat litter pellets.
Service Programs
Personalized Services
About the industrial pellet cooling machine, we provide a range of specialized services. Through a combination of pre-sales and after-sales support, both online and offline, we ensure you have the best possible production experience.
Fast Shipping
We have set up a dedicated shipping system. Each cooler is shipped directly from the factory, which significantly reduces transit time.
Installation Guidance
Each shipment includes a specialized user manual and video tutorials, which help you quickly master the equipment.
Free Consultation
We offer free equipment consultation. Tell us your target production capacity and actual cooling requirements, for tailored solutions and quotations.
Long-Term Warranty
Each pellet cooling equipment comes with a one-year warranty, ensuring prompt and effective resolution for any quality issues.
Customized Solutions
For specialized materials and sizing needs, we deliver bespoke equipment customization to ensure optimal production outcomes.
Spare Parts Supply
We have established a global spare parts network system. Leveraging a national warehouse system, it enables rapid component delivery to minimize downtime risks.
Frequently Asked Questions
We have compiled a list of frequently asked questions about this pellet cooler, which should help you to better understand the product. Drawing on years of experience in customer service, we are here to answer any questions you may have. Please feel free to contact us at any time, if you would like more information about this equipment.
How to choose the right pellet cooling machine?
+
We recommend that you first consider production capacity. We offer pellet coolers with capacities ranging from 1 to 40 T/H. Selecting a model with the appropriate capacity will help avoid production issues. If you need to produce hard wood pellet feed, we recommend choosing a high-intensity cooling method and a flip-gate discharge system.
For softer feed pellets and aquaculture feed, we recommend a slide-gate discharge system. This discharge method is gentler, helping to prevent damage to the feed pellets and avoid unnecessary losses.
Do different discharge methods affect cooling performance?
+
Not significantly. The discharge methods we offer are solely for material discharge and do not affect cooling capacity. However, different discharge methods are suitable for different production capacities and raw material types.
For cooling hard pellets at basic production capacities, you can choose between the flap-type and impeller-type discharge methods. These options ensure production efficiency while reducing costs. For pellets such as feed and cat litter, we recommend the slide-gate discharge method to help preserve pellet integrity. Additionally, the slide-gate method is better suited for large-scale pellet production facilities.
Is this pellet cooling machine designed to be energy-efficient?
+
Our pellet cooler is designed to be energy-efficient and environmentally friendly. Compared to pellet mills, it consumes less energy. It works by cooling the pellets through airflow, eliminating the need for additional cooling or heating systems. This ensures the pellets maintain a stable structure. It offers better value for money and a higher return on investment.
Can we provide complete pellet cooling systems and production line solutions?
+
Absolutely. As a leading supplier of pelletizing equipment, we offer complete pellet cooling systems as well as customized pellet production solutions. Typically, the cooler can be integrated with a vibrating screen to save space and improve production efficiency. To meet our customers’ needs, we provide a variety of customized solutions. (View YouTube)
