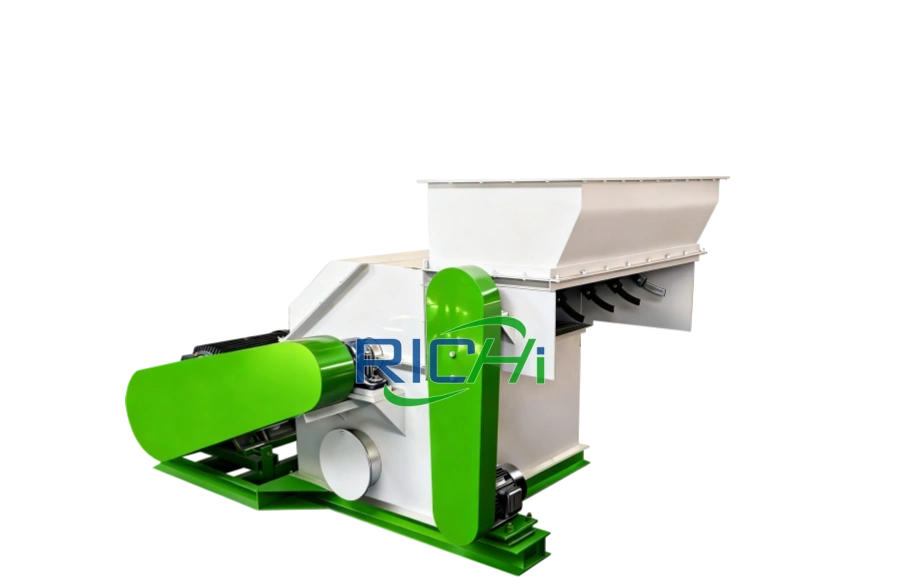

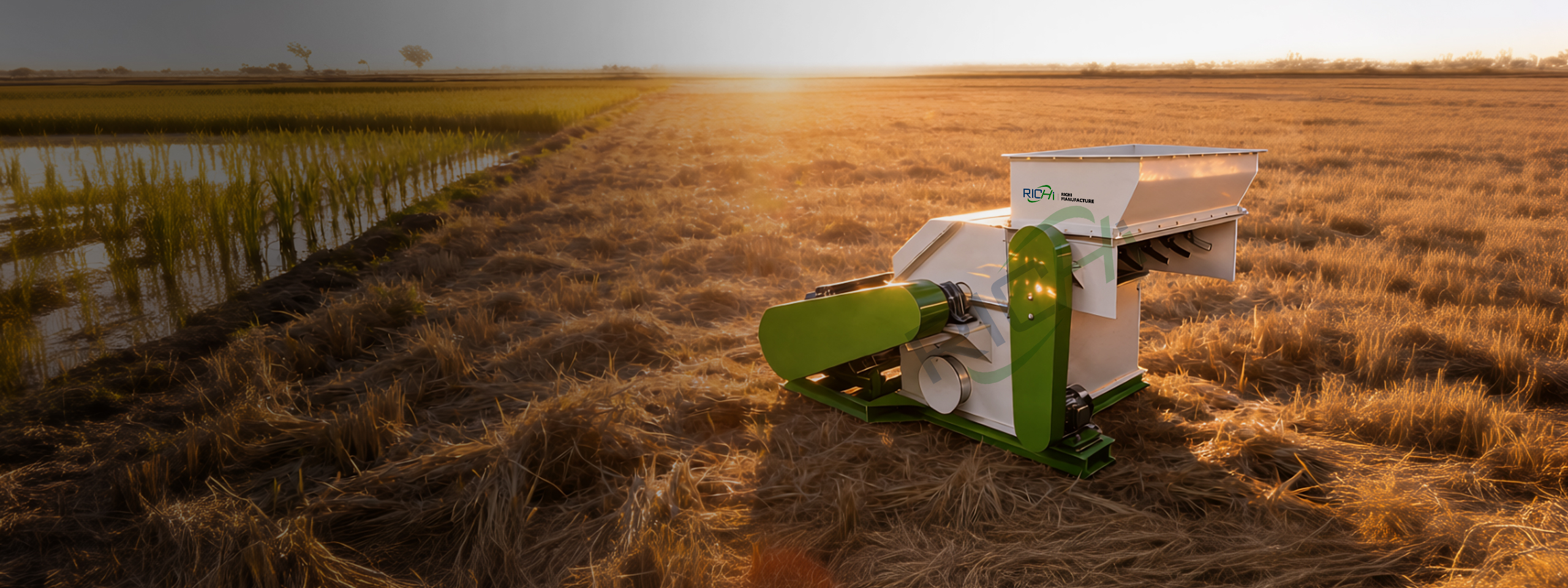

Paddy Straw Shredder Machine
This straw shredder is specifically designed to shred unbaled straw, corn stalks, and other crop residues. Equipped with a powerful shredding system and a high-capacity design, it ensures consistent and efficient output. Since straws are often baled, we also offer disc bale breakers. We provide a variety of customized shredding solutions to meet your diverse production needs.
Capacity: 0.5–6.0 T/H
Crushing Result: 0.5–20 mm
Straw Shredder Operation
The above outlines the straw shredding processes suitable for different sizes. In addition to this paddy straw shredder, we also offer disc shredders that are specifically designed to break up baled straw. Together, these machines can shred straw in various forms. This page primarily showcases specialized equipment for loose straw. You are welcome to view our disc baler shredders at any time.
Parameters of paddy straw shredder machine
This shredder is available in multiple models, each with different production capacities and specifications. As part of a pellet production line, it is suitable for pellet plants with capacities ranging from 0.5 to 40 T/H. We also offer customization services to meet a wider range of straw shredding needs.
| Model | 9FB56*40 | 9FB56*60 | 9FB60*80 | 9FB60*100 | 9FB60*120 | 9FB60*150 |
|---|---|---|---|---|---|---|
| Rotor Dia. (mm) | 560 | 560 | 600 | 600 | 600 | 600 |
| Power (kW) | 22 | 37+3 | 55+3 | 75+3 | 90+3 | 55+55+3 |
| Rotational Speed (rpm) | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Crushing Chamber Width (mm) | 400 | 600 | 800 | 1000 | 1200 | 1500 |
| Capacity (T/H) | 0.5-0.8 | 1.0-1.5 | 2.0-2.5 | 2.5-3.0 | 3.0-4.0 | 5.0-6.0 |
The above outlines the basic specifications of the rice straw shredder. To accommodate practical application scenarios, shredders with a capacity of less than 1 T/h typically have no forced feeding mechanism. With the continuous advancement of RICHI technology, this equipment can now meet a wider range of specifications. Therefore, the final specifications will be subject to the actual quotation, to ensure it meets your production requirements.
Advantages of paddy straw shredder machine
Through innovative R&D and structural optimization, this equipment offers multiple technical advantages. Rice straw shredding often presents a low output challenge. Therefore, the shredding chamber has been enlarged to increase output by 50%. The simple structural design and robust components facilitate operation and maintenance.
Feed inlet
Feed inlet
The enlarged feed inlet improves feeding speed and smoothness. Additionally, curved deflector plates can effectively prevent the accumulation of lightweight materials. This feed inlet is equipped with a dedicated motor to ensure smooth feeding.
Curved Feeding Plate
Curved Feeding Plate
This feed plate is located inside the feed inlet and is secured with bolts for easy removal and replacement. Its rotation effectively prevents material entanglement. It also significantly increases feeding speed, thereby boosting unit production capacity.
Crushing Chamber
Crushing Chamber
In order to further increase the unit production capacity for rice straw shredding, the shredding chamber is larger. Compared to its droplet-type shredder, its production capacity has increased by 1.5 times. Additionally, it features SKF bearings and a belt drive system to ensure long-term, stable operation.
Screen Mesh
Screen Mesh
For enhanced durability and reduced maintenance costs, we have specifically reinforced the screen mesh. This makes it better suited to withstand the wear and tear caused by rice straw shredding. Additionally, to meet customer needs, we offer custom mesh sizes ranging from 0.5 to 20 mm. Typically, mesh sizes between 2.0-6.0 mm are considered ideal.
Discharge Port
Discharge Port
The discharge port is located at the bottom, facilitating material discharge and integration with subsequent processes. Typically, there are two discharge methods to choose from: pneumatic discharge and gravity discharge. Generally, automated production lines opt for a pneumatic discharge system. In simpler systems, materials can also be discharged naturally by gravity.
Power System
Power System
We equip every rice straw shredder with a Siemens Bede motor. These motors provide powerful drive for the equipment’s operation. In addition, each rotor is tested on a dynamic balancer and professionally corrected to ensure long-term, stable operation of the equipment.
What raw materials can it process?
This industrial-grade paddy straw shredder is capable of processing a wide variety of crop straws. It also delivers excellent shredding results for high-fiber grasses. Since straw processing involves multiple stages, we offer shredders with different capacities to handle the entire workflow.
shredder Applications
Thanks to its outstanding performance, this crusher is suitable for a wide range of applications. It can serve various projects requiring the processing of agricultural waste, including feed production, crop straw crushing, and biomass pellet processing.
Comprehensive Service
Alongside the paddy straw shredder machine and complete shredding process configurations, we also offer other processing systems. These include drum dryers, coolers, screeners and baling scales. We are committed to providing you with the ideal production solution.
Crop Straw Shredding
This equipment is suitable for various straw shredding applications. Whether you need to produce fermented feed or recycle resources, it delivers optimal shredding results.
Straw Fuel Pelletizing
Its most common application is in pellet production lines. The 3–5 mm raw material produced by this machine meets ideal pelletizing conditions, improving pellet formation rates.
Animal Feed Production
Through its processing, rice straw, forage can be ground into a fine powder suitable for feed production. This meets the requirements for pelletizing or fermentation, thereby improving production efficiency.
Global CASES
As an advanced industrial shredder, this equipment has been exported to numerous countries and regions worldwide, including the United States, Brazil, Kenya, and South Africa, delivering a superior production experience to our customers. Below are some project case studies featuring this equipment. These examples will give you further insight into our solutions.

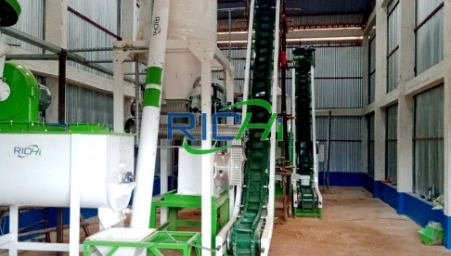

3-4 T/H rice straw shredder machine for sale in Vietnam
Our Vietnamese client required a straw shredder for fermenting ruminant feed. We provided customized equipment capable of fine shredding. This significantly improved fermentation efficiency and preserved the feed’s nutritional content.

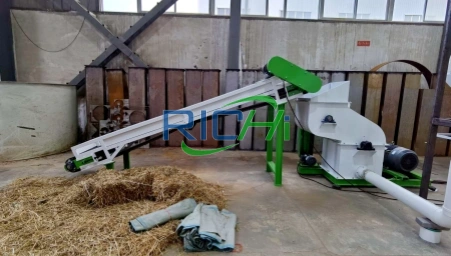

2-3 T/H Paddy Straw Shredder Machine for Sale in South Africa

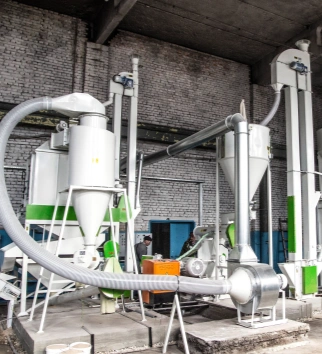

This project involves a straw feed pellet production line. The raw materials used are rice straw and wheat straw. The shredder utilizes belt conveyors for both feeding and discharging. The production line also includes a rice straw pelletizer and other equipment.
3-4 T/H paddy straw shredder machine for sale in Poland
The client needed to produce high-quality straw feed pellets for sale. The product is primarily used for ruminants. Therefore, there are strict requirements for pellet size. We provided a shredding section and a pelletizing system that perfectly met these needs.

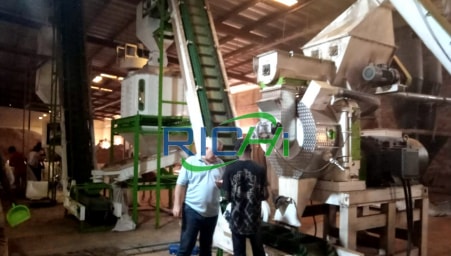

3-4 T/H Straw Shredding Machine for Sale in Brazil
The customer requires a high-efficiency pellet production line for fuel pellets. The raw materials are sugarcane bagasse and wheat straw. For enhanced production efficiency, it includes a sugarcane bagasse pellet machine and multiple crushing machines.

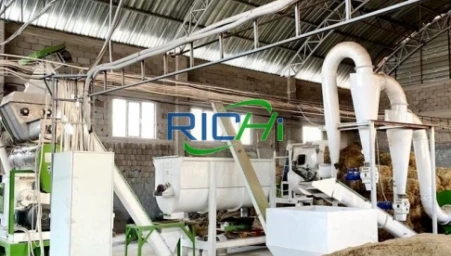

1-2 T/H paddy straw cutter for sale in Pakistan
This project aims to produce pellet feed for cattle and sheep. Given the daily production need, this shredder has no forced feeding mechanism. Combined with other pellet equipment, this project has helped the client reduce costs by 30%.

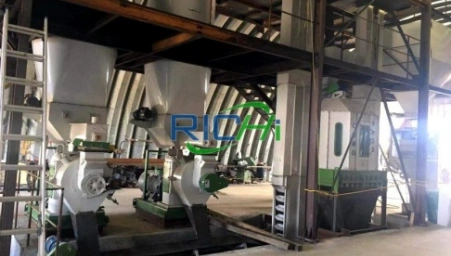

5-6 T/H Straw Pellet Plant Project in the USA
This project is for a large-scale biomass pellet plant. In addition to a rice straw shredder machine with a forced feeding mechanism, the equipment solution includes a bale breaker, dryer, straw pellet machine, and other process equipment.
Service Programs
Personalized Services
About the paddy straw shredder machine, we provide a range of specialized services. Through a combination of pre-sales and after-sales support, both online and offline, we ensure you have the best possible production experience.
Fast Shipping
We have set up a dedicated shipping system. Each shredder is shipped directly from the factory, which significantly reduces transit time.
Installation Guidance
Each shipment includes a specialized user manual and video tutorials, which help you quickly master the equipment.
Free Consultation
We offer free equipment consultation. Tell us your target production capacity and actual crushing requirements, for tailored solutions and quotations.
Long-Term Warranty
Each rice straw shredding machine comes with a one-year warranty, ensuring prompt and effective resolution for any quality issues.
Customized Solutions
For specialized materials and sizing needs, we deliver bespoke equipment customization to ensure optimal production outcomes.
Spare Parts Supply
We have established a global spare parts network system. Leveraging a national warehouse system, it enables rapid component delivery to minimize downtime risks.
Frequently Asked Questions
We have compiled a list of frequently asked questions about this rice straw shredder, which should help you to better understand the product. Drawing on years of experience in customer service, we are here to answer any questions you may have. Please feel free to contact us at any time, if you would like more information about this equipment.
Can straw be pelletized directly after being crushed by this machine?
+
This machine is a straw-specific crusher, which meets the crushing requirements prior to pelletization. The standard particle size for straw used in pelletization is 3–5 mm, while this machine produces particles ranging from 0.5 to 20 mm. Additionally, for large bales of straw, a bale breaker can perform preliminary bale breaking. The particle size of the material after bale breaking and grinding is 20–30 mm.
In addition to the degree of shredding, the raw material for pelletizing must also have the appropriate moisture content. The ideal moisture range is between 15% and 18%. Rice straw exceeding this range requires a drying system. We also provide high-efficiency drum dryers for pellet production lines.
How does this paddy straw shredder machine differ from a standard shredder?
+
Traditional shredders are typically general-purpose machines that have low output when processing rice straw and are prone to clogging. In contrast, this machine is specifically designed for high-fiber materials, such as forage and crop straw. It features an enlarged chamber capacity, an anti-tangling system, and a robust blade structure. As a result, it offers higher production efficiency and superior shredding performance.
Can we provide a complete rice straw pellet production line?
+
Absolutely. As your professional pellet equipment supplier, we offer complete pellet production line equipment. It accommodates rice straw pellet production ranging from 0.5 to 40 T/H. The system handles everything from large-sized bale materials to high-quality pellet packaging. The basic process stages include crushing, drying, mixing, pelletizing, cooling, screening, and packaging. Depending on your specific requirements, we can provide a customized solution. (View YouTube)
Can the particle size produced by this paddy straw shredder machine vary?
+
We offer a range of adjustable particle sizes, from 0.5 to 20 mm. We also provide custom screens tailored to your production needs. Replacing the screens with different mesh sizes allows you to meet various output specifications and enhance the production efficiency of your rice straw feed pelletizer or straw fuel pellet mill.
