Grass Pellet Production Line
We offer professional grass pellet production lines that can handle diverse raw materials and reduce costs. The high-quality pellets produced by this line serve as an ideal feed for ruminants. This line can maximise the nutritional content of raw materials. RICHI grass pellet production lines have gained widespread popularity across multiple industries.
CHOOSE PROFESSIONAL
GRASS PELLET PRODUCTION LINE MANUFACTURER
Our grass pellet production line boasts a scientifically organised and highly efficient production process. Compared to the production of animal feed and wood pellets, it requires fewer machines, significantly reducing your investment costs.
As an experienced manufacturer in the pellet machinery industry, we offer a full range of biomass pellet production line equipment. At RICHI Machinery, you can choose the grass pellet production line that best meets your needs.
We offer a range of grass pellet production solutions, including standard production lines and turnkey projects. We also provide customised solutions. Whatever your chosen output capacity or raw material composition, our equipment delivers optimal grass pellets. These production lines can process various types of fresh or dry grass into pellets ranging from 4 to 12 mm in diameter. Choose RICHI Machinery for effortless grass pellet production.

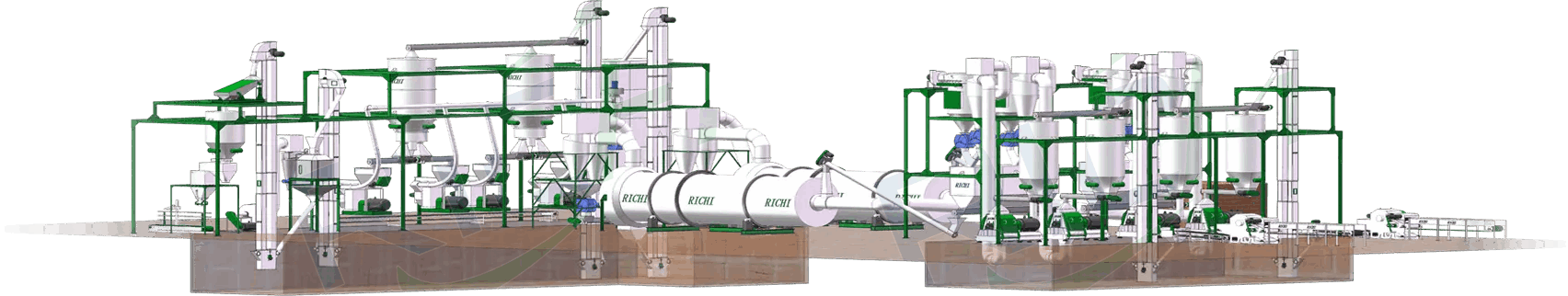

Complete process flow
We can also customize solutions tailored to your needs.
Crushing
Drying
Pelletizing
Cooling
Screening
Packaging
Applications of Grass Pellet Production Line
Our grass pellet production lines have a wide range of applications, capable of processing various grass materials into pellets. Suitable raw materials commonly include alfalfa, hops, hay and reed grass. All your grass pellet raw materials can be accommodated by our production line.
Canada 8T/H Alfalfa Pellet Project
Canada has an abundance of alfalfa, making it ideal for producing animal feed.
Our grass pellet production line preserves the nutritional content of alfalfa while improving the palatability and digestibility of feed pellets. Standard alfalfa pellets measure 6–8 mm in diameter. However, our equipment enables the production of finer pellets at a diameter of 4–5 mm.
This production line can process alfalfa in various textures and is particularly well-suited to producing feed pellets for ruminants.
Fresh Alfalfa
Semi-Dry Alfalfa
Alfalfa Hay Bales
Alfalfa Hay Powder
USA 3-4 T/H Hemp Pellet Project
Hemp is an ideal raw material for animal feed. The developed state of agriculture and animal husbandry in the United States provides an abundant supply of raw materials and a strong market for hemp pellets.
This production line can blend hemp with other grains to form pellets. The resulting hemp pellets have excellent gelatinisation properties, which enhance palatability and digestibility.
Regardless of the application, our grass pellet production line achieves optimal results.
Hemp Hay
Hemp Trimmings
Hemp Powder
Hemp Straw
Germany 1-2 T/H Reed Grass Pellet Project
In Germany, reed grass pellets are primarily used for producing energy pellets. Our production line not only makes highly nutritious reed grass feed, but also meets the requirements for producing high-quality fuel.
The final pellets have a compact structure and consistent quality, making them easy to transport and store while providing investors with superior economic returns.
This production line can process both fresh reed grass and wilted hay equally effectively. All the equipment is highly automated and user-friendly, enabling long-term, high-efficiency production.
Fresh Reed Hay
Reed Grass Powder
Reed Stalks
Reed Roots
Australia 5-6 T/H Oat Grass Pellet Project
This grass pellet production line is designed to produce high-quality oat grass pellets for animal feed. Through optimal temperature and compression ratios, the pelletizer preserves the raw material’s rich protein and vitamin content.
The line is equipped with efficient drying and grinding equipment and can process oat grass raw materials of varying textures and moisture levels.
Fully automated packaging equipment ensures strict adherence to standard specifications. Both the quality and storage of the pellets meet elevated market standards.
Fresh Oat Hay
Dried Oat Hay
Oat Hay Bales
Oat Hay Powder
How Does Grass Pellet Production Line Work?
The production process of grass pellets involves several stages, including raw material pretreatment, mixing and pelletizing, cooling, screening, and packaging. The equipment and specific operations for each stage require adjustments based on actual conditions. RICHI offer professional grass pellet production line equipment, ensuring seamless operation throughout the entire production process.
01
Crushing Section
This stage is for raw materials that do not meet pelletisation requirements. For instance, high-fibre grass and straw materials are not suitable for direct pelletisation. Instead, they must be crushed into fragments measuring between 3-5mm. If your raw material consists of rice husks, cottonseed hulls or other flake-like materials, crushing is not required.
02
Drying Section
This stage is designed to address situations where raw materials have high moisture content, such as fresh grasses. Increased moisture levels during the production process can result in pellets with a looser structure. The drying section ensures that the moisture content is at an ideal level for pelletisation. This can make them more easy to form and can improve overall output.
03
Pelletizing Section
This process is carried out in a grass pellet machine specifically designed for the purpose of mixing and pelletizing grass materials. It represents the core component of the entire grass pellet production line. Our grass pellet machine is engineered for optimal performance, delivering high production efficiency. It can produce grass pellets with a diameter of 4-12mm.
04
Cooling Section
Following the pelletisation process, the temperature of the grass pellets is elevated, which poses challenges when it comes to packaging and transportation. This section has been designed with an efficient cooling system that can rapidly cool the pellets to room temperature. It stabilises the pellet structure, and facilitates packaging and transportation.
05
Screening Section
At this stage of the process, the finished pellets are screened to ensure they meet the required diameter specifications. Undersized particles and powdery material are then removed, ready for the next stage of pelletisation. This approach is designed to optimise material cost savings while simultaneously increasing production output.
06

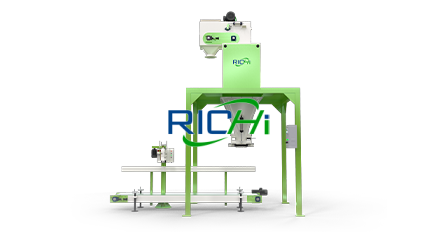

Packaging Section
This section represents the final stage of the production line, responsible for packaging the finished grass pellets. The company’s automated weighing and packaging system is highly efficient, ensuring that product packaging specifications are met while simultaneously reducing labour costs.
RICHI grass pellet production line is equipped with highly efficient, energy-saving and environmentally friendly equipment. It features a real-time monitoring system that ensures a high level of automation. The system has been developed to enable stable and efficient grass pellet production. Should you be interested, we can provide a variety of customisation services.

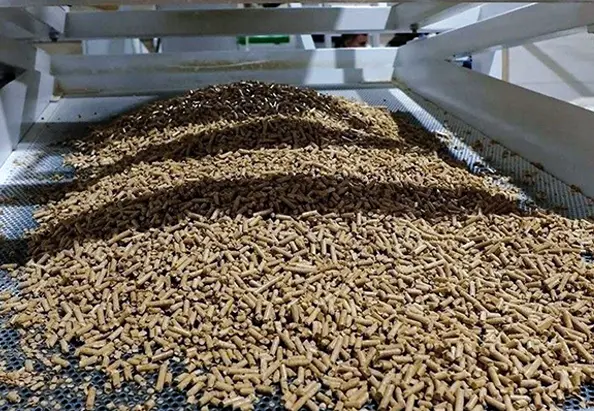

LOOK AT THE Grass PELLETS PRODUCED BY US
Please find below some examples of finished grass pellets. The images below depict the actual products manufactured by our grass pellet production line. These products feature uniform texture, smooth surfaces, and excellent gloss. Our pelletizing equipment enables the production of grass pellets of a consistently high calibre.

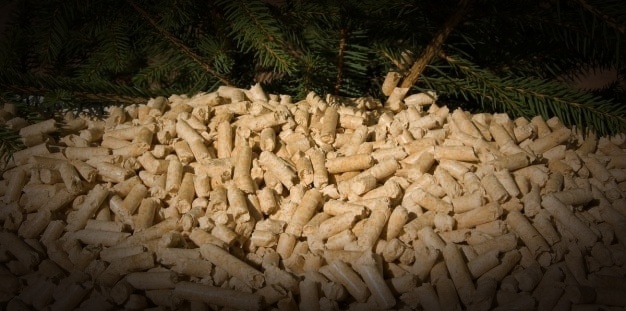

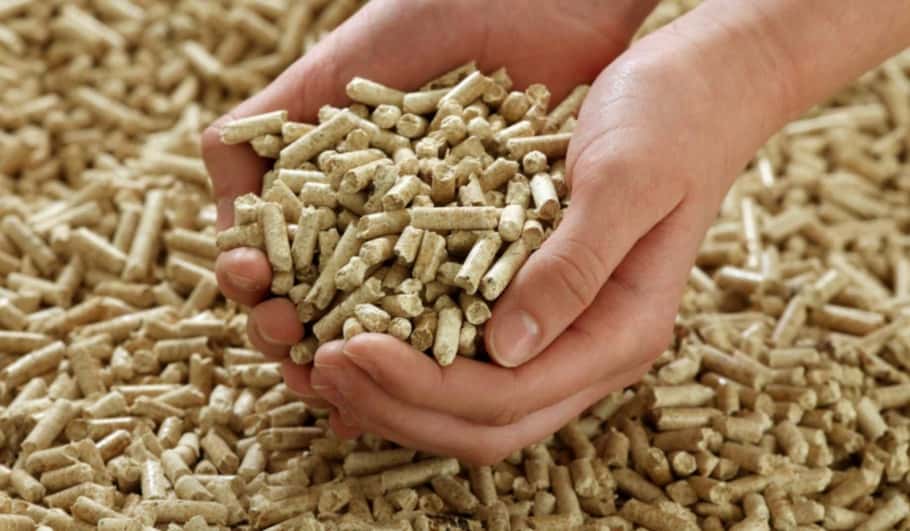

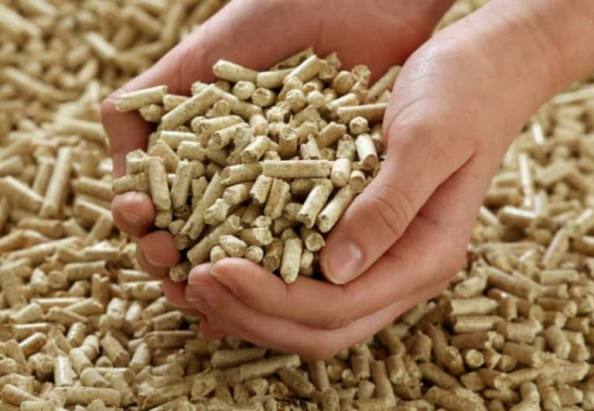

Grass pellets
Grass can be transformed into feed for ruminants by blending it with grains and straw-based materials. Our grass pellet production equipment features an optimal ring die compression ratio. When paired with a grain conditioning unit, it produces well-formed, nutritionally complete, and palatable grass pellets.
Reed grass pellets
Reed grass fibres are relatively coarse with long stems, resulting in pellets that tend to have rough surfaces and cracks. Our production line is equipped with high-intensity crushing equipment and efficient grass pellet machines. The finished pellets produced are of consistent quality, with smoother surfaces.
Elephant grass pellets
Elephant grass has a high moisture content, which makes it difficult to compress into shape. For this purpose, our drum dryer plays a crucial role. The raw material is dried to a moisture content of 15%-18% through its dual-cylinder design and spiral agitator blades. The resulting pellets are more compact.

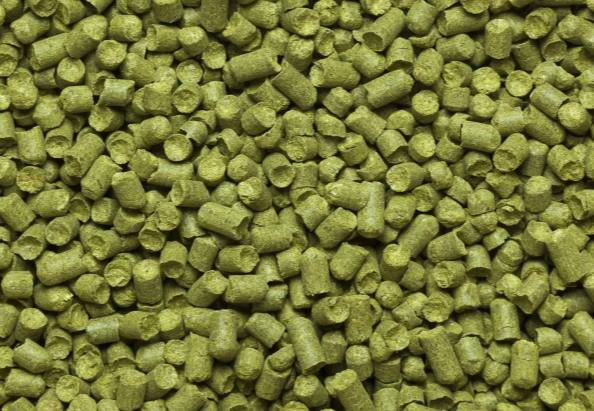

Alfalfa grass pellets
Alfalfa is relatively lightweight and prone to clumping. Our production line incorporates multiple anti-clumping devices, meticulously engineered to proactively avert material buildup and arching. This innovative process allows for the efficient conversion of loosely structured alfalfa into compact, uniform pellets.
Stable Grass Pellets Production
Our grass pellet production line ensures consistent output and pellet quality. Below are some of the most common materials used in our customers’ projects. Regardless of which grass pellet feedstock you choose, you can achieve stable grass pellet quality.
Alfalfa
Clover
Hemp
Hops
Peppermint
Hay
corn stalk
Straw
giant reed grass
Wheat
Furthermore, if you are producing grass-based feed pellets, it is imperative to ensure the cleanliness and safety of the raw materials. This is essential for achieving optimal production outcomes. Our professional formulators can develop specific, well-balanced pellet recipes tailored to your raw materials, production requirements, and local conditions. Should you require any further information or wish to discuss your requirements, please do not hesitate to contact us.
Customization of grass Pellet Production Line Capacity
Our grass pellet production lines are highly versatile, capable of meeting a wide range of output requirements. This ensures that we can provide you with the most optimal solution for your needs. Please find below our standard capacity options. Should you have any specialised capacity requirements, we are able to offer complete production line solutions with a range of output capacities from 0.5 to 100 T/H.
1-2T/H
Grass Pellet Production Line
This production line is perfectly suited to small to medium-scale hay pellet production. Its high flexibility and minimal space requirements make it an ideal solution for small farms, ranches and livestock operations. It facilitates low-cost investment with high-yield returns.
0.5-1.5T/H
2-3T/H
4-5T/H
5-6T/H
8-10T/H
10-12T/H
15-20T/H
20-30T/H
40-50T/H
Equipment on Grass Pellet Production Line

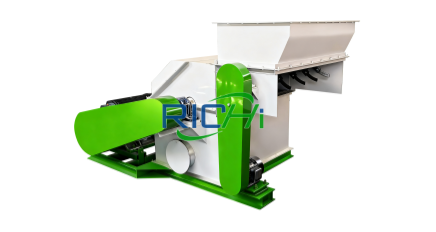

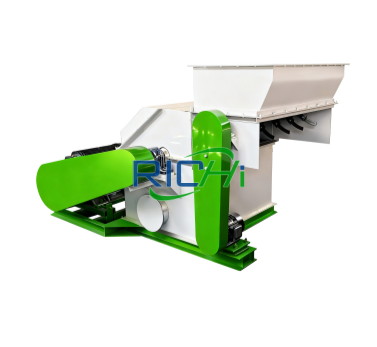

Grass Crusher
This is a dedicated grass crusher that can pulverise fibrous materials into a 3-5 mm grass powder, making it easy to pelletise. The machine is equipped with a forced-feeding mechanism that guides lightweight forage into the crushing chamber.

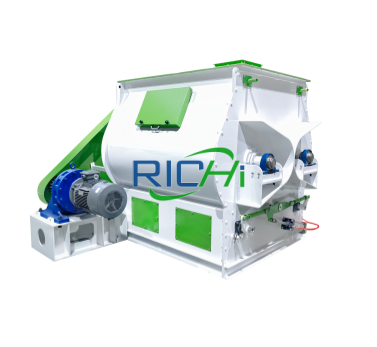

Raw Material Mixer
This high-power mixer is capable of thoroughly blending various types of grass or mixing them with grain materials. This process ensures that the finished pellets produced by the grass pellet machine have a more uniform texture.

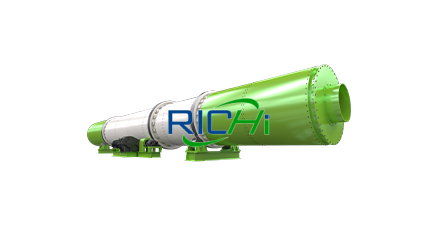

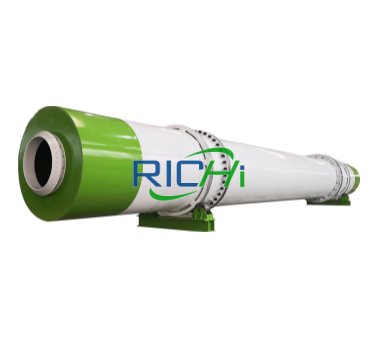

Drum Dryer
This equipment features a dual-cylinder design with inner and outer drums. It utilises air circulation to ensure more uniform drying. The outer cylinder is equipped with a thermometer and a variable frequency drive, enabling precise adjustment of the drying conditions as required.

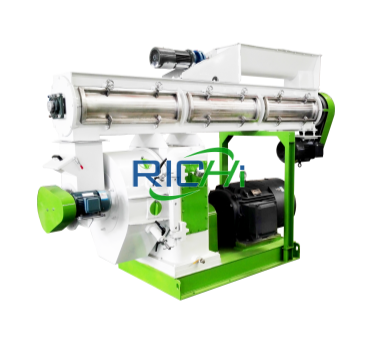

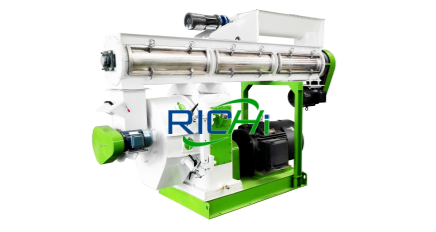

Grass Pellet Machine
The machine’s feed inlet is equipped with a break-arch feeder to prevent clumping and blockages in the feed material, thereby increasing output. The ring die is made of alloy steel 42CrMo for enhanced wear resistance. A conditioner can be added to better condition the material.

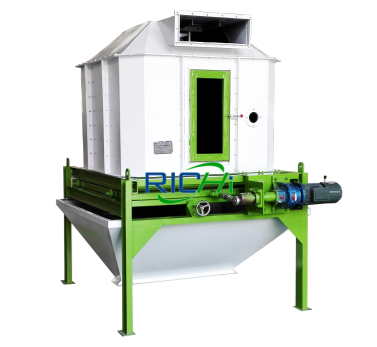

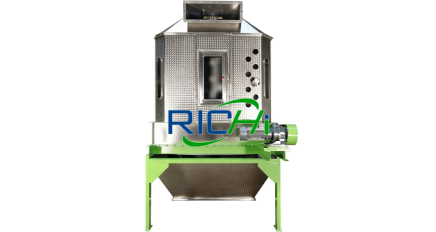

Counterflow Cooler
The grass counterflow cooler offers greater capacity. Its ring convection cooling design accelerates cooling speed, ensuring optimal particle structure and high output. This product is both energy-efficient and environmentally friendly, ensuring optimal cooling results at a minimal cost.

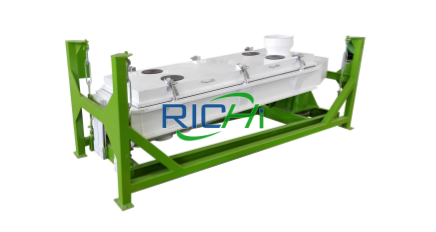

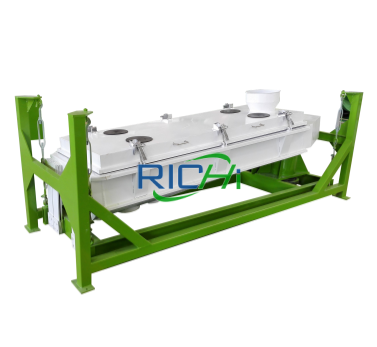

Vibrating Screen
It can screen qualified grass pellets through high-frequency vibration. This process facilitates secondary pelletisation of materials and is an efficient and energy-saving screening method. Vibrating screens are generally installed together with packaging scales to ensure coordinated operation.
These equipment plays a pivotal role in our production line, which accommodates diverse capacity requirements and enables flexible adjustments. They provide optimal production outcomes while featuring a robust structure that minimises production costs and reduces waste. In order to ensure the optimal performance of the primary equipment in the grass pellet production line, we have developed a range of complementary auxiliary equipment. These can be deployed flexibly across various production stages to effectively prevent grass accumulation, thereby helping to achieve optimal production efficiency.
Click to chat with us online
Global Grass Pellet Production Line CASES
With over three decades of specialised expertise, RICHI Machinery is able to deliver customised solutions that are tailored to client requirements. We provide production lines with a wide range of output capacities, meeting all your grass pellet manufacturing needs. Customer satisfaction remains our primary concern.
CUSTOMER REVIEWS
Following years of dedicated effort, our equipment has earned the favor of customers worldwide. Feedback from farms, ranches, livestock operations and grass pellet manufacturers worldwide has been overwhelmingly positive. The following words offer insights into the user experience with these systems.
Our farm produces a lot of hay every year, which has created a big problem for us. Since we started using this grass pellet machine, we can use the hay to make pellet fuel for our boiler system. This has saved us a lot of work and materials, and it works well for long periods of time.
Raw materials:
Self-produced agricultural waste such as hay and corn stalks.
At first, we were worried that the equipment might be too complicated to use. I really grateful for RICHI’s extra services in on-site equipment installation and training. You’re an absolute gem of a manufacturer! I’m delighted to tell you that our production is now up and running smoothly, and the product is selling really well, so we’re all doing really well financially.
Raw materials:
Alfalfa, hemp.
My previous production line required frequent maintenance, and the quality of the grass pellets produced was subpar. After visiting the RICHI plant, I decided to use their production line equipment. The equipment has been used for a long time and has worked perfectly. I hope more people can experience such highly efficient production equipment.
Raw materials:
Alfalfa, corn, grains
I am the owner of a cattle farm, and I can tell you that high feed demand can incur substantial expenses. I would like to express my gratitude to RICHI’s team for their design of this low-cost yet high-output production line. This has had a significant impact in reducing our animal husbandry costs.
Raw materials:
The client’s production raw materials include forage grass, crop straw, and grains.
We’re really thankful for RICHI’s custom solutions, which have let our facility handle a high-capacity production line with ease. After a friend recommended it, I went with RICHI’s grass pellet production line. The pellets produced by this equipment are impressive. We’re looking forward to working together again in future.
Raw materials:
Pasture grass, hemp, mixed with corn and bran.
Click to chat with us online
VIDEO TAKES YOU INTO
THE GRASS PELLET PRODUCTION LINE
To date, RICHI Machinery has successfully delivered premium pellet production solutions to over 150 countries and regions worldwide. With years of service experience, our products and after-sales support continue to earn customer recognition. Below are operational videos showcasing different types of grass pellet production lines, offering you a more intuitive understanding of our equipment.
Alfalfa Pellets In Production Line
Alfalfa Grass Pellet Production Line
4 T/H Grass Pellet Production Line
Frequently Asked Questions
RICHI grass pellet production line equipment has served thousands of customers worldwide. Through our interactions with clients, we’ve compiled a list of common concerns regarding raw materials, equipment, and services. If you share similar questions, you may find answers in the following text.
What are the requirements for raw materials in grass pellet production line?
+
Beyond efficient production line equipment, grass pellet manufacturing also demands attention to raw material moisture content, fineness, and structural hardness. Specific considerations include:
Primary raw materials for grass pellets encompass various dried grasses, fresh forage, hops, wheat straw, rice straw, cottonseed hulls, peanut shells, and other crop straws. Typically, raw material moisture should be maintained between 15% and 18%. At this moisture level, the material exhibits optimal binding properties and is most easily formed into pellets. This ensures both yield and quality of the final product.
Excessively high moisture content in raw materials leads to loose pellet structure and difficulty in forming. It also increases steam buildup within the grass pellet machine, increasing the risk of equipment clogging and shutdowns. In such cases, we recommend drying the raw materials using drying equipment. We offer specialized dryers to adjust raw material moisture to the optimal range.
In addition, since different raw materials possess varying fiber structures and hardness levels, their forming rates also differ. For harder materials, you can blend in softer components. Beyond this, our equipment allows you to adjust process parameters based on raw material characteristics and match the compression ratio of the die to ensure dense pellet formation.
What is the “die compression ratio” of a pellet machine? Why is it important?
+
Grass pellet machines compress and form pellets through dies, so die hole parameters directly affect the pellet formation quality. The die compression ratio typically refers to the ratio of die hole length to diameter.
If the compression ratio is mismatched with your raw material, the material will not undergo sufficient compression force and duration within the die. Therefore, the resulting grass pellets will have a loose structure, low forming rate, and significantly reduced output.
However, our dies undergo meticulous design and can be adjusted according to your raw material, ensuring that equipment parameter issues will not affect your pellet production yield.
What are the advantages of using grass pellets as fuel?
+
Grass pellets are made from agricultural waste such as grasses and straw through processing. As they are derived from biomass, they represent a green, renewable energy source.
Traditional fuels are typically bulky, requiring significant storage space and posing challenges for transportation. However, biomass pellets are formed through high-temperature compression, resulting in a more stable structure that facilitates storage and transport.
Compared to traditional coal fuels, they deliver higher calorific value and burn more completely. Moreover, they produce fewer pollutants during combustion, reducing environmental pollution and aligning with eco-friendly policies. The use of biomass pellet fuels like grass pellets and wood pellets promotes the recycling of waste resources, yielding significant economic and environmental benefits.
Can we provide turnkey solutions for grass pellet production lines?
+
Absolutely. As a manufacturer in the pellet machinery industry, we not only supply high-efficiency grass pellet machines but also tailor comprehensive solutions to your specific needs. Delivering a fully operational production line significantly reduces your setup time and cost.
Through years of industry expertise, we’ve accumulated extensive service experience to deliver turnkey solutions for complete pellet production lines. This encompasses the entire process — from raw material pre-treatment, pelletizing, and cooling to screening and packaging. Additionally, we offer product design, equipment installation, and personnel training services.
What advantages does our equipment have over other brands on the market?
+
First, as a professional pellet equipment manufacturer, RICHI Machinery has obtained multiple international standard certifications. These include EU CE certification, German TUV certification, Swiss SGS certification, Russian RTN certification, French BV certification, ISO 9001 Quality Management System certification, and 23 product patent certificates. These certification systems ensure our products meet international standards, providing exceptional support for your production.
Second, all our grass pellet production line equipment is designed and tested by a professional engineering team. This guarantees safety and high output. Our production lines also reduce energy costs, effectively lowering unit energy consumption by up to 15%.
Finally, we are not just your equipment supplier but your professional partner. We offer services including production line customization, factory layout planning, and on-site installation guidance. Our equipment comes with a one-year warranty and lifetime technical support. All to provide you with the most perfect service.
