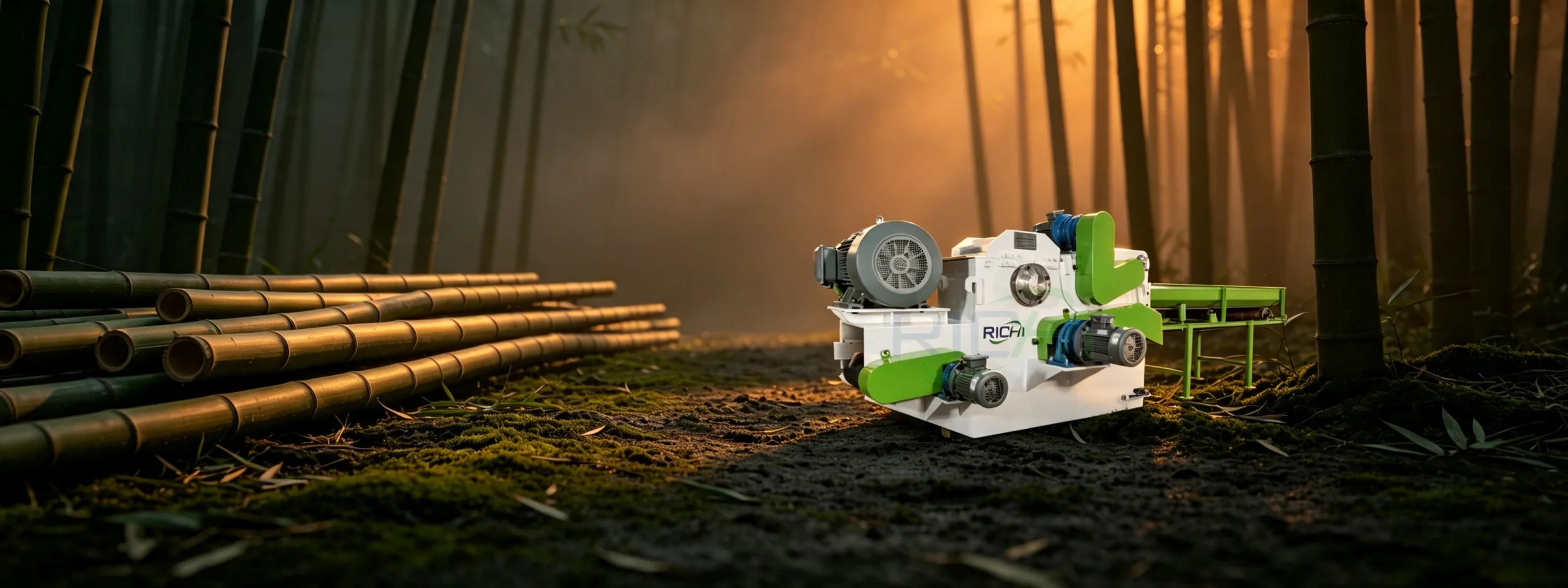

Bamboo Chipper Machine
The bamboo chipper machine is specifically designed for the preliminary processing of high-fiber bamboo raw materials, cutting them into chips approximately 3cm in size for use in pellet production lines or other applications. It can also process waste wood, logs, branches, and more. This equipment features smooth material feeding, powerful cutting capacity, excellent wear resistance, and high safety standards. We offer customized solutions and complete bamboo and wood chipping systems.
- Product Size: 20–40 mm
- Main motor power: 75–200 kW
bamboo chipper Operation
The videos above show the trial operation of the industrial bamboo chipper machine in wood pellet production line projects. As big-scale equipment, it has comprehensive processing capabilities and can handle both bamboo and wood fibers. In pellet production projects, the standard material size is 3-5mm. We also offer a bamboo hammer mill, which you can learn more about by watching the video.
Bamboo Chipper Machine Model Selection
This chipper is available in a variety of models and configurations to suit various biomass processing projects, including bamboo pellet production and the recycling of waste bamboo. In addition to the basic models listed below, we also offer customized screen sizes and other configuration options. Please feel free to contact us with your production requirements.
| Model | XPJ500x230 | XPJ680x300 | XPJ500*500 | XPJ850*500 | XPJ1200*500 | XPJ850*600 |
| Inlet Dimensions (mm) | 500*230 | 680*300 | 500*500 | 850*500 | 1200*500 | 850*600 |
| Feed Dimensions (mm) | φ230 | φ300 | φ500 | φ500 | φ500 | φ600 |
| Feed Motor Power (kW) | 4+3 | 4+3 | 4+3 | 4+3 | 5.5+4 | 7.5+7.5 |
| Main Motor Power (kW) | 75 | 90 | 110 | 132 | 200 | 200 |
| Hydraulic Pump Power (kW) | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 | 3 |
| Discharge Conveyor Power (kW) | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 |
| Number of Flying Knives | 2 | 2 | 6 | 10 | 14 | 14 |
| Number of Fixed Knives | 1 | 1 | 2 | 3 | 3 | 3 |
| Capacity (T/H) | 2-3 | 4-5 | 8-10 | 10-15 | 15-20 | 30-50 |
Bamboo chips processed by this machine can be used directly as fuel or further crushed and pelletized into fuel pellets. Because they are uniform in size, they can also serve as raw material for paper manufacturing and bamboo pulp production, and are easy to transport. The machine can also process bamboo waste, promoting resource recycling.
Structural Advantages
Bamboo possesses a high-fiber, hollow structure that can easily cause equipment blockages and wear. This bamboo chipping machine features a hydraulic feeding system capable of handling bamboo of various sizes. Its components are made of high-strength, wear-resistant materials, ensuring superior chipping performance and a longer service life. We can also provide customized designs to meet your specific production needs.
chipping Chamber
chipping Chamber
The slicing chamber housing is made of high-strength steel plate and is formed by welding. The main structure consists of two sets of cutting blades inside. Both the rotating blades and the stationary blades are made of 6GrW2Si steel. They have also undergone a quenching process, making them more efficient and wear-resistant when processing bamboo.
Feed Rollers
Feed Rollers
Two sets of feed rollers with different spacing have been designed for this section. Their spacing is automatically adjusted by a hydraulic system, allowing them to accommodate materials of various sizes and prevent slippage. They perform preliminary crushing of the bamboo, thereby improving processing efficiency.
Rotor
Rotor
The rotor is a critical component that ensures the stable operation of the bamboo chipper machine. We use professional dynamic balancing testers to guarantee the quality of the rotors. The rotors in every machine meet the minimum tolerance standards. This not only reduces operating noise but also extends the machine’s service life.
Hydraulic Device
Hydraulic Device
This is the hydraulic device used to adjust the spacing between the feed rollers. It can adjust the size of the feed opening based on the diameter of the bamboo or wood being fed, allowing the feed rollers to better conform to the material and ensuring smooth feeding.
Liquid Nitrogen Pressure Vessel
Liquid Nitrogen Pressure Vessel
This protective device has been installed to ensure the stable operation of the hydraulic feeding system. It helps divert excess fluid from the hydraulic cylinder, thereby preventing pressure overload and ensuring safe operation of the equipment.
Motor
Motor
The main motor of the bamboo wood chipper is a Siemens industrial-grade motor, which provides stable operating power. In addition, auxiliary motors are installed at key locations—such as the feed inlet, discharge outlet, and hydraulic auxiliary systems—to ensure smooth operation of the entire machine.
What raw materials can it process?
This bamboo chipper machine can process not only bamboo poles, logs, and branches, but also a variety of forestry processing waste and scrap materials. It accommodates biomass raw materials with diameters ranging from 23 cm to 60 cm, chipping them into pieces measuring 2–4 cm. Chipping specifications vary depending on the application. We also offer hammer mills, multi-purpose chippers, and other bamboo crushers. Please let us know your raw material processing needs.
Global CASES
We supply crushers for biomass processing worldwide. Our bamboo crushers have delivered high-quality project services to regions such as India, Brazil, and the Philippines. Below are some global cases featuring this equipment. Below are some global cases featuring this equipment, including projects for pellet fuel processing, waste-to-energy recovery, and bamboo product processing. We provide optimal configuration solutions tailored to our customers’ production needs.

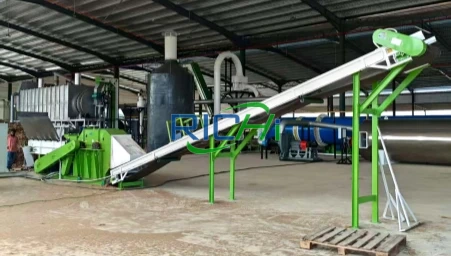

3–4 T/H Bamboo Chipping Machine for Sale to Vietnam
This is a chipping machine project for a bamboo furniture factory. The raw materials include bamboo processing offcuts and irregularly shaped bamboo blocks. The processed bamboo chips can be used for boiler combustion. Additionally, the customer uses this equipment to process some woodworking waste.

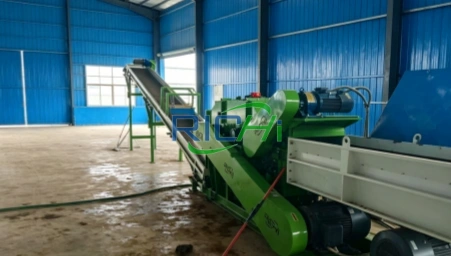

8 T/H Bamboo Chipper Machine for Sale to India
The raw materials for this project include bamboo stalks, bamboo branches, and bamboo waste. The customer wishes to process them into bamboo chips to supply nearby factories as fuel. The chips will measure 30–40 mm and can be used directly for combustion or further processed into pellets after finer crushing.

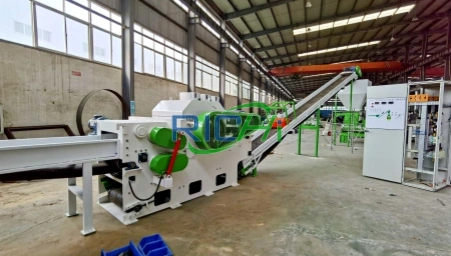

10 T/H Industrial Bamboo Chipper for Sale To Brazil
The customer has abundant supplies of wood and bamboo raw materials. They are irregular in size, which makes large-scale utilization difficult. We supplied a large-scale chipper for them. It can process bamboo, eucalyptus wood, and other biomass materials. These products are used to generate additional revenue.

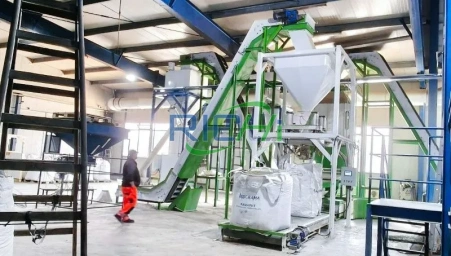

3–4 T/H Bamboo Chipper Machine for Sale Indonesia
We provided the customer with a comprehensive biomass pellet processing solution. The project’s raw materials include bamboo, wood, palm fiber, rice husks, and more. The customer also selected a mixer to blend the chipped material evenly before pelletizing. This ensures a more uniform pellet texture.

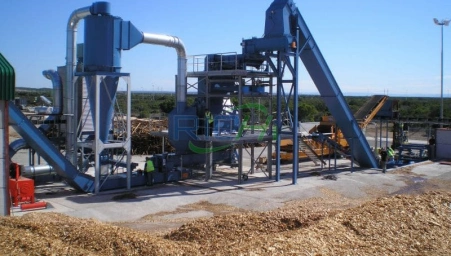

5–6 T/H Bamboo Crusher for Sale to Philippines
Due to the region’s abundant bamboo resources and demand for biomass energy, the client selected this customized bamboo pellet production line. It includes a bamboo crusher, bamboo pellet machine, pellet cooling machine, and packaging system. The final product is fuel pellets measuring 6–8 mm.

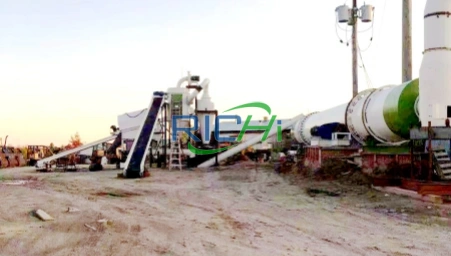

2–3 T/H Bamboo Wood Chipper for Sale to Colombia
The materials includes bamboo, coffee husks, and wood. Beyond wood pellet machine, we also provided wood crusher machine and sawdust dryer machine. The crusher produces chips of approximately 3 mm in size. This system can process mixed materials to produce densely pellet fuel with a high calorific value.
Applications of bamboo Chipper
The most common applications for this equipment include pre-processing for bamboo pellet production, recycling of waste bamboo, and biomass fuel processing. We offer a variety of crushing solutions tailored to different application needs.
Complete bamboo Crushing System
For biomass pellet plant manufacturers, we provide complete crushing line configurations. These can crush bamboo, wood, and other materials of various sizes into a 3–5 mm powder suitable for pelletizing. To facilitate continuous production, dust collection and conveying systems can also be integrated.
Bamboo Pellet Processing
The complete biomass pellet manufacturing process includes crushing, drying, pelletizing, cooling, screening, and packaging. We provide customized production solutions.

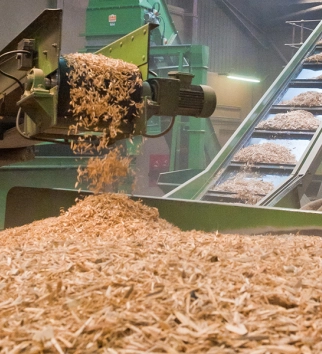

Bamboo Waste Processing
This bamboo chipper machine can be used in the bamboo products processing industry—such as bamboo furniture factories—to help process waste materials for resource recovery.
Biomass Fuel Processing
Chipped bamboo can be used directly as fuel for industrial boilers, heating systems, and other applications. Our bamboo crushing machine can process a variety of biomass fuels.
Service Programs
Personalized Services
About the bamboo chipper machine, we provide a range of specialized services. Through a combination of pre-sales and after-sales support, both online and offline, we ensure you have the best possible production experience.
Fast Shipping
We have set up a dedicated shipping system. Each chipper is shipped directly from the factory, which significantly reduces transit time.
Installation Guidance
Each shipment includes a specialized user manual and video tutorials, which help you quickly master the equipment.
Free Consultation
We offer free equipment consultation. Tell us your target production capacity and actual drying requirements, for tailored solutions and quotations.
Long-Term Warranty
Each bamboo crushing machine comes with a one-year warranty, ensuring prompt and effective resolution for any quality issues.
Customized Solutions
For specialized materials and sizing needs, we deliver bespoke equipment customization to ensure optimal production outcomes.
Spare Parts Supply
We have established a global spare parts network system. Leveraging a national warehouse system, it enables rapid component delivery to minimize downtime risks.
Frequently Asked Questions
Below are frequently asked questions about this equipment, based on our actual customer service experience. The choice of equipment has a significant impact on long-term production results, and we can provide you with free consultation on solutions and technical support. Please feel free to contact us to receive your customized production plan.
Does bamboo must be chipped before being crushed?
+
Bamboo is both high in fiber and hard, making it difficult to crush directly. However, we offer a multifunctional wood chipper that can directly crush whole bamboo stalks into bamboo chips. It also supports screen replacement, with the final product size ranging from 0.5 to 30 mm. For large-scale applications, running a chipper and a crusher together can increase output per unit. Chips processed from bamboo can be used directly for fuel or further crushed into a finer powder. This combination offers greater flexibility.
What is the difference between a bamboo chipper and a bamboo shredder?
+
They produce different results. A chipper processes large-diameter bamboo into uniform chips. This is better suited for subsequent crushing to produce standardized bamboo pellets. A shredder, on the other hand, directly breaks bamboo down into irregular pieces of about 3 cm. These can be used directly for combustion or other recycling applications. They are generally not suitable for pelletizing projects.
What other biomass materials can a bamboo chipper machine process?
+
As an industrial bamboo crusher, it can process various bamboo materials, as well as similar high-fiber forestry waste. Examples include logs, branches, wood strips, palm fiber, empty fruit bunches, and more. Please note that this equipment is designed for preliminary crushing; if finer grinding is required, we recommend configuring a complete crushing system.
How do I choose the right bamboo chipper machine model?
+
We offer a variety of models with different production capacities; you can make an initial selection based on your required output per unit. Next, you’ll need to configure the appropriate screen mesh size according to your crushing requirements. Customizable options range from 20 to 40 mm. Please provide details about your raw materials and production capacity needs, and we will provide precise recommendations. (View YouTube)
